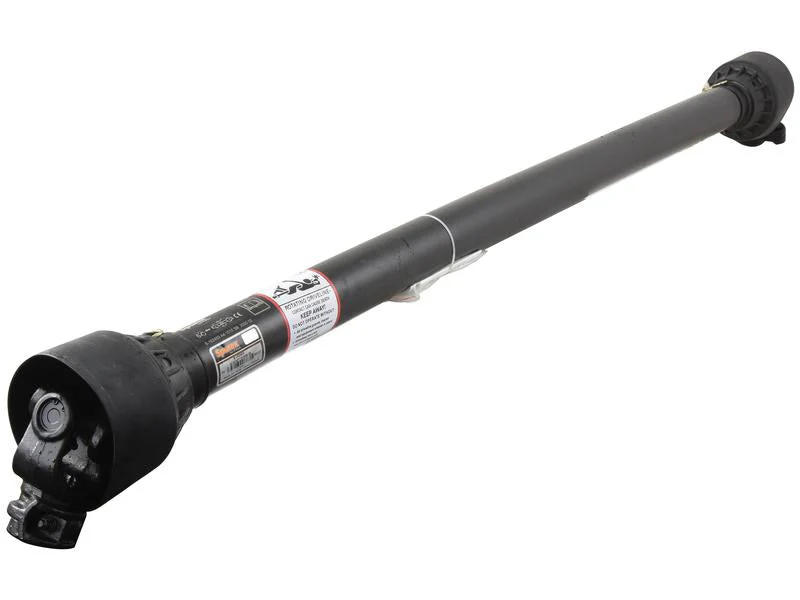

Sparex PTO Shaft - (Lz) Length: 1010mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1010mm and connects with a 1 3/8'' x 6 Spline Q.R. at the tractor end and a 1 3/8'' x 6 Spline Shear Bolt Limiter at the implement end.

Key Specifications:

• Brand: Sparex
• Alternative to: 128687
• Clutch Setting: 1400 Nm
• HP Rating @ 540 RPM: 35 HP (up to 54 HP)
• Kilowatt Power Rating @ 540 RPM: 26 kW
• Torque Range: 335 - 1240 Nm (Max Torque: 460 Nm)
• Total Closed Length: 48.2 inches (1225 mm)
• Tractor PTO Rotation: Clockwise
• Tube Profile: Triangle
• Universal Joint Dimensions: 27 x 74.5 mm
• Shearbolt Clutch Bolt Diameter: 8 mm
• Shearbolt Clutch Radius: 48 mm
• Italian Series: AB4/A4
• PTO Series: AB4/A4
• Tube Reference: 12507/12508
• Tariff Code: 8483908990

Related Products:

Explore our range of compatible products: 10608, 2448, 24814, 24815, 59605, 59636, 6048, 6100, 6101, 6157, 163811, 166692, 166693.

Upgrade your machinery with the reliable and efficient Sparex PTO Shaft. Perfect for various applications, this PTO shaft ensures seamless operation and enhanced performance.
