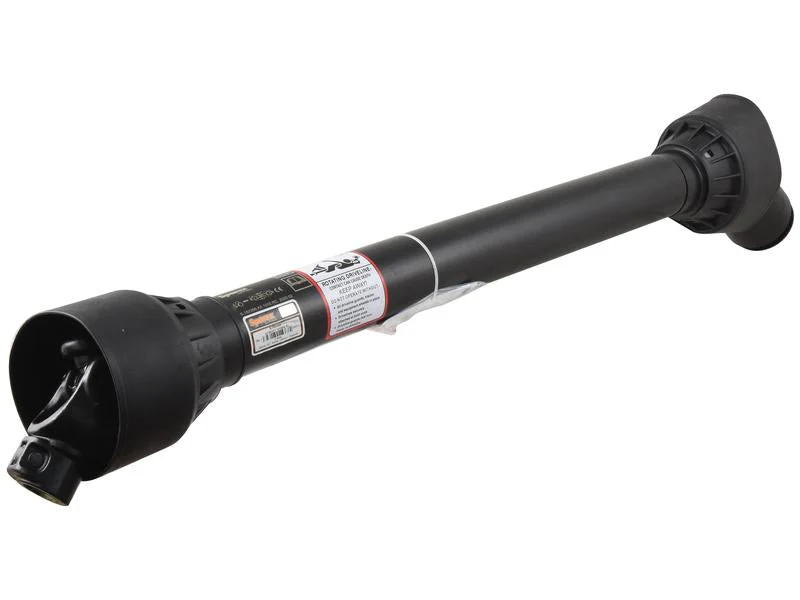

Sparex PTO Shaft - (Lz) Length: 1010mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1010mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release (Q.R.) to a 1 3/8'' x 6 Spline Ratchet Clutch.

Key Specifications:

• Brand: Sparex
• Alternative to: 128693
• Clutch Setting: 900 Nm
• HP Rating @ 540 RPM: 47 HP (up to 54 HP)
• Kilowatt Power Rating @ 540 RPM: 35 kW
• Torque Range: 335 - 1240 Nm (Max Torque: 620 Nm)
• Total Closed Length: 1285 mm
• Tube Profile: Triangle
• Type: 3 Row
• Universal Joint Dimensions: 30.2 x 79.4 mm
• Implement End: 1 3/8'' x 6 Spline Ratchet Clutch
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Italian Series: AB5/A5
• PTO Series: AB5/A5
• Tube Reference: 12509/12510
• Tariff Code: 8483908990

Related Products:

Explore our range of compatible products: 24816, 24839, 2497, 59609, 59637, 6110, 6111, 6118, 163813, 166692, 166693.

Upgrade your machinery with the reliable and efficient Sparex PTO Shaft. Perfect for various applications, this PTO shaft ensures smooth operation and enhanced performance.
