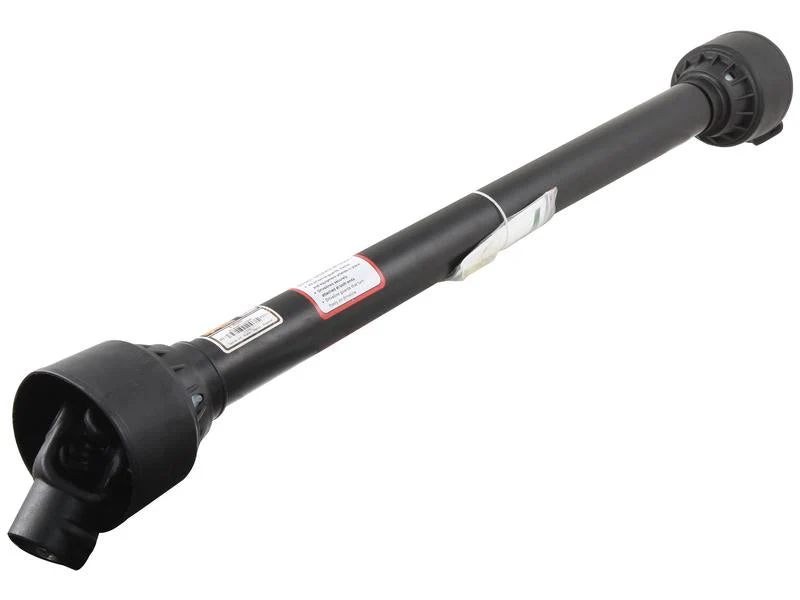

Sparex PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

Part Number: S.164280

The Sparex PTO Shaft is designed for optimal performance and durability, making it an essential component for your agricultural machinery. This PTO shaft is a reliable alternative to part numbers 6691 and 128679.

Key Specifications:

• Brand: Sparex
• HP Rating @ 540RPM: 30 HP
• HP Rating Range @ 540RPM: Up to 54 HP
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Italian Series: AB3/A3
• Kilowatt Power Rating @ 540RPM: 22 kW
• Lz Length: 1010 mm
• PTO Series: AB3/A3
• Torque: 335 - 1240 Nm (390 Nm nominal)
• Total Closed Length: 47.9 in (1216 mm)
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Tube Reference: 12507/12508
• Universal Joint Dimensions: 27 x 70 mm

Related Products:

• 10608
• 163811
• 166692
• 166693

Tariff Code: 8483908990

This PTO shaft is not associated with any specific OEM part number or particular make and model, ensuring versatility across various applications.

Upgrade your machinery with the Sparex PTO Shaft for enhanced performance and reliability in the field.
