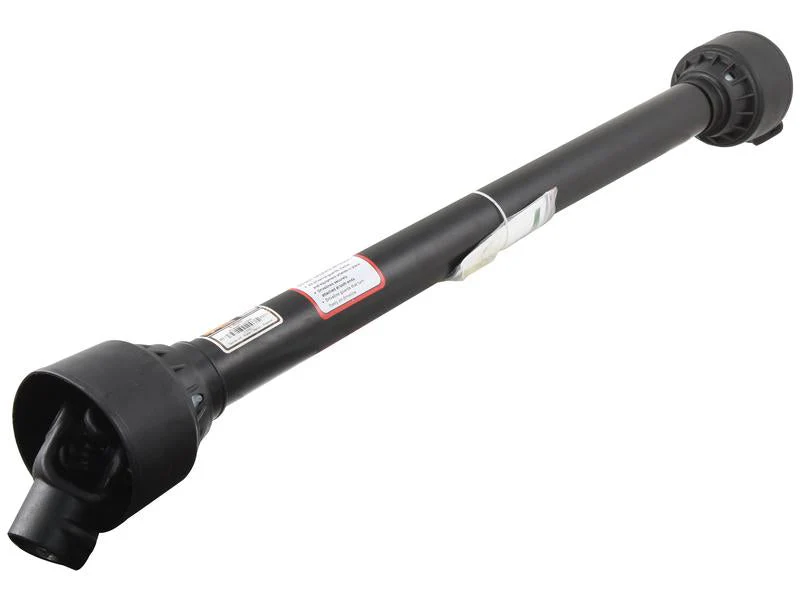

Sparex PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

Part Number: S.164262

The Sparex PTO Shaft is designed for optimal performance in agricultural applications, featuring a robust construction and reliable specifications. This PTO shaft is an excellent alternative to part number 128714 and is compatible with the German Series AW10/W2100.

Key Specifications:

• HP Rating @ 540RPM: 16 HP
• HP Rating Range @ 540RPM: Up to 54 HP
• Kilowatt Power Rating @ 540RPM: 12 kW
• Torque: 210 - 334 Nm
• Torque (Nm): 210 Nm
• Lz Length: 1010 mm
• Total Closed Length: 1193 mm
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Lemon
• Tube Ref: Ooa/Oa
• Universal Joint Dimensions: 22 x 54 mm
• PTO Series: AW10/W2100
• Related Products: 10607, 163811
• Tariff Code: 8483908990

This PTO shaft is not associated with any specific OEM part number, making it a versatile choice for various applications. Enhance your machinery's efficiency with the reliable performance of the Sparex PTO Shaft.
