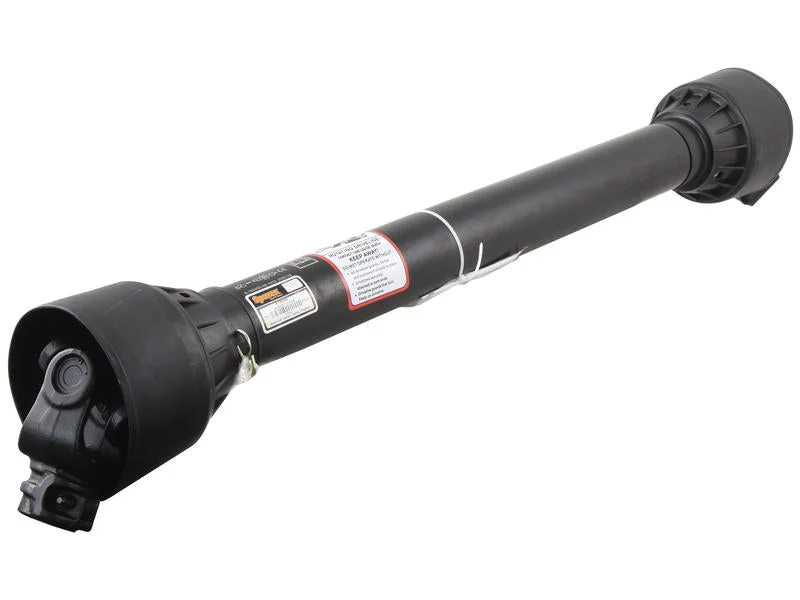

Sparex PTO Shaft - (Lz) Length: 1010mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1010mm and is equipped with 1 3/8'' x 6 Spline Q.R. connections on both ends, making it a versatile choice for various applications.

Key Specifications:

• Brand: Sparex
• HP Rating @ 540RPM: 64 HP
• HP Rating Range @ 540RPM: 55 to 119 HP
• Kilowatt Power Rating @ 540RPM: 47 kW
• Torque: 335 - 1240 Nm (830 Nm nominal)
• Total Closed Length: 49 inches (1244 mm)
• Tube Profile: Triangle
• Universal Joint Dimensions: 30.2 x 92 mm
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Italian Series: AB6/A6
• PTO Series: AB6/A6
• Tube Reference: 12509/12512
• Tariff Code: 8483908990

Compatibility:

This PTO shaft serves as an alternative to the following part numbers: 13712, 118009, 128698. It is not associated with any specific OEM part number or particular make and model, ensuring broad compatibility across various applications.

Related Products:

Explore additional options with related products including 2449, 24816, 24817, 59609, 59638, 6058, 6120, 6121, 163813, 166692, 166693.

Upgrade your machinery with the reliable and efficient Sparex PTO Shaft today!
