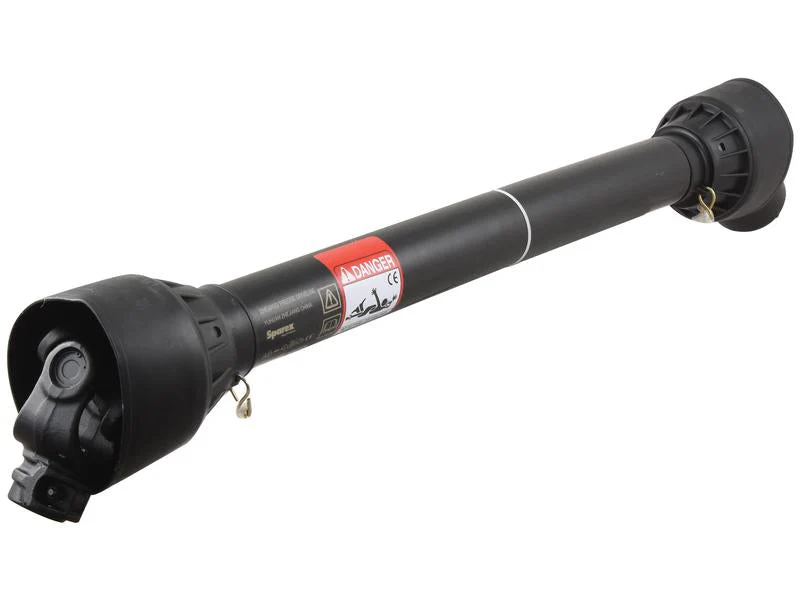

Sparex PTO Shaft - (Lz) Length: 1010mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1010mm and is equipped with a 1 3/8'' x 6 Spline Q.R. at the tractor end and a 1 3/8'' x 6 Spline Overrunning Clutch (Clockwise) at the implement end.

Key Specifications:

• Brand: Sparex
• HP Rating @ 540RPM: 64 HP
• HP Rating Range @ 540RPM: 55 to 119 HP
• Kilowatt Power Rating @ 540RPM: 47 kW
• Torque: 335 - 1240 Nm (830 Nm nominal)
• Total Closed Length: 51 inches (1295 mm)
• Tube Profile: Triangle
• Universal Joint Dimensions: 30.2 x 92 mm
• Tractor PTO Rotation: Clockwise
• Italian Series: AB6/A6
• PTO Series: AB6/A6
• Tube Reference: 12509/12512
• Tariff Code: 8483908990

Compatibility:

This PTO shaft is an alternative to part number 128702 and is compatible with various related products including 2449, 24816, 24817, 59609, 59638, 6055, 6058, 6120, 6121, 163813, 166692, 166693.

Product Information:

Product SKU: SP-162399

OEM Fitment Information: This product is not associated with any particular OEM part number.

Machine Fitment Information: This product is not associated with any particular make or model.

Upgrade your machinery with the reliable and efficient Sparex PTO Shaft today!
