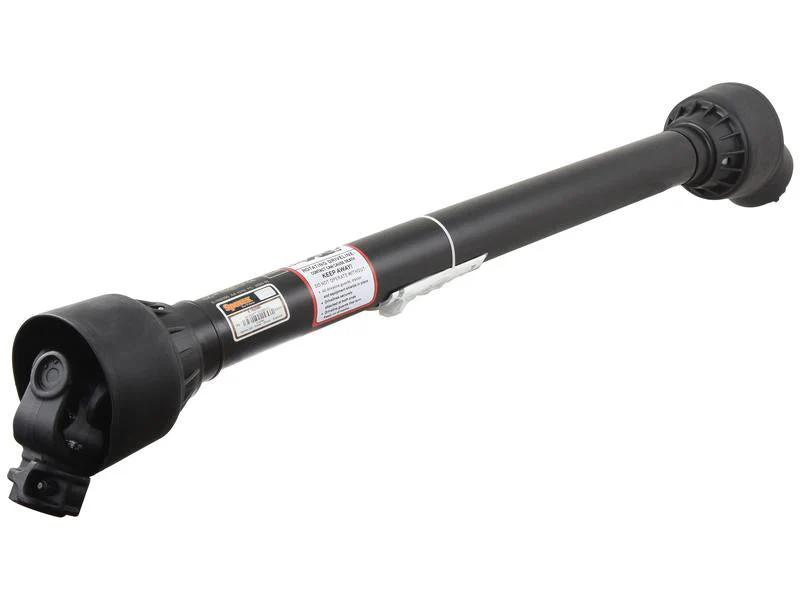

Sparex PTO Shaft - (Lz) Length: 1010mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1010mm and is equipped with a 1 3/8'' x 6 Spline Quick Release (Q.R.) at the tractor end and a 1 3/8'' x 6 Spline Overrunning Clutch (Clockwise) at the implement end.

Key Specifications:

• Brand: Sparex
• HP Rating @ 540RPM: 35 HP
• HP Rating Range @ 540RPM: Up to 54 HP
• Kilowatt Power Rating @ 540RPM: 26 kW
• Torque: 335 - 1240 Nm (460 Nm nominal)
• Total Closed Length: 49.4 inches (1256 mm)
• Tube Profile: Triangle
• Universal Joint Dimensions: 27 x 74.5 mm
• Tractor PTO Rotation: Clockwise
• Italian Series: AB4/A4
• PTO Series: AB4/A4
• Tube Reference: 12507/12508
• Tariff Code: 8483908990

Compatibility:

This PTO shaft serves as an alternative to part number 128686 and is compatible with various related products including 10608, 2448, 24814, 24815, 59605, 59636, 6045, 6048, 6100, 6101, 163811, 166692, 166693.

Product Information:

Supplier: Sparex

Product Type: PTO Shaft

Product SKU: SP-162395

OEM Fitment Information: This product is not associated with any particular OEM part number.

Machine Fitment Information: This product is not associated with any particular make or model.

Upgrade your agricultural equipment with the reliable and efficient Sparex PTO Shaft today!
