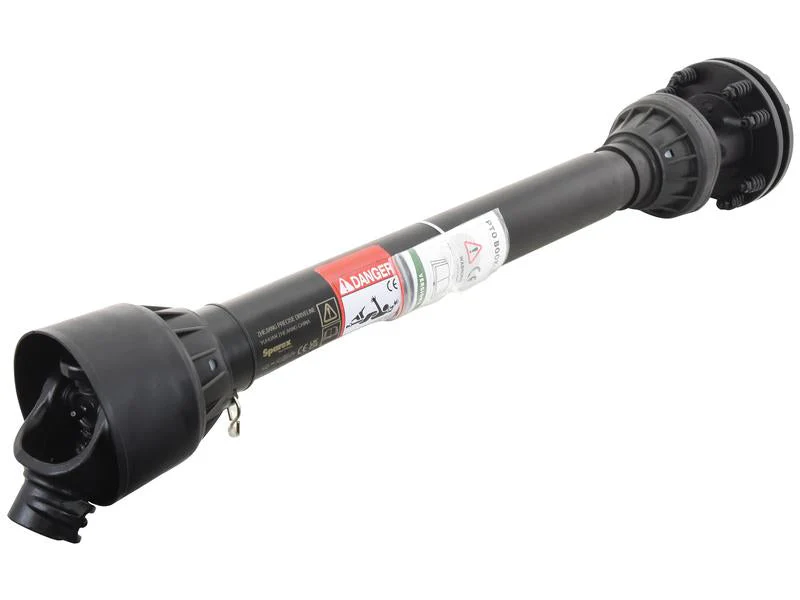

Sparex PTO Shaft - Length: 1010mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1010mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release (Q.R.) to a 1 3/8'' x 6 Spline Friction Disc Clutch.

Key Specifications:

• Brand: Sparex
• Clutch Setting: 1300 Nm
• HP Rating @ 540 RPM: 64 HP (Range: 55 to 119 HP)
• Kilowatt Power Rating @ 540 RPM: 47 kW
• Number of Discs: 2
• Torque: 335 - 1240 Nm (830 Nm nominal)
• Total Closed Length: 50.7 inches (1288 mm)
• Tube Profile: Triangle
• Universal Joint Dimensions: 30.2 x 92 mm
• Implement End: 1 3/8'' x 6 Spline Friction Disc Clutch
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Italian Series: AB6/A6
• PTO Series: AB6/A6
• Tube Reference: 12509/12512
• Tariff Code: 8483908990

Compatibility:

This PTO shaft serves as an alternative to part numbers 128703 and 128714. It is compatible with various applications within the Italian Series AB6/A6.

Related Products:

• 163813
• 166692
• 166693

Upgrade your machinery with the reliable and efficient Sparex PTO Shaft today!
