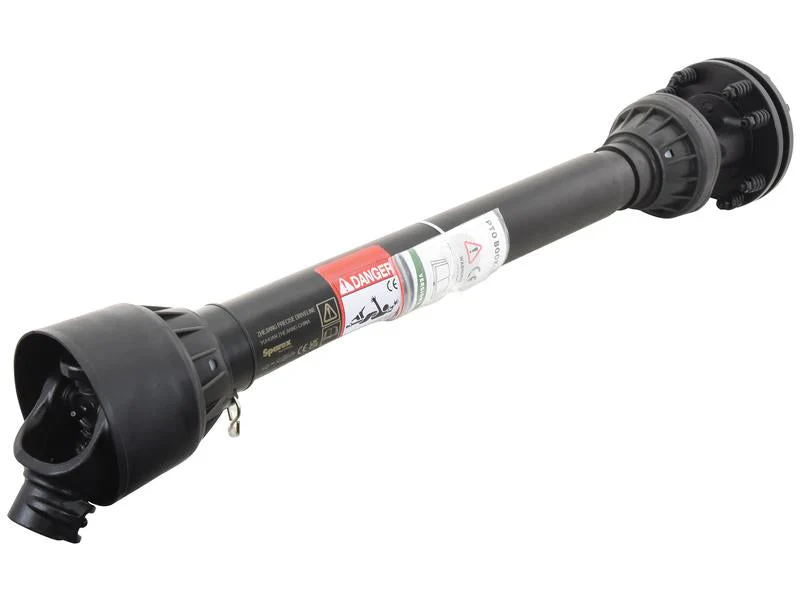

Sparex PTO Shaft - (Lz) Length: 1010mm

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a length of 1010mm and connects seamlessly from a 1 3/8'' x 6 Spline Quick Release (Q.R.) to a 1 3/8'' x 6 Spline Friction Disc Clutch.

Key Specifications:

• Brand: Sparex
• Clutch Setting: 1000 Nm
• HP Rating @ 540 RPM: 47 HP (up to 54 HP)
• Kilowatt Power Rating @ 540 RPM: 35 kW
• Implement End: 1 3/8'' x 6 Spline Friction Disc Clutch
• Italian Series: AB5/A5
• Number of Discs: 2
• PTO Series: AB5/A5
• Torque Range: 335 - 1240 Nm (Max Torque: 620 Nm)
• Total Closed Length: 1281 mm
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Tube Reference: 12509/12510
• Universal Joint Dimensions: 30.2 x 79.4 mm
• Tariff Code: 8483908990

Related Products:

• 163813
• 166692
• 166693

This Sparex PTO Shaft is engineered for reliability and efficiency, making it an essential component for your agricultural machinery. Upgrade your equipment with this robust PTO shaft, ensuring optimal power transfer and performance.

Product SKU: SP-164294

Note: This product is not associated with any particular OEM part number or specific make and model.
