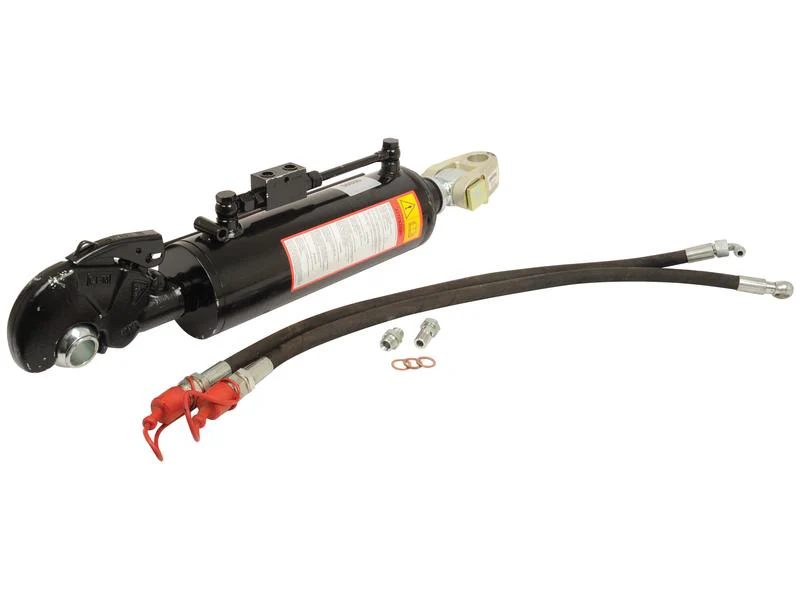

Introducing the Sparex Hydraulic Top Link (Cat. 35mm/4) designed for optimal performance and versatility. With a minimum length of 760mm and a maximum length of 995mm, this top link is perfect for a variety of agricultural applications. It comes complete with a hose set, chain & ball, and a marker label featuring a knuckle and pin for easy installation and use.

Product Specifications

• A (mm): 200
• Alternative to: 119711
• Brand: Sparex
• Category Implement End: 4
• Category Tractor End: 35mm
• Category: 35mm/4
• Check Valve Position: Top
• Contains: S.119711 x 1, S.119709 x 1, S.119705 x 1, S.118460 x 1
• Cylinder Bore (mm): 120
• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 18600
• Maximum Length (mm): 995
• Minimum Length (mm): 760
• Related Products: 33137, 33144, 33158, 39965, 39966, 39967, 39968, 118459, 118460, 119705, 119709, 164592
• Rod Diameter (mm): 50
• Suitable for Tractors up to: 400hp (294kW)
• Supplied with: Hose set, chain & ball, marker label with knuckle & pin
• Tariff Code: 8412212090
• Top Link Ball Category: 4/4
• Tractor End: Knuckle

Compatibility Information

This product is not associated with any particular make or model, making it a versatile choice for various applications.

Manufacture Information

This product is not associated with any specific OEM part number, ensuring broad compatibility across different machinery.
