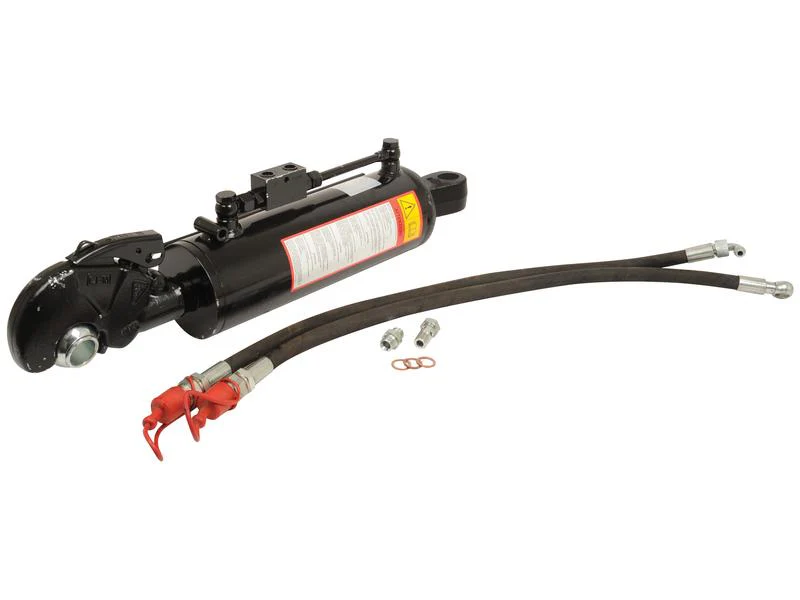

Introducing the Sparex Hydraulic Top Link, designed for optimal performance in agricultural applications. With a minimum length of 620mm and a maximum length of 905mm, this top link is versatile and adaptable to various implements. It comes complete with a hose set, chain & ball, and a marker label (without knuckle & pin). Please note that it requires a knuckle (options include S.56815 Ø20mm, S.10287 Ø25.4mm, S.10289 Ø28mm, S.10290 Ø30mm, S.10288 Ø32mm, or S.56817 Ø36mm) and a fixing pin (S.10292) for installation.

Product Specifications

• A (mm): 120
• Brand: Sparex
• Category Implement End: 2
• Category: -/2
• Check Valve Position: Top
• Cylinder Bore (mm): 80
• Implement End: Q.R CBM Hook
• Lift Capacity (kgs @ 180 bar): 6930
• Loop Option: 40
• Maximum Length (mm): 905
• Minimum Length (mm): 620
• Ram Stroke (mm): 285
• Related Products: 10287, 10288, 10289, 10290, 10292, 32255, 33008, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 56815, 56817, 148199
• Rod Diameter (mm): 40
• Suitable for Tractors up to: 180hp (135kW)
• Supplied With: Hose set, chain & ball, marker label without knuckle & pin. Requires knuckle and fixing pin.
• Tariff Code: 8412212090
• Thrust (kgs @ 180 bar): 9240

Suitable For Information

This product is not associated with any particular make or model.

Manufacture Information

This product is not associated with any particular OEM part number.
