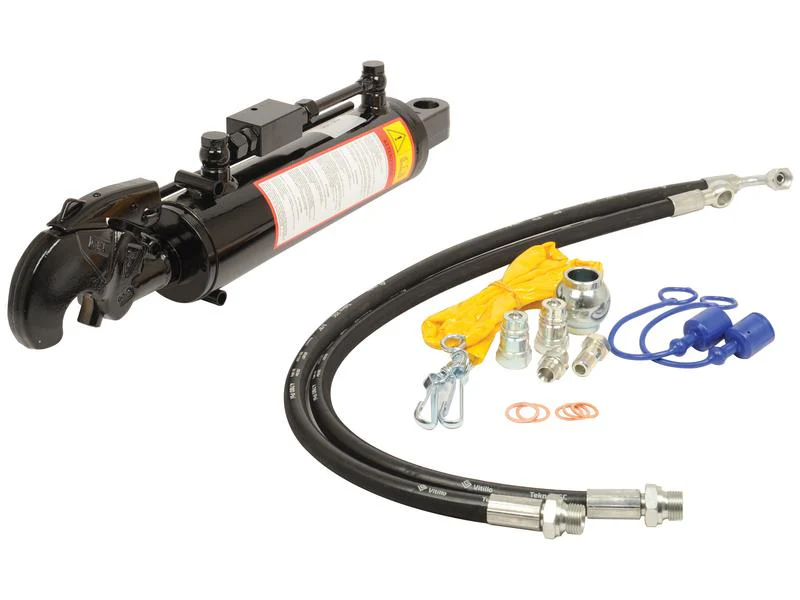

Introducing the Sparex Hydraulic Top Link, designed for optimal performance and versatility in agricultural applications. With a minimum length of 500mm and a maximum length of 665mm, this top link is perfect for a variety of tractor implements. It comes complete with a hose set, chain and ball, and a marker label, ensuring you have everything you need for installation. Please note that this product requires a knuckle (options include S.56815 Ø20mm, S.10287 Ø25.4mm, S.10289 Ø28mm, S.10290 Ø30mm, S.10288 Ø32mm, or S.56817 Ø36mm) and a fixing pin (S.10292) for full functionality.

Product Specifications

• Brand: Sparex
• Category Implement End: 2
• Category: -/2
• Check Valve Position: Top
• Cylinder Bore: 80mm
• Implement End: Q.R CBM Hook
• Lift Capacity @ 180 bar: 6930 kg
• Maximum Length: 665mm
• Minimum Length: 500mm
• Related Products: 10287, 10289, 10292, 32255, 33008, 33137, 33144, 33158, 33201, 39965, 39966, 39967, 39968, 56817, 148199
• Rod Diameter: 40mm
• Suitable for Tractors up to: 180hp (135kW)
• Supplied With: Hose set, chain & ball, marker label without knuckle & pin. Requires knuckle and fixing pin.
• Tariff Code: 8412212090
• Thrust @ 180 bar: 9240 kg

Compatibility Information

This product is not associated with any particular make or model, making it a versatile choice for various applications.

Manufacturer Information

This product is not linked to any specific OEM part number, ensuring broad compatibility across different systems.
