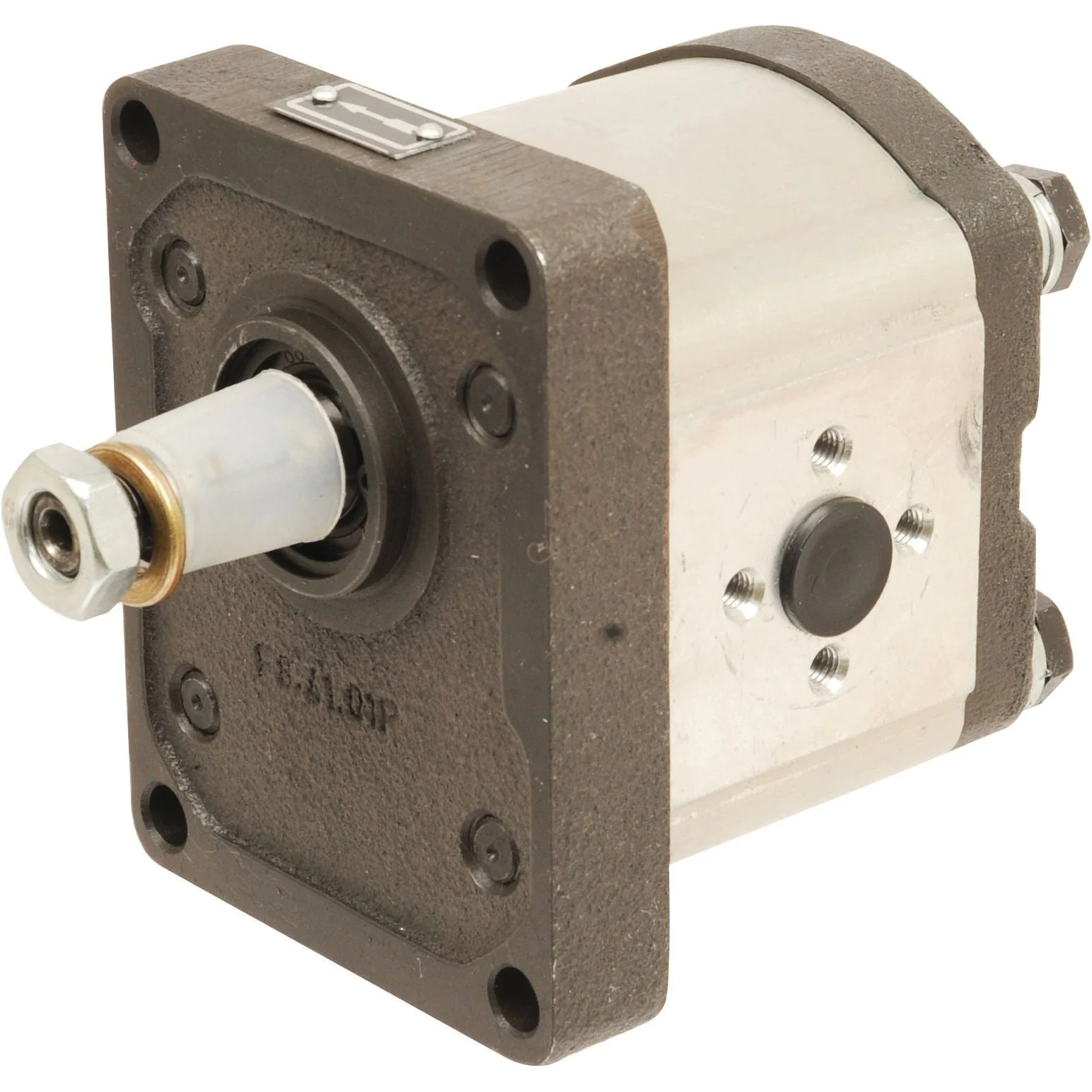

Single Hydraulic Pump - S.42750

Introducing the Single Hydraulic Pump - S.42750 by Sparex, a reliable and efficient solution for your hydraulic needs. This high-performance pump is designed to fit various agricultural machinery, ensuring optimal functionality and durability.

Product Specifications

• Brand: Sparex
• Diagram Specifications:
• A: 19mm
• B: 98mm
• C: 71mm
• D: 96mm
• E: 13.5mm
• F: 30mm
• G: M6
• H: 13.5mm
• I: 30mm
• J: M6
• Front Inlet Hole Fixing Hole Size: M6
• Front Inlet Hole Size: 30mm
• Front Outlet Hole Fixing Hole Size: 13.5mm
• Front Outlet Hole Size: 30mm
• Inner Max. GPM: 13.5
• Inner Max. LPM: 8.72
• Length: 33mm
• Lip Measurement: 98mm
• Maximum Pump Speed: 19 rpm
• Pump Rotation: 3000
• Pump Type: Anti-Clockwise
• Side Hole Spacing: Single Pump
• Tariff Code: 96
• Top Hole Spacing: 8413603190

Compatibility

This hydraulic pump is compatible with a range of machinery, including:

• Ford / New Holland: 4430
• Landini: 4530, 5530, 6030, 7500, 9060, 9880, C4500, C4830, C5500, C5830, CF5030, CF5830, CF6030, CF6060, LARGE 10000, LARGE 12500, LARGE 13000, LARGE 14500
• Massey Ferguson: 1007, 1014, 1024, 1114, 1134, 134, 134C, 154, 154C, 164, 174, 184, 194, 233, 234, 234C, 244CF, 253, 254, 254C, 263, 264, 264C, 273, 274S, 283, 284, 293, 294, 333, 353, 363, 364CF, 373, 377, 383, 383S, 387, 397, 397T, 440 XTRA BRAZILIAN

OEM Fitment Information

This pump is designed to fit the following OEM models:

• Landini: 1825210M91, 3546160M91, 3539858M91
• Massey Ferguson: 1825210M91, 3539858M91, 3546160M91

Upgrade your hydraulic system with the Single Hydraulic Pump - S.42750 from Sparex, engineered for performance and reliability.
