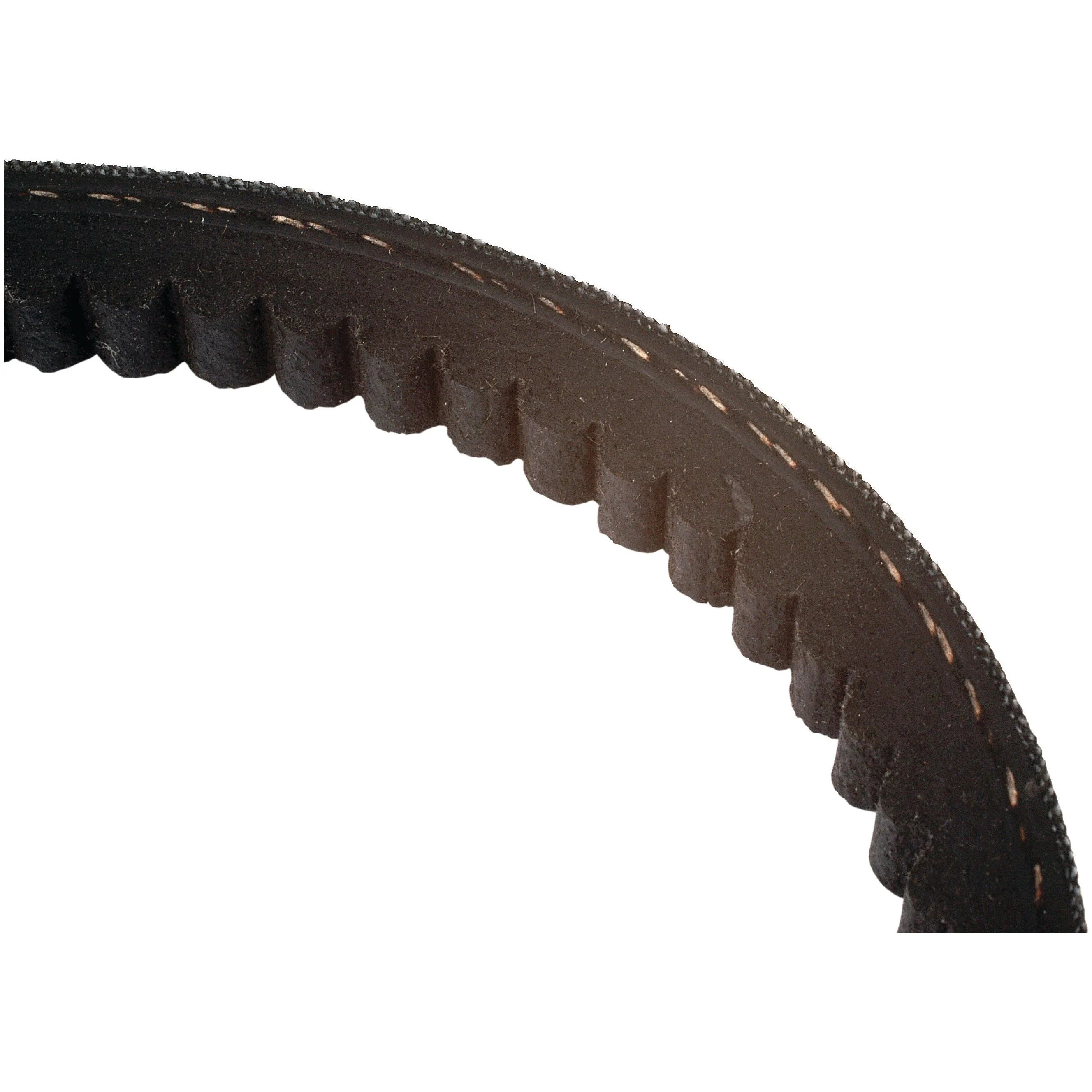

Raw Edge Moulded Cogged Belt - AVX Section - Belt No. AVX13x1200 | Sparex Part No.S.18642

This Raw Edge Moulded Cogged Belt is a high-quality replacement part for a variety of agricultural machinery. It features an AVX13 section and is designed for long-lasting performance.

Product Specifications

• Belt No.: AVX13x1200
• Brand: Sparex (Agribelt)
• Datum length LD (mm): 1182
• Depth (mm): 10
• Depth ins: 3/8
• Effective Length (ins): 47
• Effective Length (mm): 1182
• Inside length Li (mm): 1137
• Inside length Li ins: 45
• Outside length La (ins): 47
• Outside length La (mm): 1200
• Pitch Length (Lp) (Lw):: 1182
• Related products: 14683, 18739
• Section: AVX13
• Tariff Code: 4010390090
• Top Width x Depth: 13 x 10mm (1/2'' x 3/8'')
• Type: Raw Edge Moulded Cogged Fan Belt
• Width (ins): 1/2
• Width (mm): 13

Suitable For

This belt is suitable for a wide range of agricultural machinery, including:

Case IH / International Harvester

• 1056
• 1056XL
• 1255
• 1255XL
• 1455
• 1455XL
• 956XL

Fendt

• FARMER 310
• FARMER 311
• FARMER 312
• FAVORIT 509 C
• FAVORIT 510 C
• FAVORIT 511 C
• FAVORIT 512 C
• FAVORIT 514 C

Landini

• 4000
• 4500
• 5000
• 5500
• 5530
• 5560
• 5830
• 5840
• 5860
• 6000
• 6030
• 6060
• 6070
• 6500
• 6530
• 6550
• 6560
• 6830
• 6840
• 6860
• 6880
• 7000
• 7500
• 7530
• 7560
• 7830
• 7860
• 7870
• 7880
• 8500
• 8530
• 8560
• 8830
• 8860
• 8870
• 8880
• BLIZZARD 50
• BLIZZARD 60
• BLIZZARD 75
• BLIZZARD 85
• C4500
• C4830
• C5830
• C6830
• C7830
• CF5030
• CF5830
• CF6830
• GLOBUS 50
• REX 65
• REX 75
• REX 85
• TREKKER 55
• TREKKER 65
• TREKKER 70
• TREKKER 75
• TREKKER 85

Massey Ferguson

• 133
• 134
• 134C
• 135
• 140
• 145
• 148
• 152
• 154
• 154C
• 164
• 165
• 174
• 174C
• 184
• 185
• 188
• 194
• 194C
• 20
• 203
• 205
• 20F
• 2135
• 2203
• 2205
• 234
• 234C
• 243
• 244CF
• 253
• 254
• 254C
• 263
• 264
• 264C
• 273
• 274
• 274C
• 283
• 284
• 293
• 294
• 294C
• 30
• 302
• 304
• 30D
• 30E
• 30H
• 3125
• 3165
• 3303
• 3305
• 333
• 334
• 340
• 342
• 35
• 350
• 352
• 353
• 353LX
• 354
• 355
• 356CF
• 35X
• 360
• 362
• 363
• 363LX
• 364
• 3645
• 366CF
• 372
• 373
• 374
• 376C
• 376CF
• 376XCF
• 377
• 382
• 383
• 383LX
• 384
• 387
• 393
• 393LX
• 394
• 394C
• 396
• 396C
• 396CF
• 397
• 40
• 40B
• 40E
• 50
• 5425
• 5435
• 5445
• 5455
• 6160
• 6170
• 6180
• 65
• 765
• 8925
• 8926
• 8937
• 8939

Perkins

• 1006-6T (YB)
• A4.236 (LD)
• AD3.152 (CE)
• AD4.203 (JE)
• T3.152.4 (CN)

Manufacture Information

This belt is manufactured by Sparex and is a high-quality replacement part for a variety of agricultural machinery. It is compatible with the following OEM part numbers:

Allis Chalmers

• 71166813V

Case IH / International Harvester

• 3328279R1
• 3228279R1

Deutz-Fahr

• 01180150

Fendt

• X696624200000
• X696.624.200.000

Fiat

• 500370647
• 4816716

Landini

• 3612115M1
• 3639683M1
• X69662420000
• X696624200000
• 2614B644
• 2614B145
• 2614B645
• 3637597M1

Leyland

• 83H555

Massey Ferguson

• 186976M1
• 1447784M91
• 186976V1
• 2614B145
• 2614B644
• 353756X1
• 3637597V1
• 3639683M1
• 3714894M1
• 3612115M1
• 3637597M1
• 890982M1
• 962184M1
• X696624200000

Perkins

• 2614B644

Order your Raw Edge Moulded Cogged Belt today and get it delivered fast!
