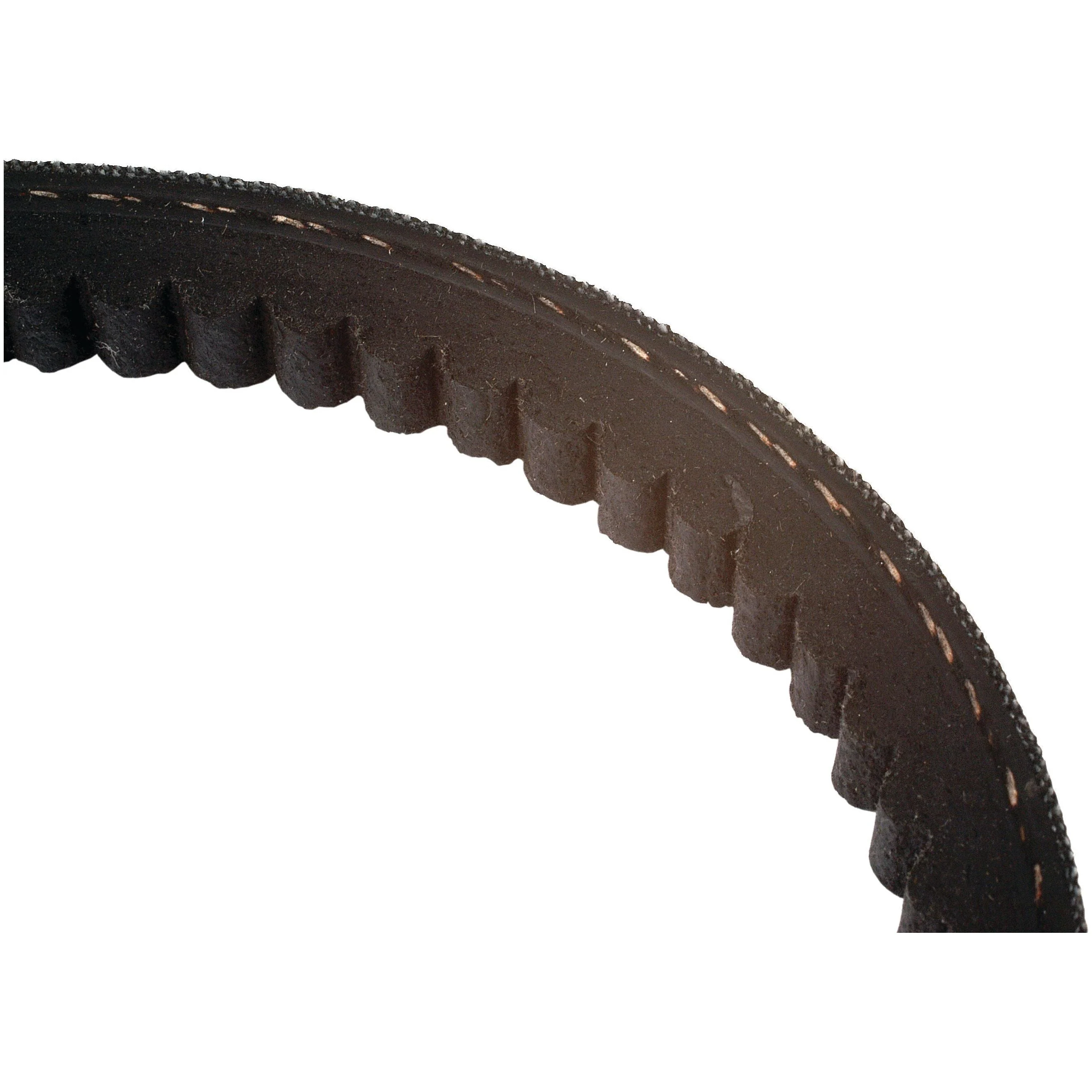

Raw Edge Moulded Cogged Belt - AVX Section - Belt No. AVX13x1175 | Sparex Part No. S.18641

Introducing the Raw Edge Moulded Cogged Belt in the AVX section, specifically designed for optimal performance in various agricultural machinery. This high-quality belt, identified by Belt No. AVX13x1175, is a reliable choice for ensuring smooth operation and durability.

Product Specifications

• Belt No.: AVX13x1175
• Brand: Sparex (Agribelt)
• Datum Length (LD): 1157 mm
• Depth: 10 mm (3/8 in)
• Effective Length: 46 in (1157 mm)
• Inside Length (Li): 1112 mm (44 in)
• Outside Length (La): 46 in (1175 mm)
• Pitch Length (Lp): 1157 mm
• Section: AVX13
• Tariff Code: 4010390090
• Top Width x Depth: 13 x 10 mm (1/2'' x 3/8'')
• Type: Raw Edge Moulded Cogged Fan Belt
• Width: 1/2 in (13 mm)

Suitable For

This belt is compatible with a range of agricultural machinery, including:

• Deutz-Fahr AGROTRON K 120
• Fendt FARMER 307, 308, 309, 310, 311, 312
• Landini 4560, 5560, 5860, 5870, 6060, 6070, 6560, 6860, 6870, 6880, 7560, 7860, 7880, 8530, 8560, 8860, 8870, 8880, BLIZZARD series, and more.
• Leyland 245, 253, 502
• Massey Ferguson 203, 205, 244CF, 2625, 2640, 2645, 2680, 2685, 2725, 35, 35 US BUILT, 353, 363, 65, 765
• Perkins A6.354.4 (TW), AD3.152 (CE), AT6.354.4 (TU)

Manufacturer Information

For reference, this belt is also known by the following part numbers:

• AVX13X1175, 12.5X1175FB
• Deutz-Fahr 01181185
• Fendt X696623900000, F119202010040
• Ford / New Holland 80443634
• Landini 10070078, 10070172, 3637595M1, 1851751M1, 2612417, 2614B142, 2614B642, 1693746M1, 1851749M1
• Leyland 83H457
• Massey Ferguson 1810548M1, 3637595M1, 1851749M1, 1851751M1, 1693746M1
• Perkins 0070078, 0070172, 2614B560, 2612417, 2614B142
