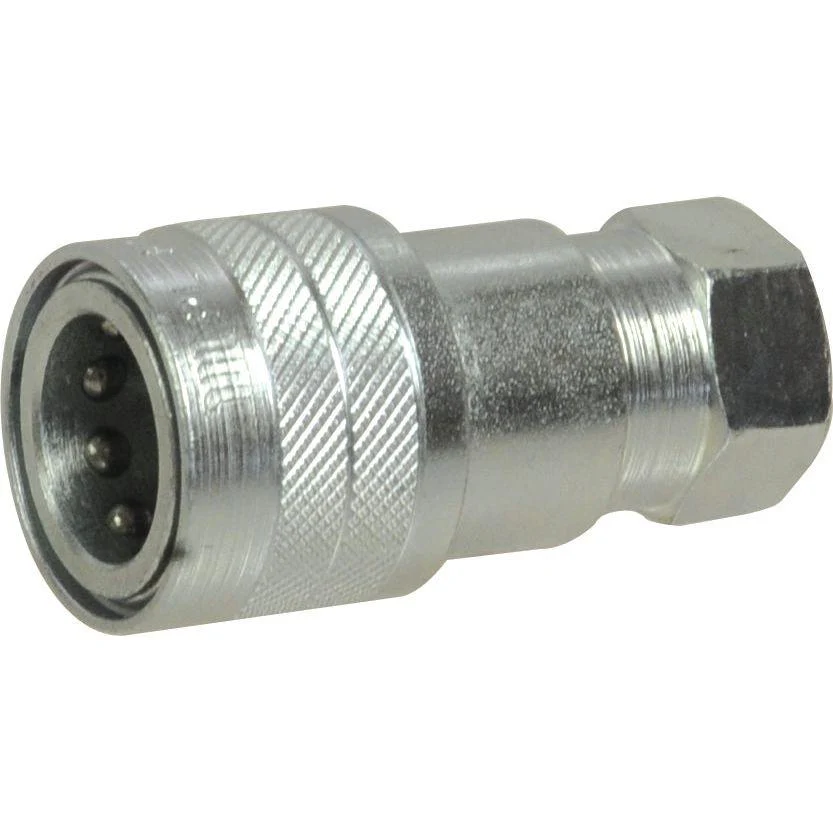

Sparex Quick Release Hydraulic Coupling Female 3/8'' Body x 3/8'' BSP Female Thread

Product Specifications

• A (ins): 3/8
• Alternative to: 5642
• B (mm): 57.8
• Body Size (ins): 3/8
• Brand: Sparex
• Coupler Type: Standard Coupling With Poppet Valve
• D Ø (mm): 30
• Flow Rate (LPM): 23
• Length (mm): 57.8
• Gender: Female
• Material: Carbon Steel
• Maximum Working Pressure (bar): 315
• Outer Ø (mm): 30
• Related Products: 11306, 2957, 3850, 3885
• Series: BG2
• Tariff Code: 7307199000
• Thread Type: BSP
• Thread Size: 3/8

Compatibility Information

This hydraulic coupling is designed for universal application and is not associated with any specific make or model.

Manufacturer Information

Compatible with parts from:

• JCB - Part No: 45903100
• Massey Ferguson - Part No: 3475760M1
• PARKER HANNIFIN - Part No: 4V53G4X3-B
