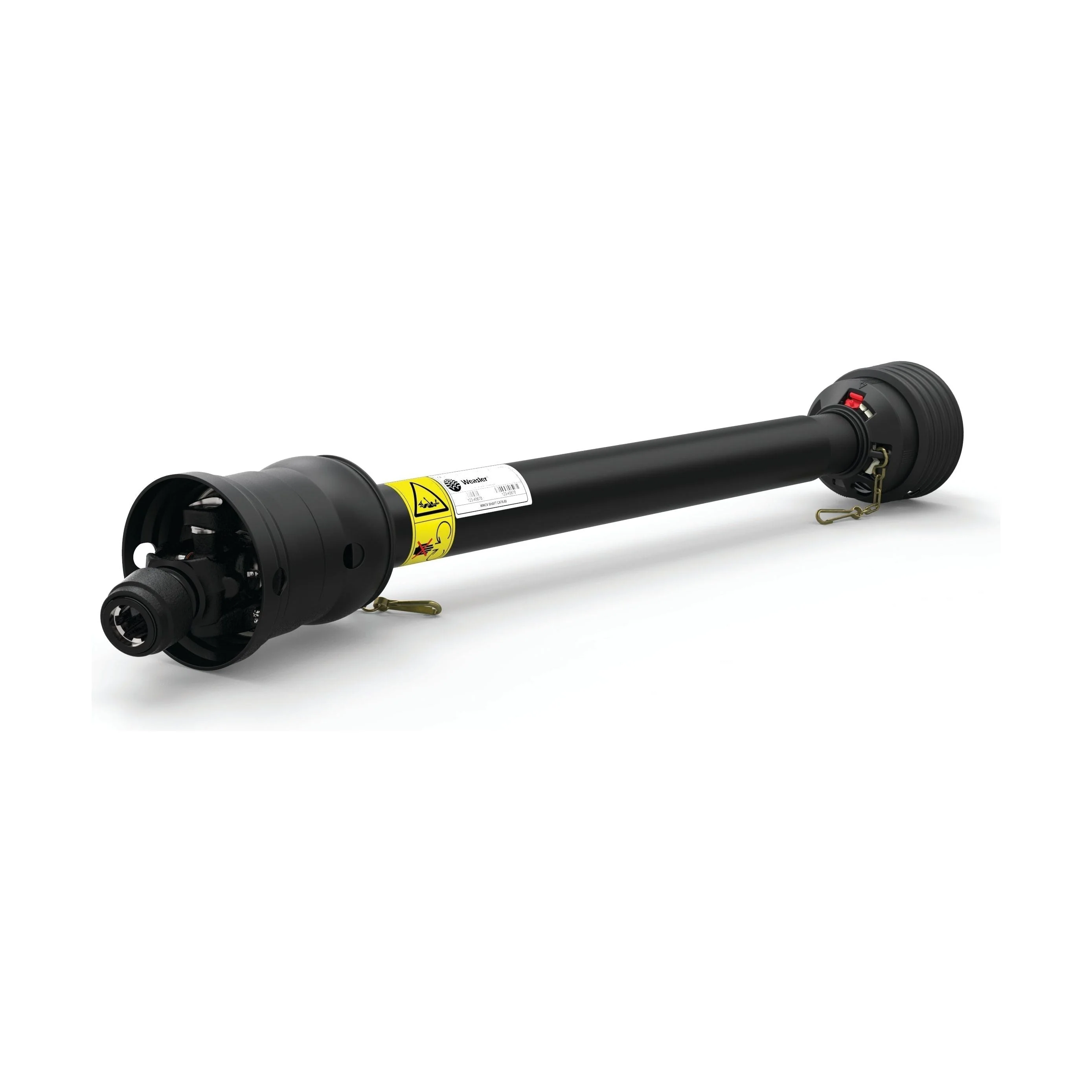

Weasler PTO Shaft - WWCV Wide Angle

Introducing the Weasler PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a power rating of 94HP at 540RPM, making it an excellent choice for various agricultural applications. With a length of 1010mm and a robust construction, this PTO shaft is built to handle demanding tasks with ease.

Product Specifications

• Alternative to: 117968
• Brand: Weasler
• German Series: AW36/CAT5
• HP Rating @ 540RPM: 94
• HP Rating Range @ 540RPM: 55 to 119
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Kilowatt Power Rating @ 540RPM: 70

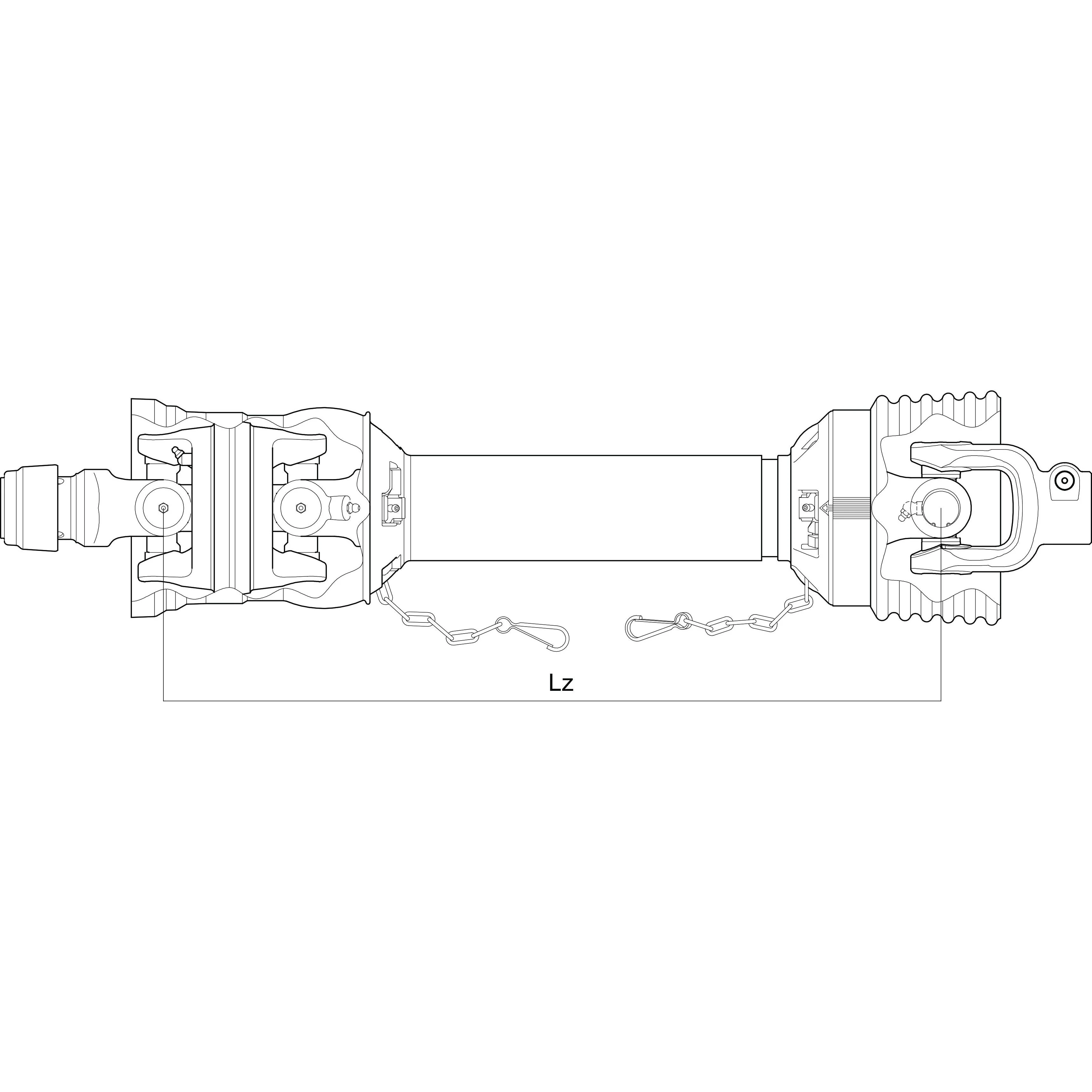

• Lz Length (mm): 1010
• PTO Series: AW36/CAT5
• Reference: 1811-7950-101
• Related Products: 20217, 20220, 20233, 20237, 20238, 50696, 118303
• Tariff Code: 8483908990
• Torque (Nm): 1993
• Torque Range: 1245 - 2250Nm
• Total Closed Length (mm): 1250

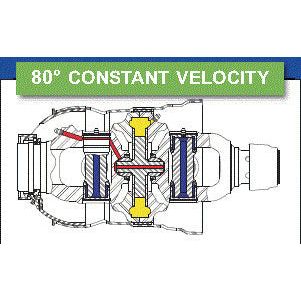

• Tractor End: 1 3/8'' x 6 Spline 80° W.A.
• Tube Profile: Star
• Tube Reference: S4GA/S5G
• Universal Joint Dimensions: 35 x 106.5mm

Compatibility Information

This PTO shaft is designed for universal compatibility and is not associated with any specific make or model.

Manufacturer Information

This product does not correspond to any particular OEM part number, ensuring versatility across various applications.
