Weasler PTO Shaft - WWCV Wide Angle - one Side, (Lz) Length 1010mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. | Sparex Part No.S.20212

Product image 1
1 / 3

Weasler PTO Shaft - WWCV Wide Angle - one Side, (Lz) Length 1010mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. | Sparex Part No.S.20212

Weasler PTO Shaft - WWCV Wide Angle

HP Rating @ 540RPM: 77HP | Series: AW35/CAT4

Product Specifications
  • Alternative to: 164258, 164259
  • Brand: Weasler
  • German Series: AW35/CAT4
  • HP Rating @ 540RPM: 77
  • HP Rating Range @ 540RPM: 55 to 119
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Kilowatt Power Rating @ 540RPM: 57

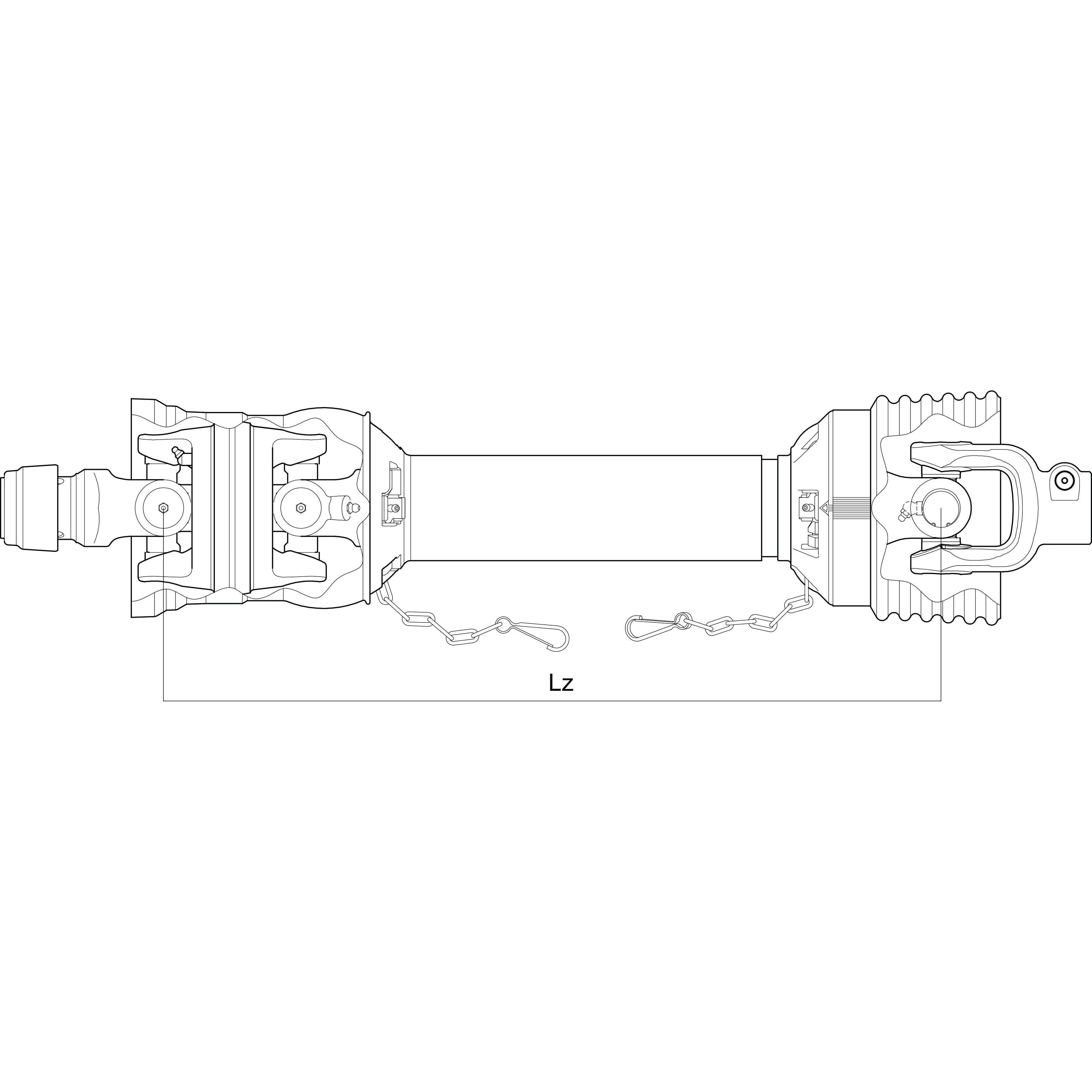

  • Lz Length (mm): 1010
  • PTO Series: AW35/CAT4
  • Reference: 1811-7601-101
  • Related Products: 20216, 20223, 20232, 20237, 50695, 50698
  • Tariff Code: 8483908990
  • Torque (Nm): 1491
  • Torque Range: 1245 - 2250Nm
  • Total Closed Length (mm): 1240
  • Tractor End: 1 3/8'' x 6 Spline 80° W.A.
  • Tube Profile: Lemon
  • Tube Reference: 1bGA/2aG
  • Universal Joint Dimensions: 28.6 x 108 & 31.8 x 81.3mm
Compatibility Information

This product is not associated with any particular make or model.

Manufacturer Information

This product is not associated with any particular OEM part number.

$566.16

Original: $1,617.61

-65%
Weasler PTO Shaft - WWCV Wide Angle - one Side, (Lz) Length 1010mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. | Sparex Part No.S.20212—

$1,617.61

$566.16

Product Information

Shipping & Returns

Description

Weasler PTO Shaft - WWCV Wide Angle

HP Rating @ 540RPM: 77HP | Series: AW35/CAT4

Product Specifications
  • Alternative to: 164258, 164259
  • Brand: Weasler
  • German Series: AW35/CAT4
  • HP Rating @ 540RPM: 77
  • HP Rating Range @ 540RPM: 55 to 119
  • Implement End: 1 3/8'' x 6 Spline Q.R.
  • Kilowatt Power Rating @ 540RPM: 57
  • Lz Length (mm): 1010
  • PTO Series: AW35/CAT4
  • Reference: 1811-7601-101
  • Related Products: 20216, 20223, 20232, 20237, 50695, 50698
  • Tariff Code: 8483908990
  • Torque (Nm): 1491
  • Torque Range: 1245 - 2250Nm
  • Total Closed Length (mm): 1240
  • Tractor End: 1 3/8'' x 6 Spline 80° W.A.
  • Tube Profile: Lemon
  • Tube Reference: 1bGA/2aG
  • Universal Joint Dimensions: 28.6 x 108 & 31.8 x 81.3mm
Compatibility Information

This product is not associated with any particular make or model.

Manufacturer Information

This product is not associated with any particular OEM part number.
