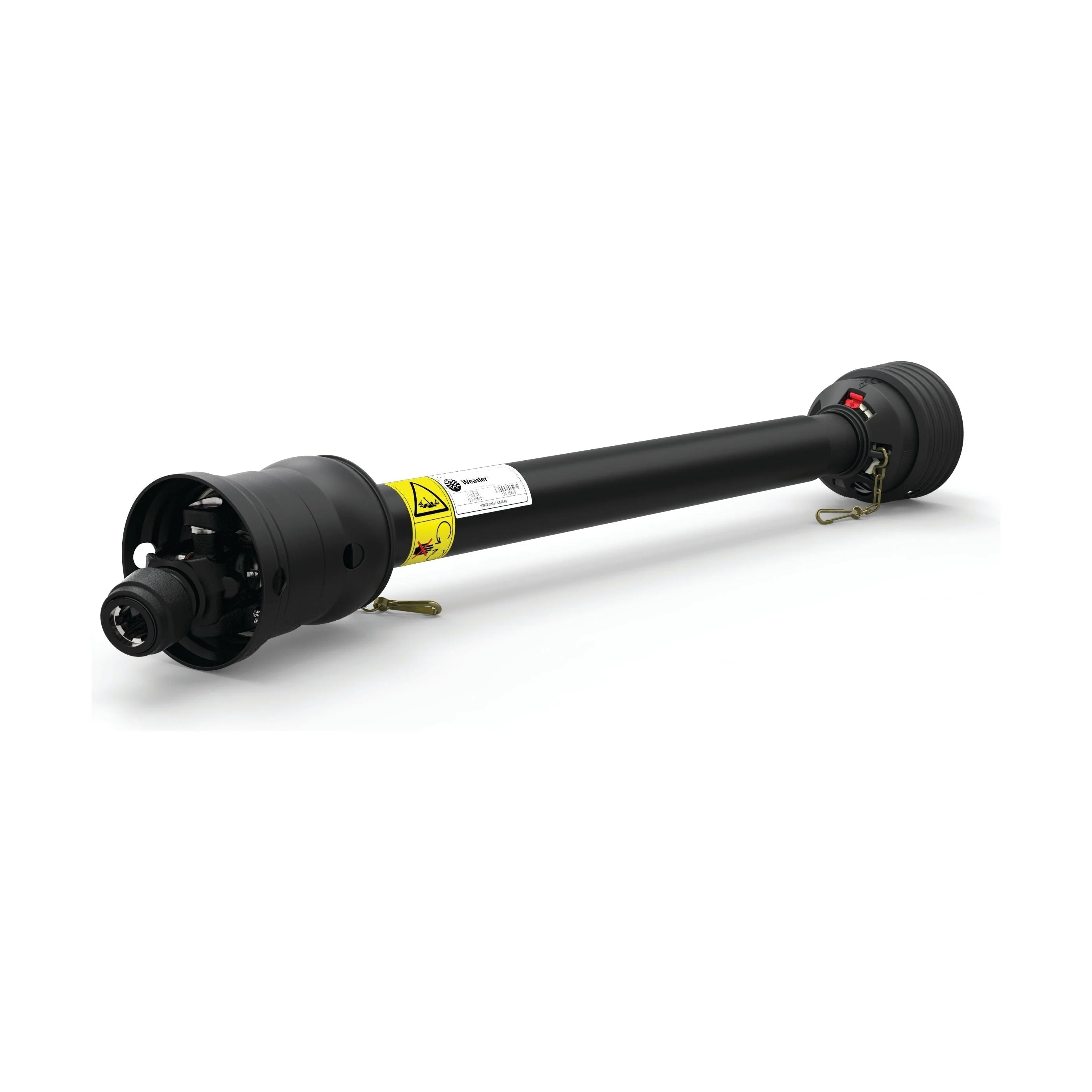

Weasler PTO Shaft - WWCV Wide Angle

Introducing the Weasler PTO Shaft, designed for optimal performance and durability. This high-quality shaft features a HP Rating of 21HP at 540RPM and is part of the renowned AW20/CAT2 series. With a robust construction and advanced engineering, this PTO shaft is perfect for a variety of agricultural applications.

Product Specifications

• Brand: Weasler
• German Series: AW20/CAT2
• Guard Type: WWCV Wide Angle
• HP Rating @ 540RPM: 21
• HP Rating Range @ 540RPM: Up to 54
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Kilowatt Power Rating @ 540RPM: 16

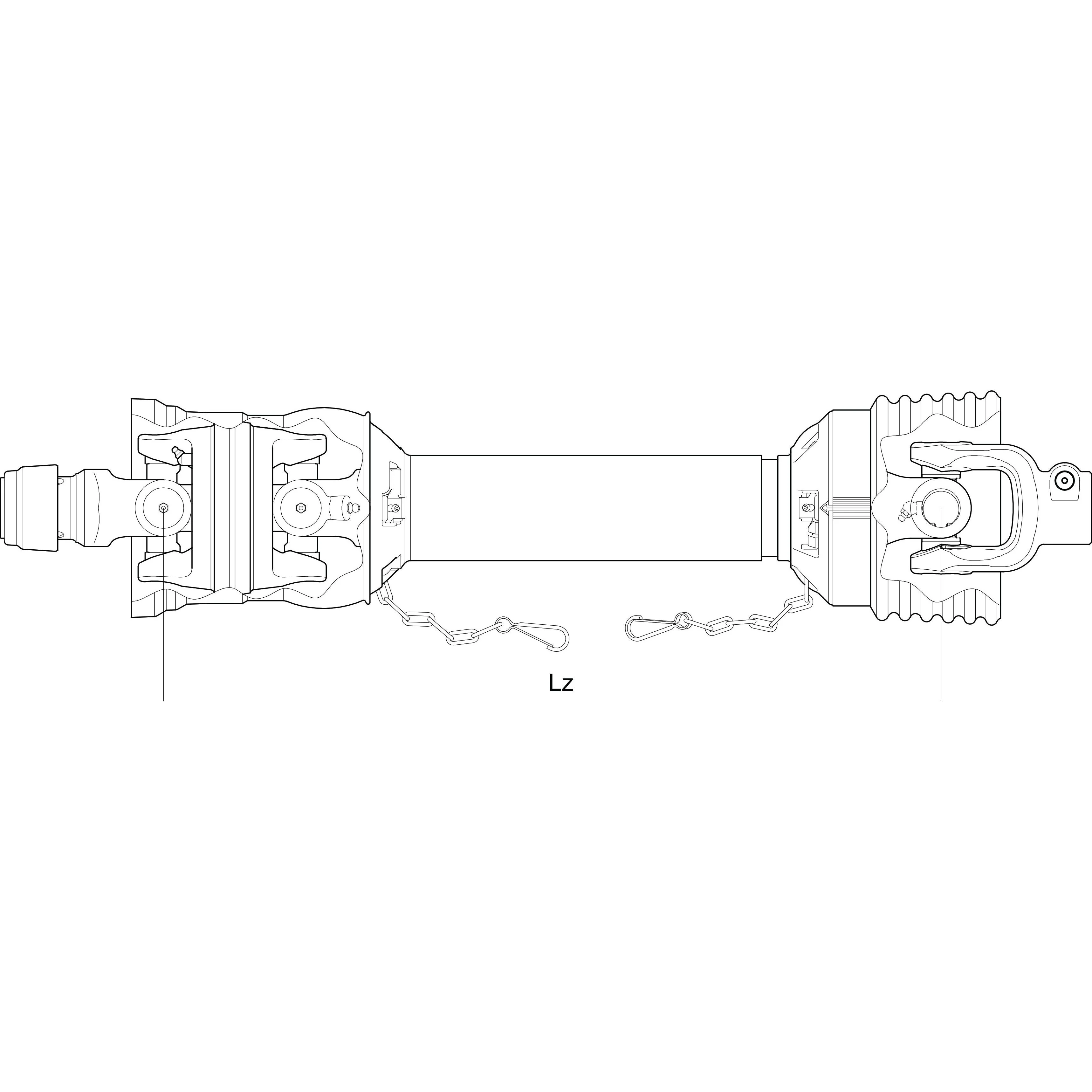

• Lz Length: 1010 mm
• PTO Series: AW20/CAT2
• Reference: 1800-7202-101
• Related Products: 2447, 50694, 50697, 51151, 6031, 6038, 6583, 72447, 115375, 118070
• Tariff Code: 8483908990
• Torque (Nm): 493
• Torque Range: 335 - 1240 Nm
• Total Closed Length: 1218 mm
• Tractor End: 1 3/8'' x 6 Spline 80° W.A.
• Tube Profile: Lemon
• Tube Reference: OvGA/1G
• Universal Joint Dimensions: 24 x 61 & 22 x 76 mm

Compatibility Information

This PTO shaft is designed for universal compatibility and is not associated with any specific make or model.

Manufacturer Information

This product does not correspond to any particular OEM part number, ensuring versatility across various applications.

Product Supplier: Sparex

Product Type: PTO Shaft

Product SKU: SP-138094
