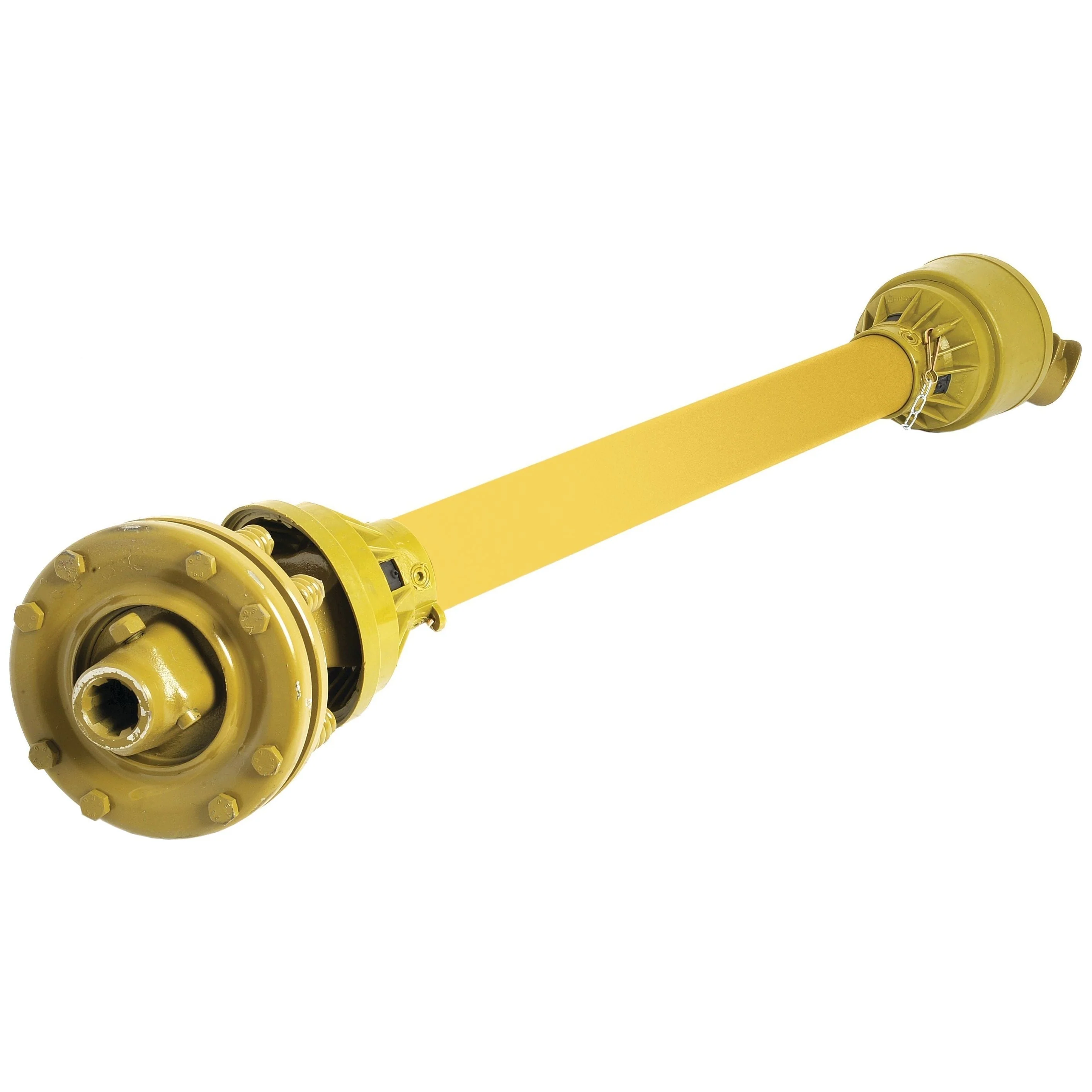

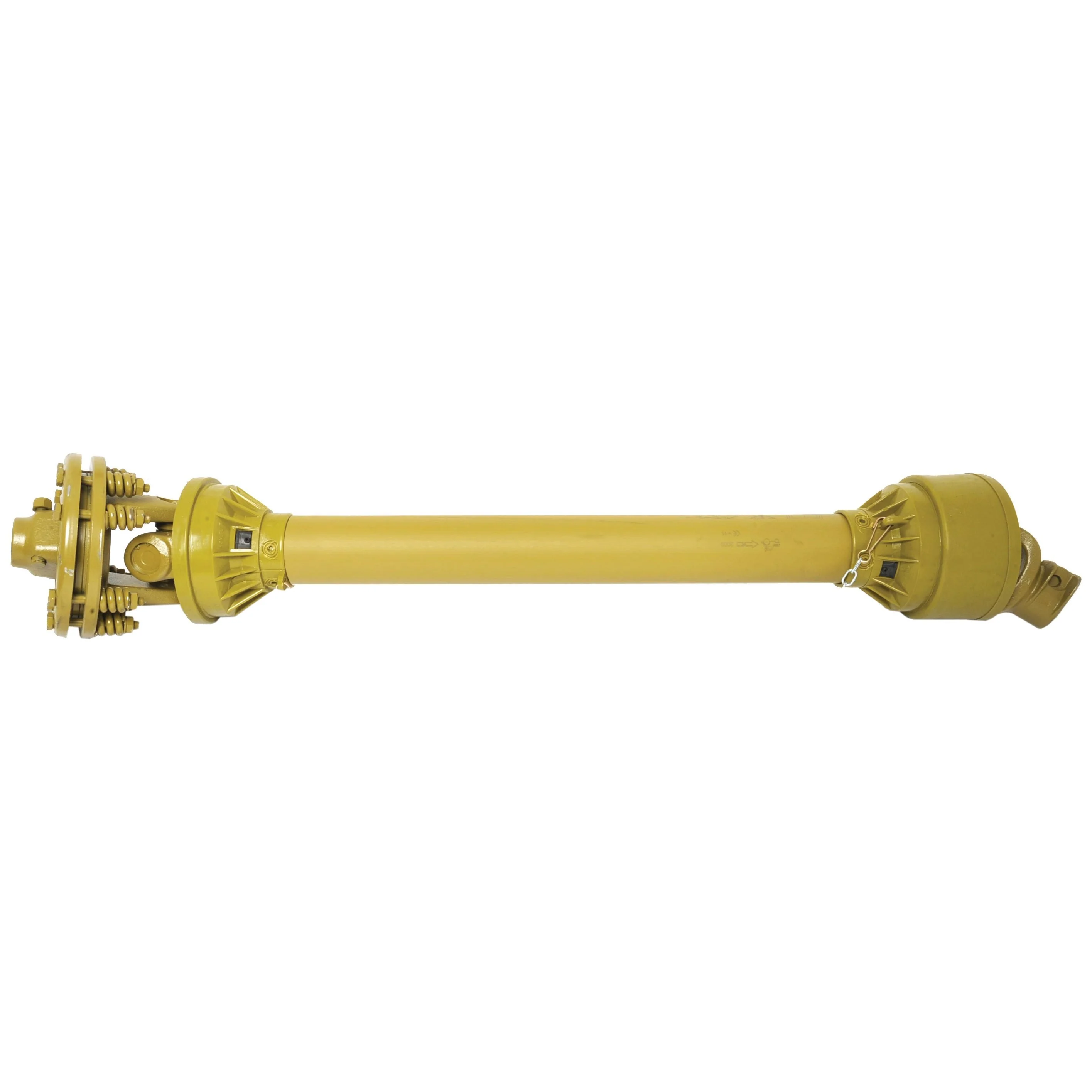

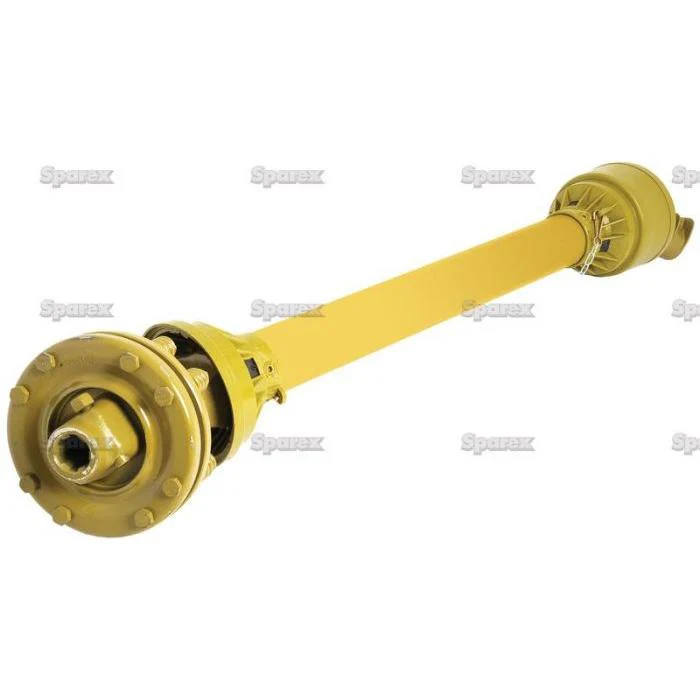

PTO Shaft - (Lz) Length: 930mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Friction Disc Clutch - S.23204

Introducing the high-performance PTO Shaft designed for optimal efficiency and durability. With a robust HP Rating of 95HP at 540 RPM, this shaft is part of the renowned Italian Series: AB8N/A8N, ensuring superior quality and reliability for your agricultural needs.

Product Specifications

• Brand: Sparex
• Clutch Setting (Nm): 2000
• HP Rating @ 540RPM: 95
• HP Rating Range @ 540RPM: 55 to 119
• Implement End: 1 3/8'' x 6 Spline Friction Disc Clutch
• Kilowatt Power Rating @ 540RPM: 70

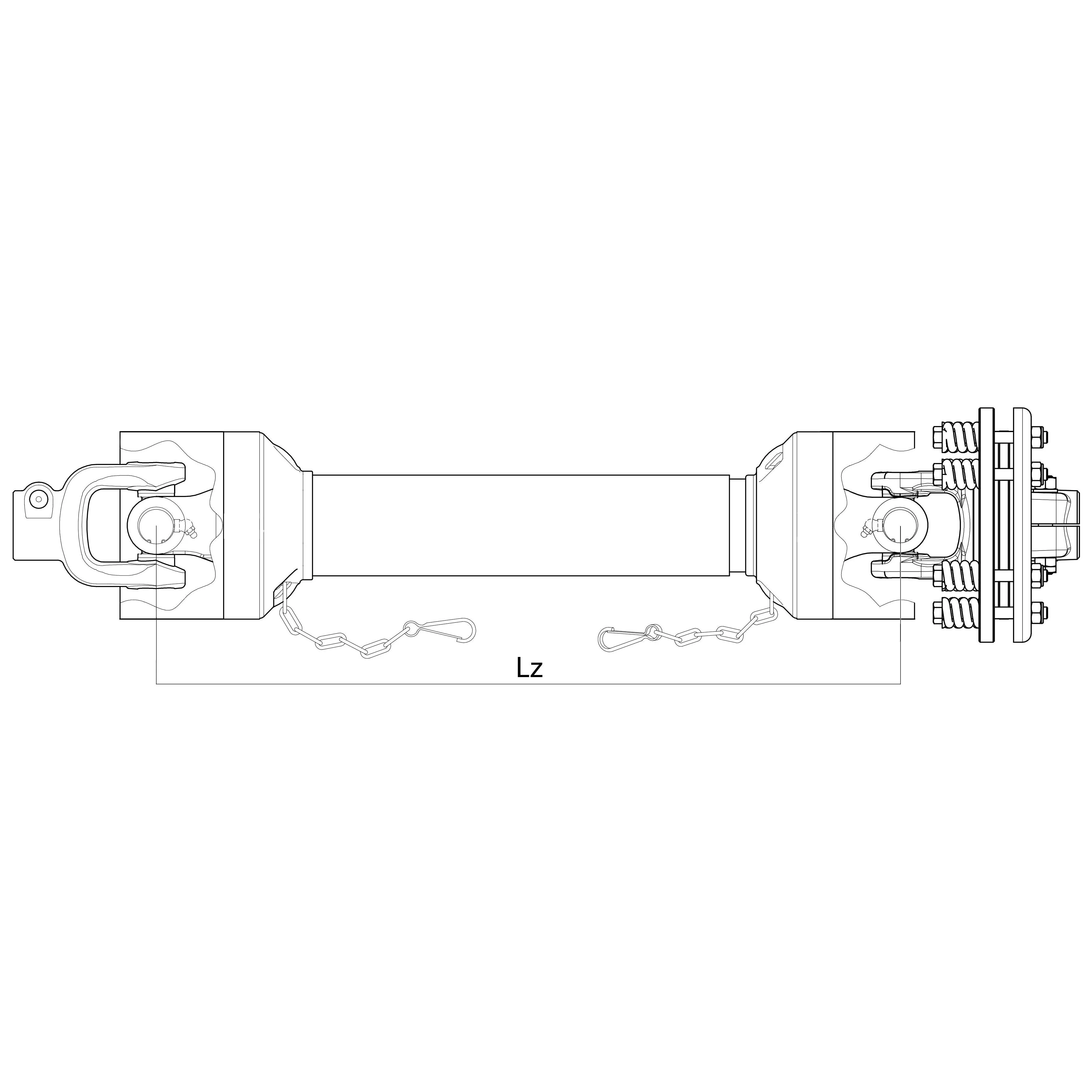

• Lz Length (mm): 930
• Number of Discs: 2
• PTO Series: AB8N/A8N
• Tariff Code: 8483908990
• Torque (Nm): 1240
• Torque Range: 335 - 1240Nm
• Total Closed Length (mm): 1200
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Tube Ref: 12512/12522
• Universal Joint Dimensions: 35 x 106.5mm

Compatibility Information

This PTO shaft is designed for universal application and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring versatility across various applications.
