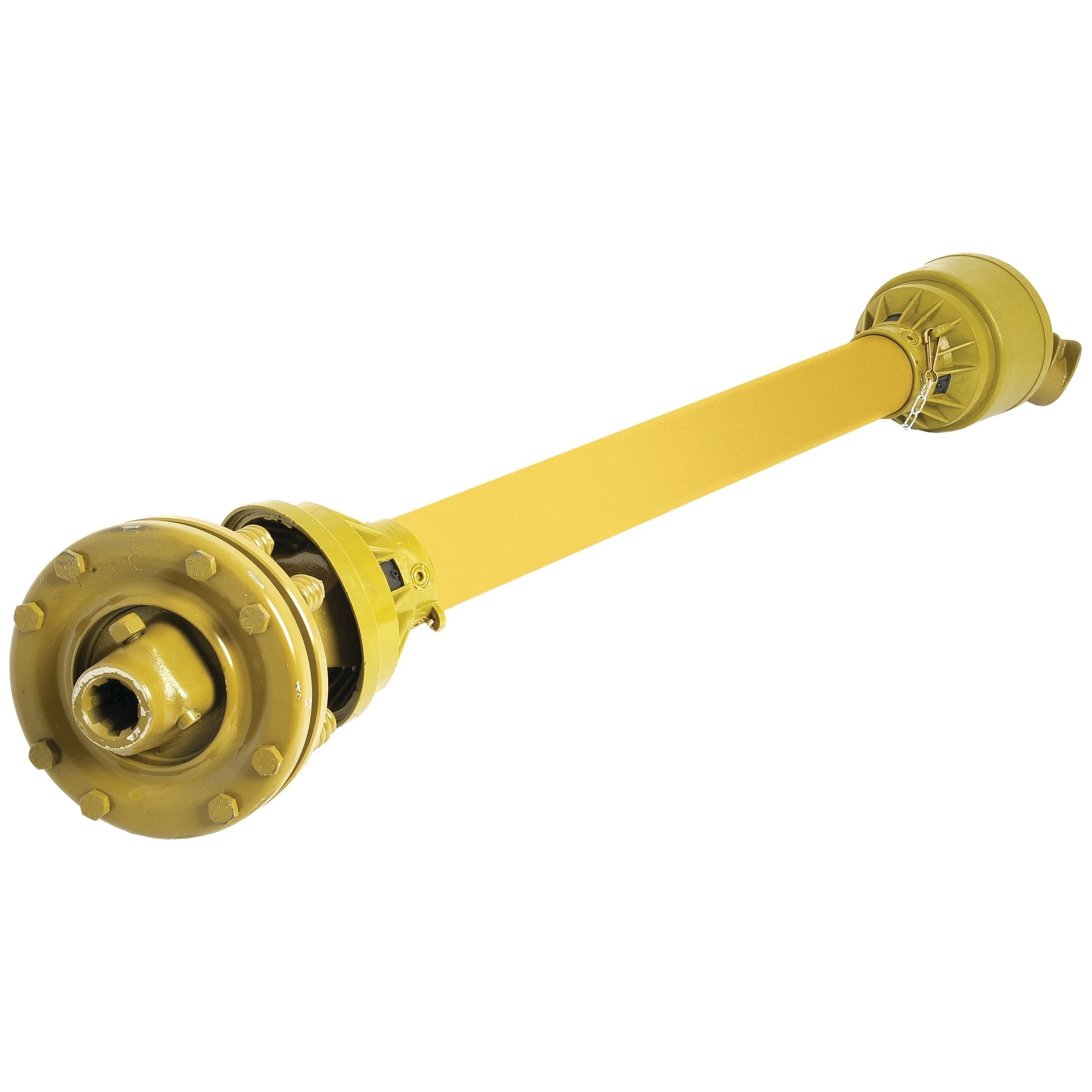

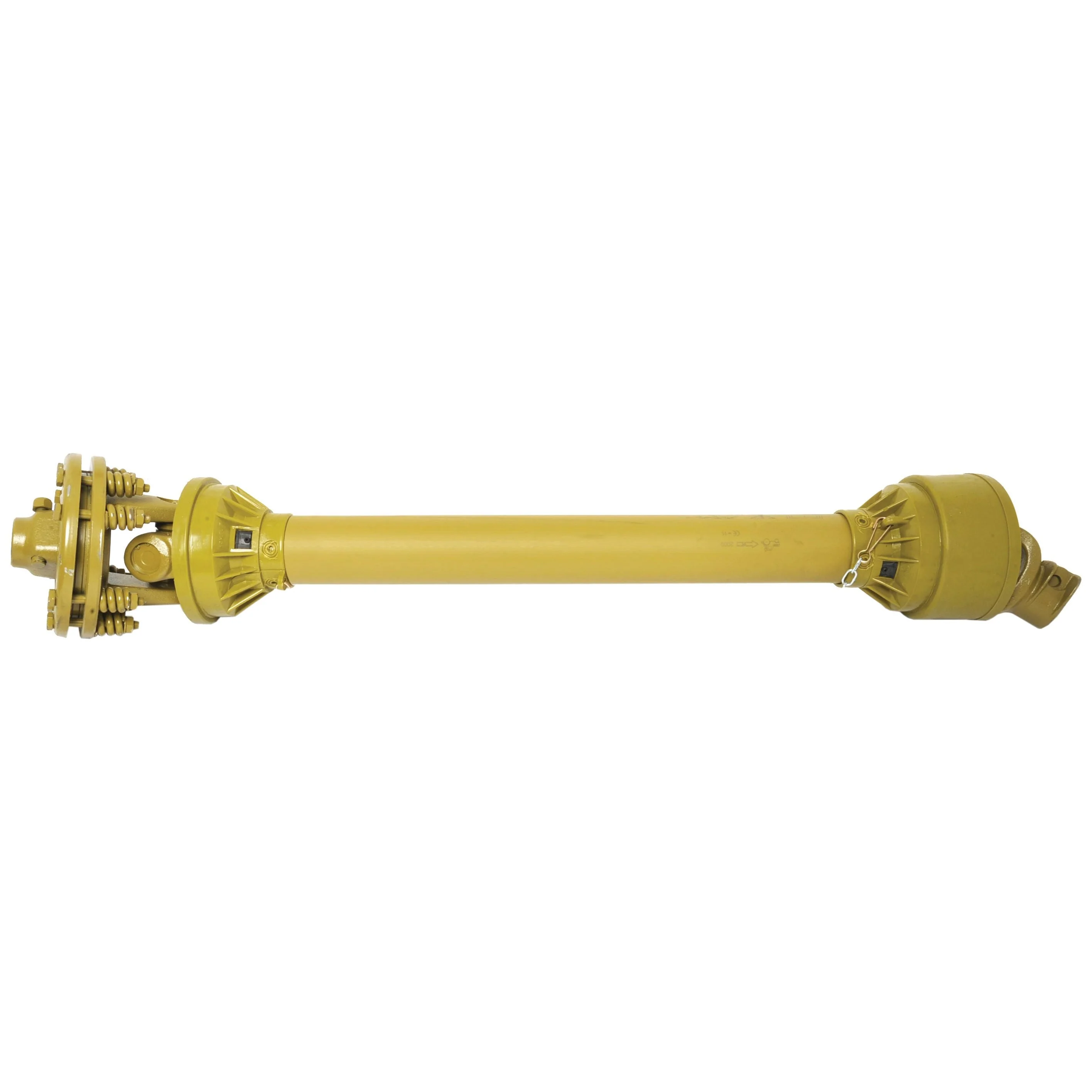

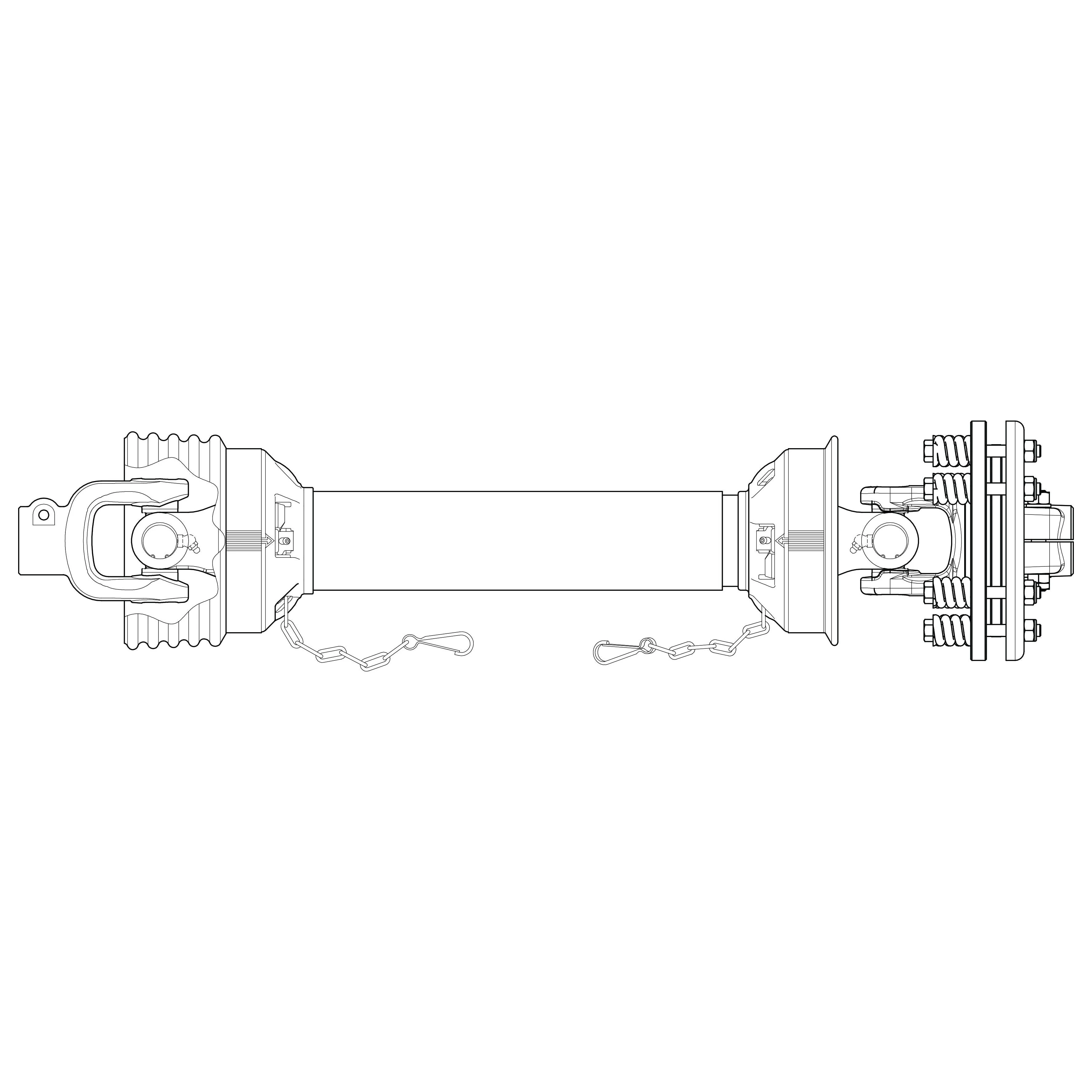

PTO Shaft - (Lz) Length: 838mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Friction Disc Clutch - S.151774

This Sparex PTO shaft is designed for tractors and implements with an AB4/A4 Italian series PTO. It features a 1 3/8'' x 6 spline quick release (Q.R.) on the tractor end and a 1 3/8'' x 6 spline friction disc clutch on the implement end. With a length of 838mm, this shaft is suitable for a wide range of applications.

Key Features:

• Brand: Sparex
• HP Rating @ 540RPM: 35HP
• HP Rating Range @ 540RPM: Up to 54HP
• Kilowatt Power Rating @ 540RPM: 26kW
• Torque: 335 - 1240Nm
• Torque (Nm): 780
• Clutch Setting Nm: 1000
• Lz Length (mm): 838
• Total Closed Length (mm): 1100
• Tube Profile: Triangle
• Tube Ref: 12507/12508
• Universal Joint Dimensions: 27 x 74.5mm
• PTO Series: AB4/A4
• Italian Series: AB4/A4
• Tariff Code: 8483908990

Important Notes:

• This product is not associated with any particular make or model of tractor or implement.
• This product is not associated with any particular OEM part number.
