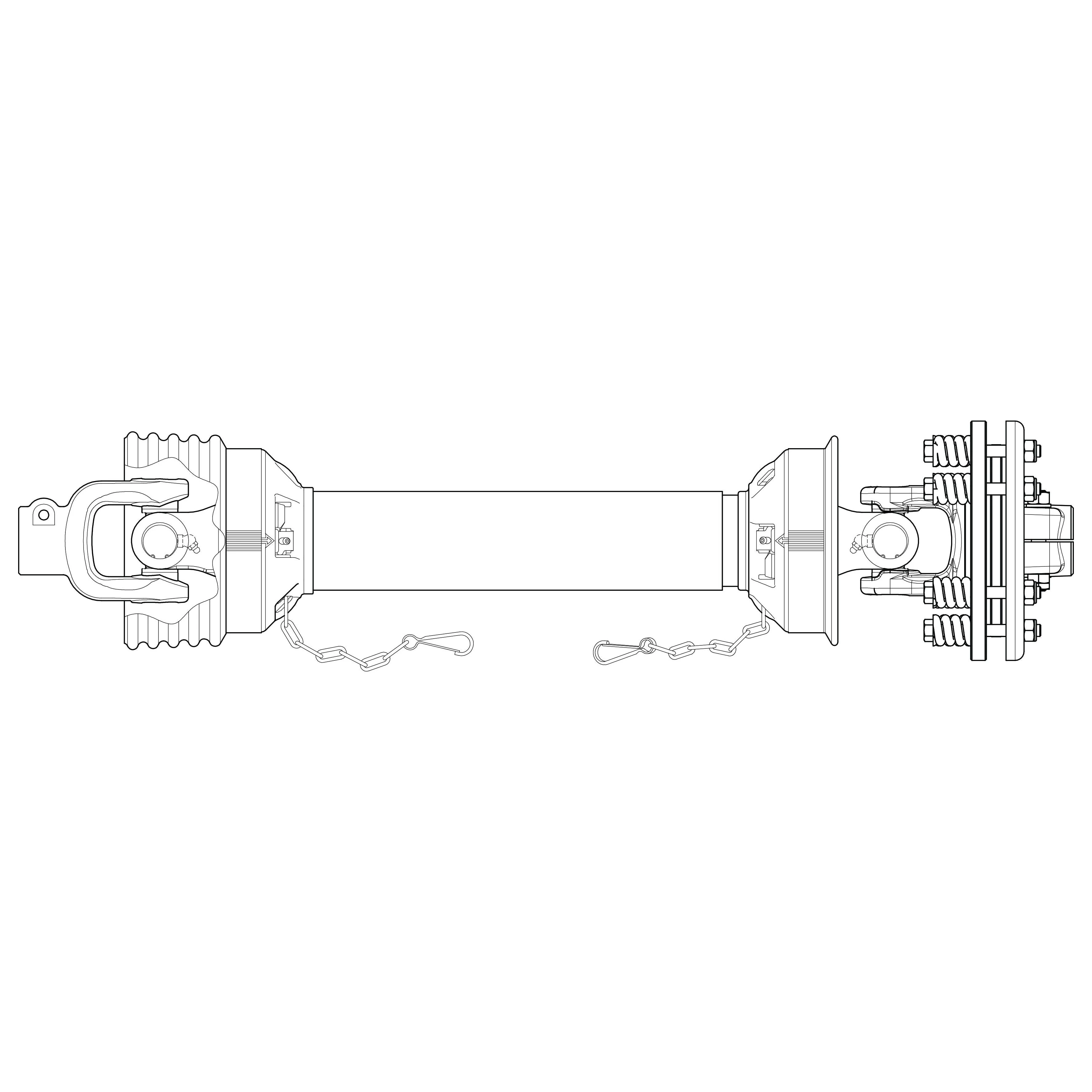

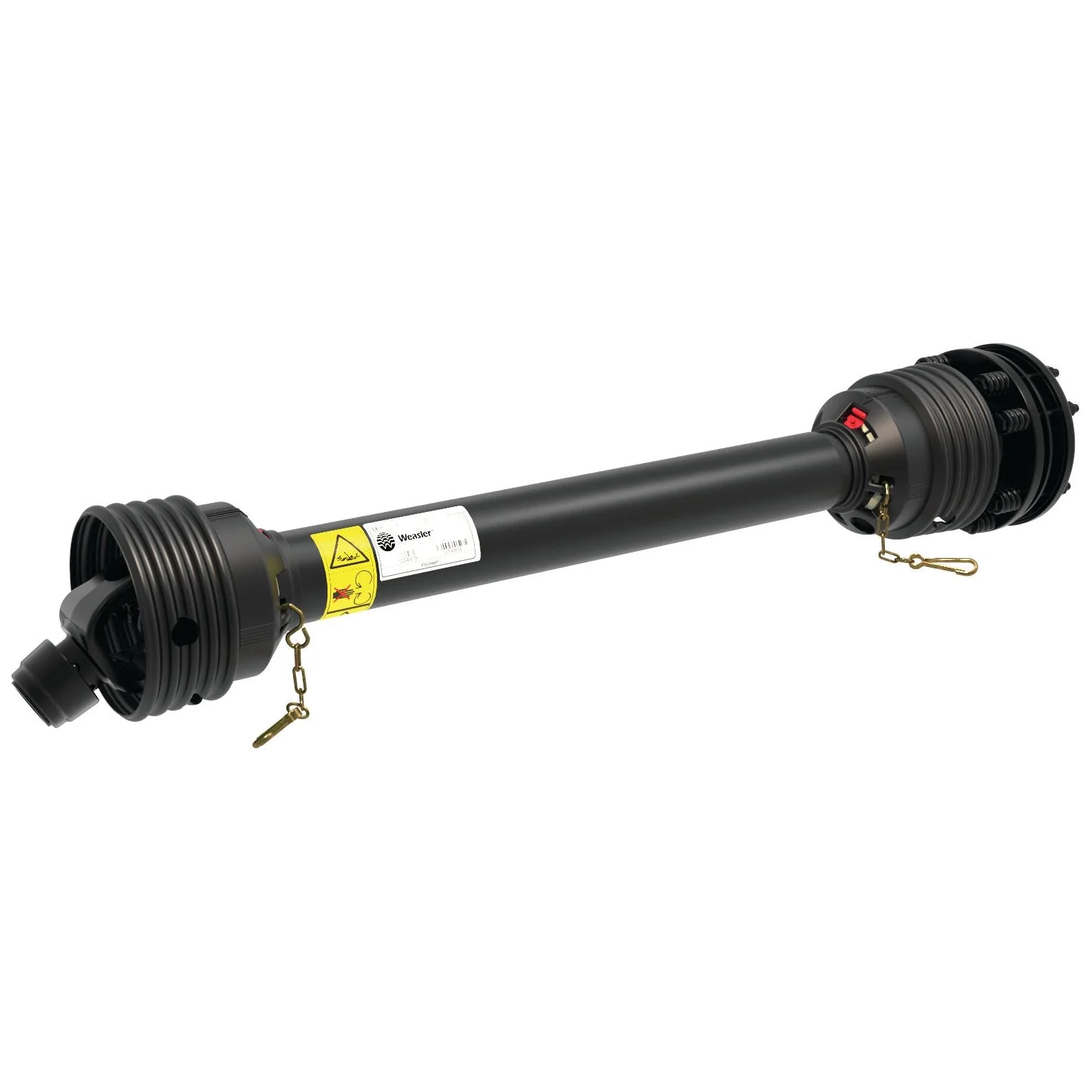

PTO Shaft - (Lz) Length: 1510mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Friction Disc Clutch - S.118360

Introducing the Weasler PTO Shaft, designed for optimal performance with a robust HP rating of 36HP at 540RPM. This high-quality shaft is part of the Italian Series AB4/A4, ensuring reliability and efficiency for your agricultural needs.

Product Specifications

• Brand: Weasler
• Guard Type: Easylock
• HP Rating @ 540RPM: 36
• HP Rating Range @ 540RPM: Up to 54
• Implement End: 1 3/8'' x 6 Spline Friction Disc Clutch
• Italian Series: AB4/A4
• Kilowatt Power Rating @ 540RPM: 26
• Lz Length (mm): 1510
• PTO Series: AB4/A4
• Reference: 1610-6402-15103
• Tariff Code: 8483908990
• Torque (Nm): 836
• Torque Range: 335 - 1240Nm
• Total Closed Length (mm): 1768
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Triangle
• Tube Reference: 12507/12508
• Universal Joint Dimensions: 27 x 74.5mm

Compatibility Information

This PTO shaft is designed for universal application and is not associated with any specific make or model.

Manufacturer Information

This product does not correspond to any particular OEM part number, ensuring versatility across various applications.
