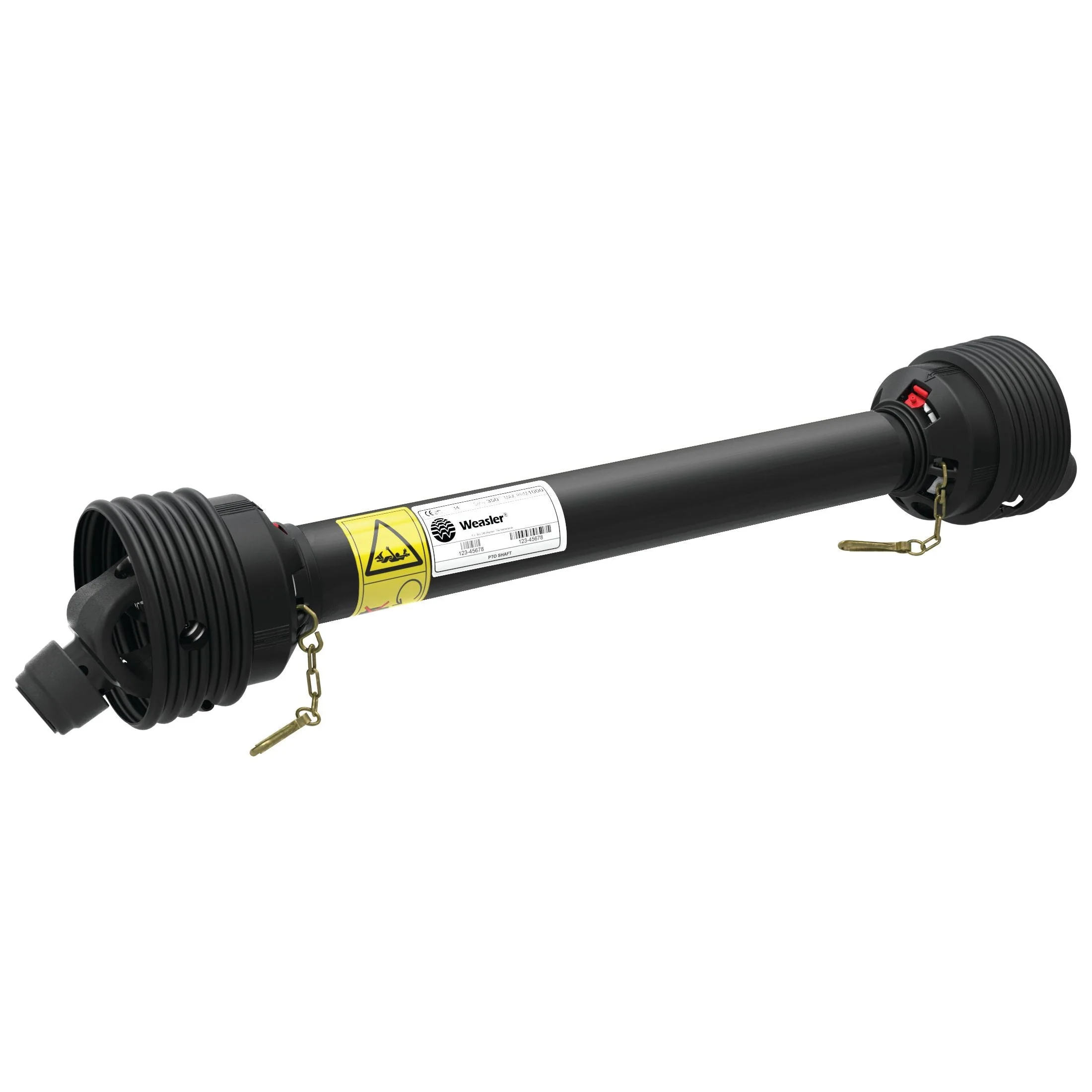

Weasler PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. - S.39019

Introducing the Weasler PTO Shaft, designed for optimal performance and durability. This high-quality shaft is part of the renowned German Series AW36/W2500, ensuring reliability for your agricultural needs.

Key Features

• Brand: Weasler
• German Series: AW36/W2500
• Guard Type: Easylock
• HP Rating @ 540RPM: 80 HP
• HP Rating Range @ 540RPM: 55 to 119 HP
• Kilowatt Power Rating @ 540RPM: 60 kW

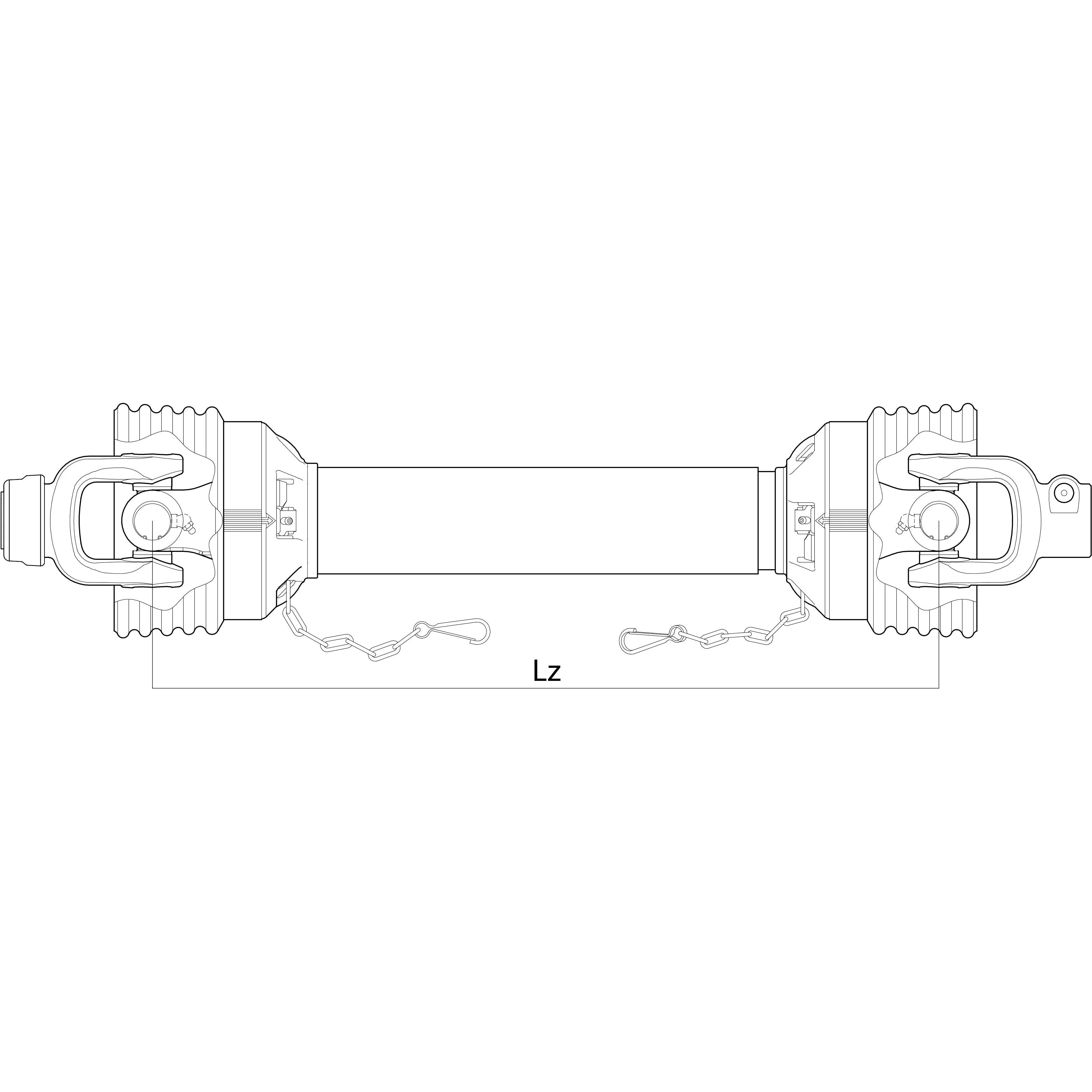

• Lz Length: 1210 mm
• Total Closed Length: 1470 mm
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Torque: 1245 - 2250 Nm (1900 Nm nominal)
• Tube Profile: Star
• Tube Ref: S4/S5
• Universal Joint Dimensions: 36 x 89 mm
• Reference: 1600-7902-121
• Tariff Code: 8483908990

Compatibility

This PTO shaft is versatile and can be used with various implements. However, it is not associated with any specific OEM part number or particular make or model.

Related Products

Explore our range of related products for enhanced performance:

• 20478
• 24820
• 24821
• 4820
• 4821
• 59614
• 59632
• 117878
• 117879
• 117880
• 117897
• 117914

Upgrade your machinery with the Weasler PTO Shaft, engineered for efficiency and performance in demanding agricultural environments.
