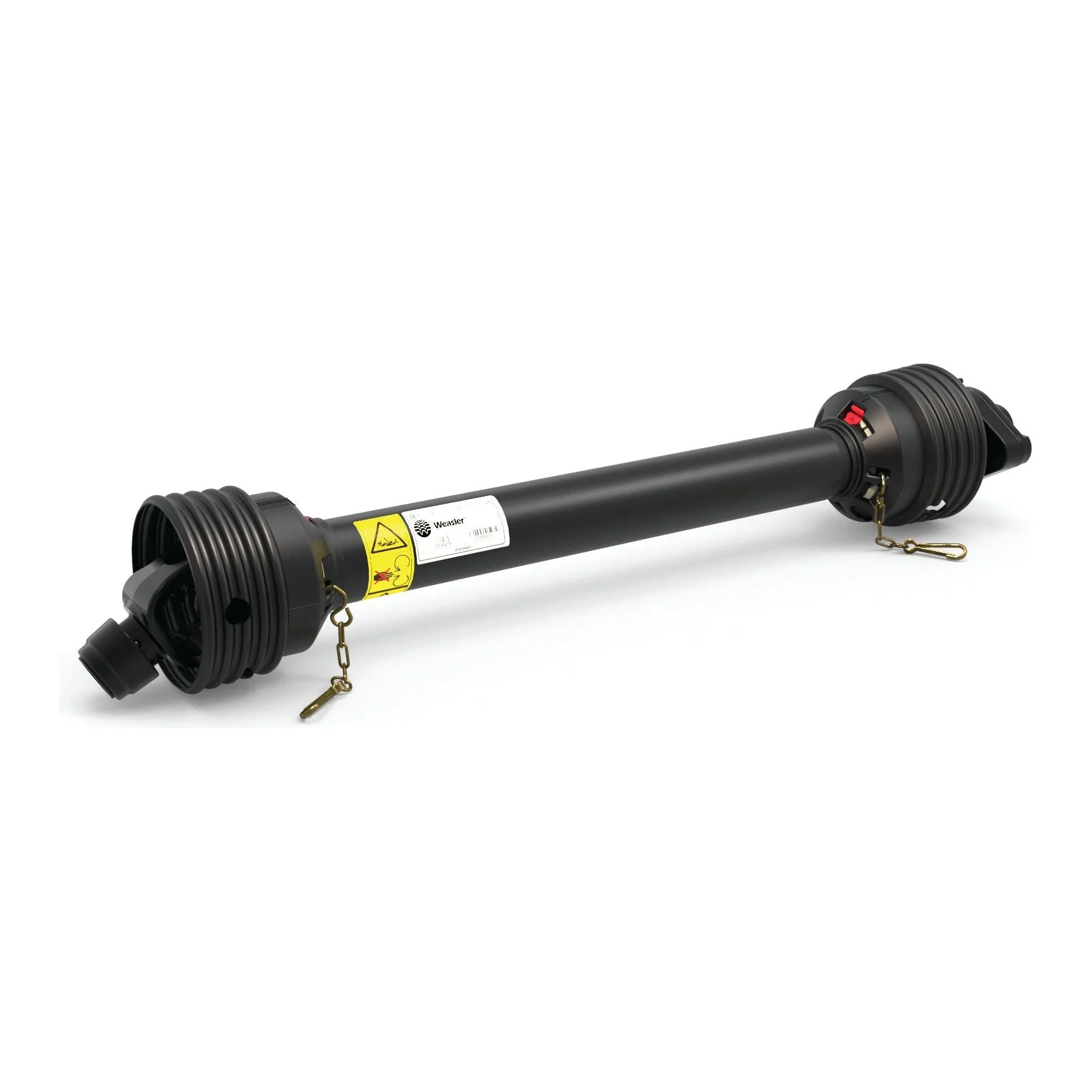

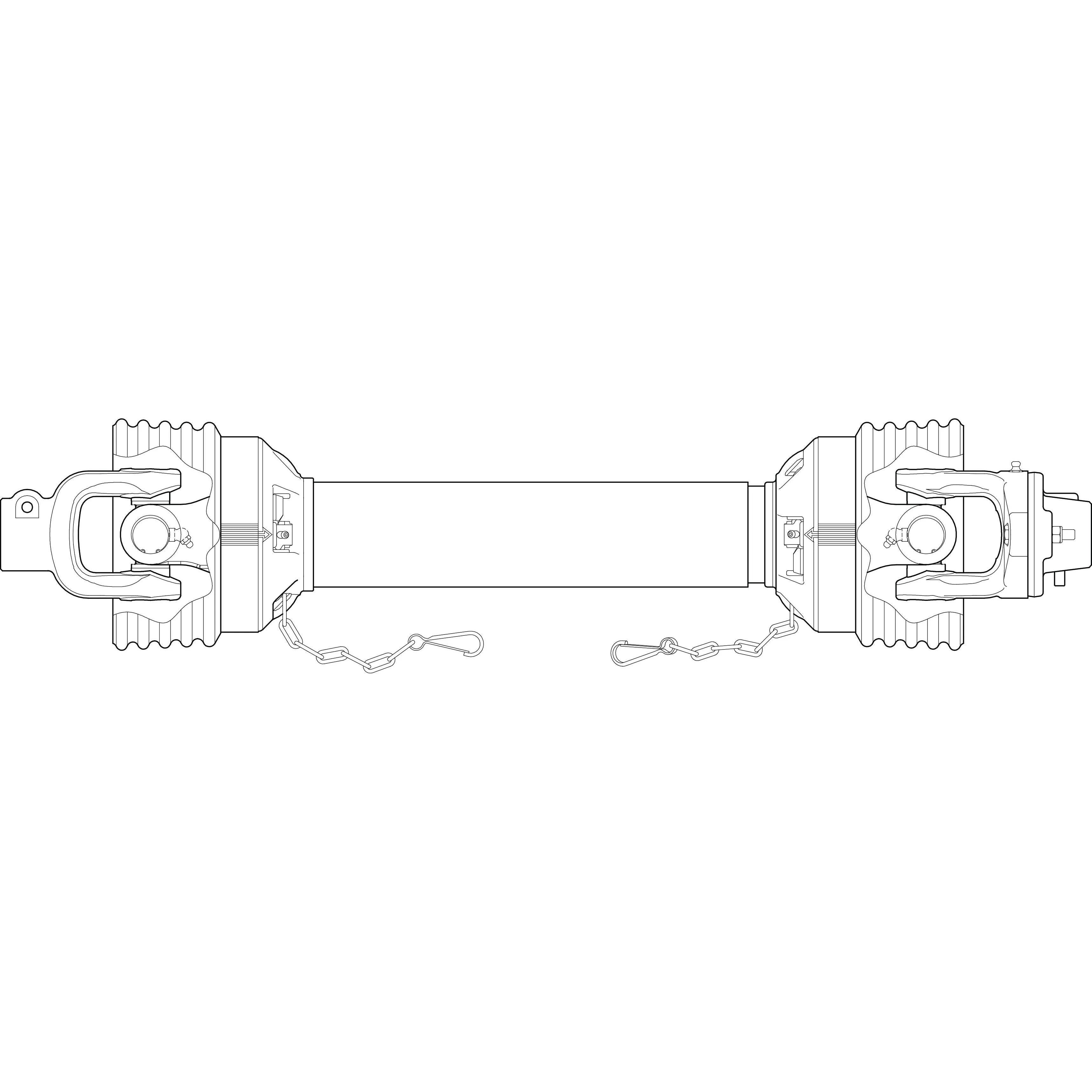

PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Shear Bolt Limiter - S.150964

This Weasler PTO shaft is designed for heavy-duty applications, featuring a robust construction and a powerful 52HP rating at 540RPM. It boasts a German Series AW35/W2400 design, ensuring high performance and reliability.

Key Features:

• Brand: Weasler
• HP Rating @ 540RPM: 52
• HP Rating Range @ 540RPM: Up to 54
• Lz Length (mm): 1010
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Implement End: 1 3/8'' x 6 Spline Shear Bolt Limiter
• Guard Type: Easylock
• Tube Profile: Lemon
• Universal Joint Dimensions: 32 x 76mm

Technical Specifications:

• Clutch Setting Nm: 2120
• German Series: AW35/W2400
• Kilowatt Power Rating @ 540RPM: 39
• PTO Series: AW35/W2400
• Reference: 1680-7602-10120
• Torque (Nm): 1240
• Torque: 335 - 1240Nm
• Total Closed Length (mm): 1262
• Tube Ref: 1b/2a
• Tariff Code: 8483908990

Important Notes:

This PTO shaft is not associated with any specific make or model of tractor or implement. It is a universal product that can be used with a wide range of equipment.

This product is not associated with any particular OEM part number.
