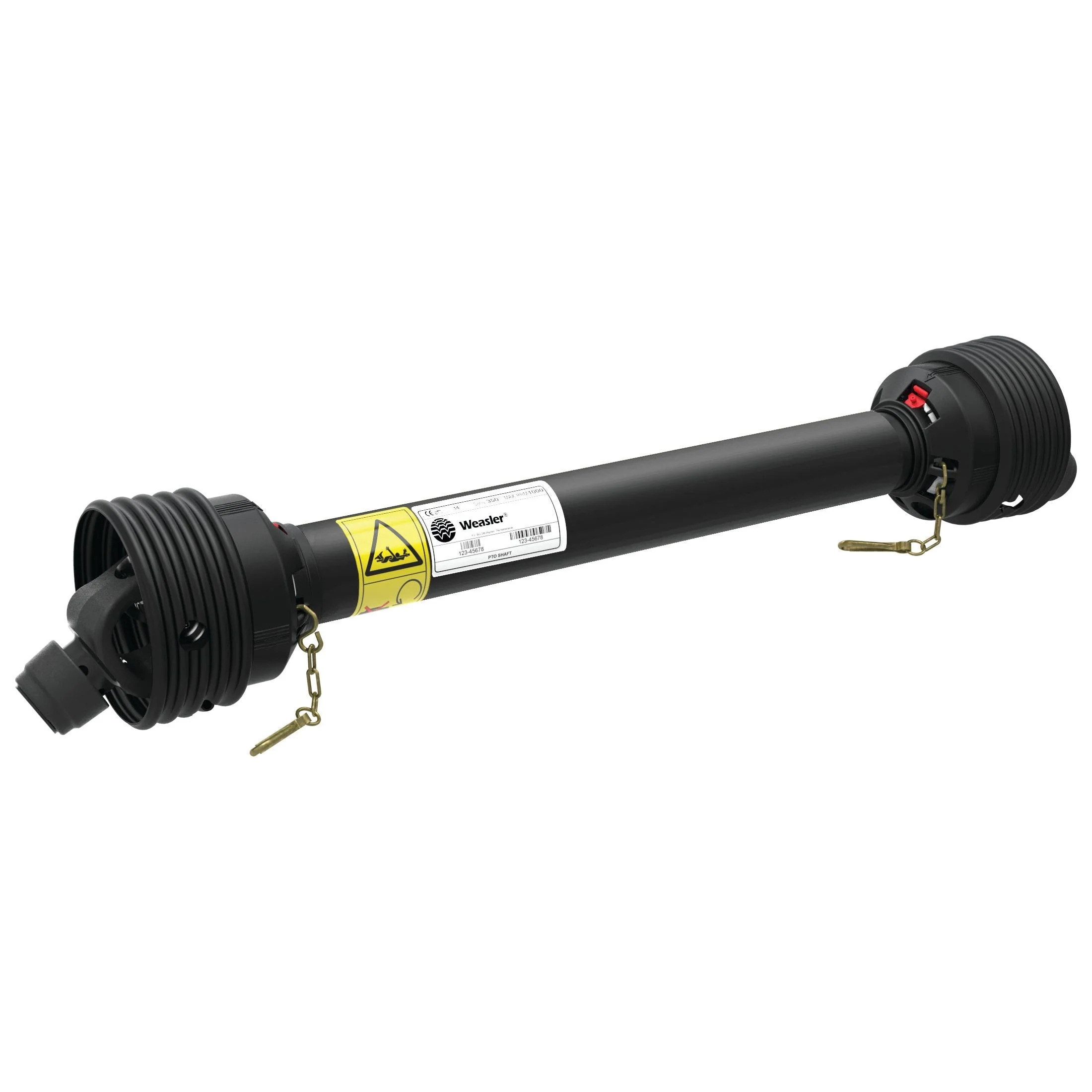

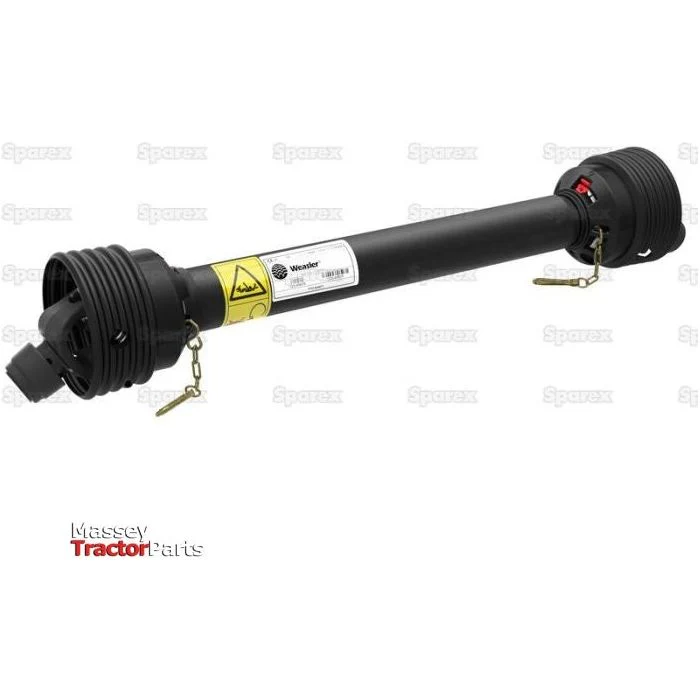

Weasler PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. - S.39018

Introducing the Weasler PTO Shaft, designed for optimal performance and durability. With an impressive HP rating of 80HP at 540RPM, this shaft is part of the renowned German Series AW36/W2500, ensuring reliability for your agricultural needs.

Key Features:

• Alternative to: 166269
• Brand: Weasler
• German Series: AW36/W2500
• Guard Type: Easylock
• HP Rating @ 540RPM: 80
• HP Rating Range @ 540RPM: 55 to 119
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Kilowatt Power Rating @ 540RPM: 60

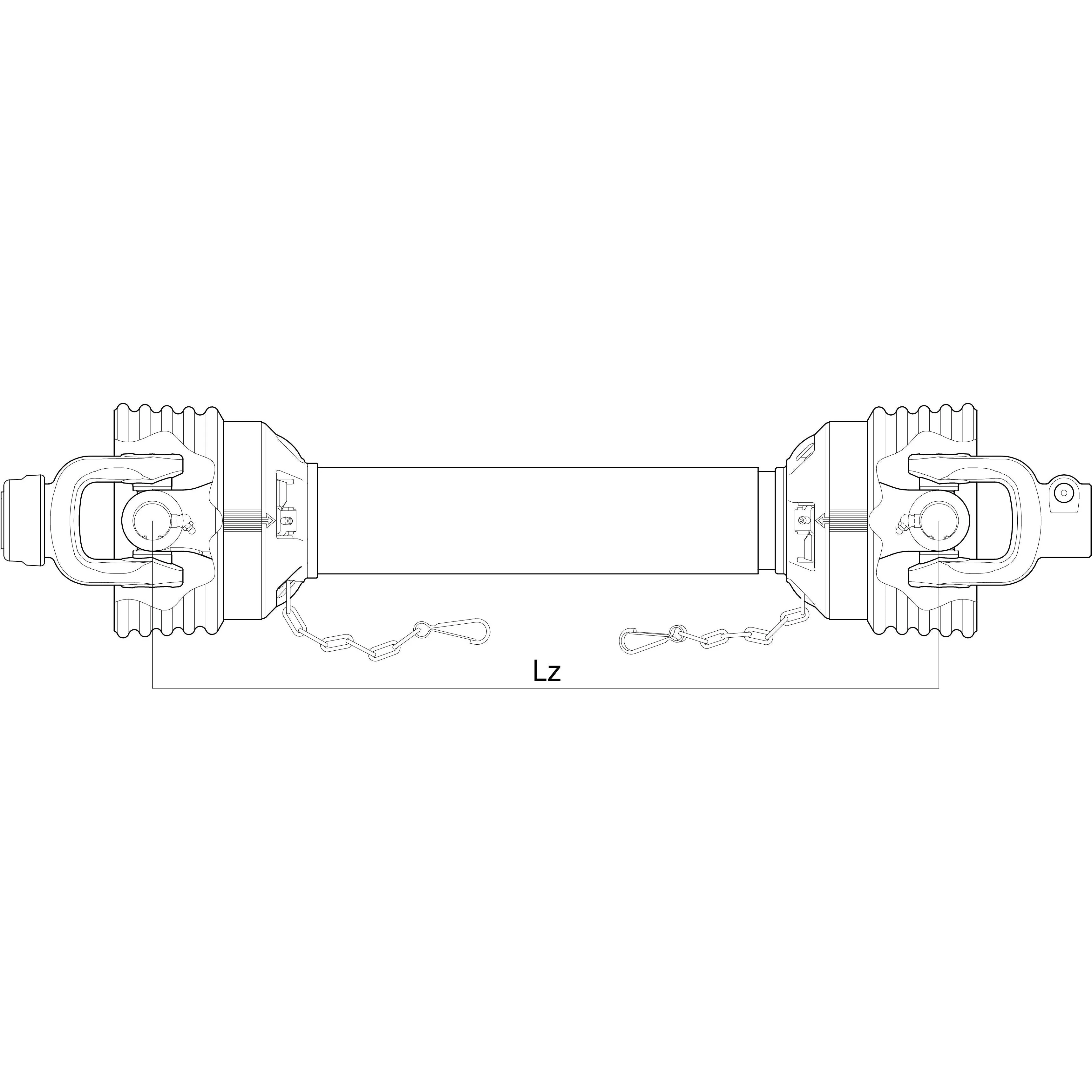

• Lz Length (mm): 1010
• PTO Series: AW36/W2500
• Reference: 1600-7902-101
• Tariff Code: 8483908990
• Torque (Nm): 1900
• Torque Range: 1245 - 2250Nm
• Total Closed Length (mm): 1250
• Tractor End: 1 3/8'' x 6 Spline Q.R.
• Tube Profile: Star
• Tube Ref: S4/S5
• Universal Joint Dimensions: 36 x 89mm

Related Products:

Explore our range of compatible products: 20478, 24820, 24821, 4820, 4821, 59613, 59632, 117878, 117879, 117880, 117897, 117914.

Additional Information:

This product is not associated with any particular OEM part number or specific make or model, making it a versatile choice for various applications.
