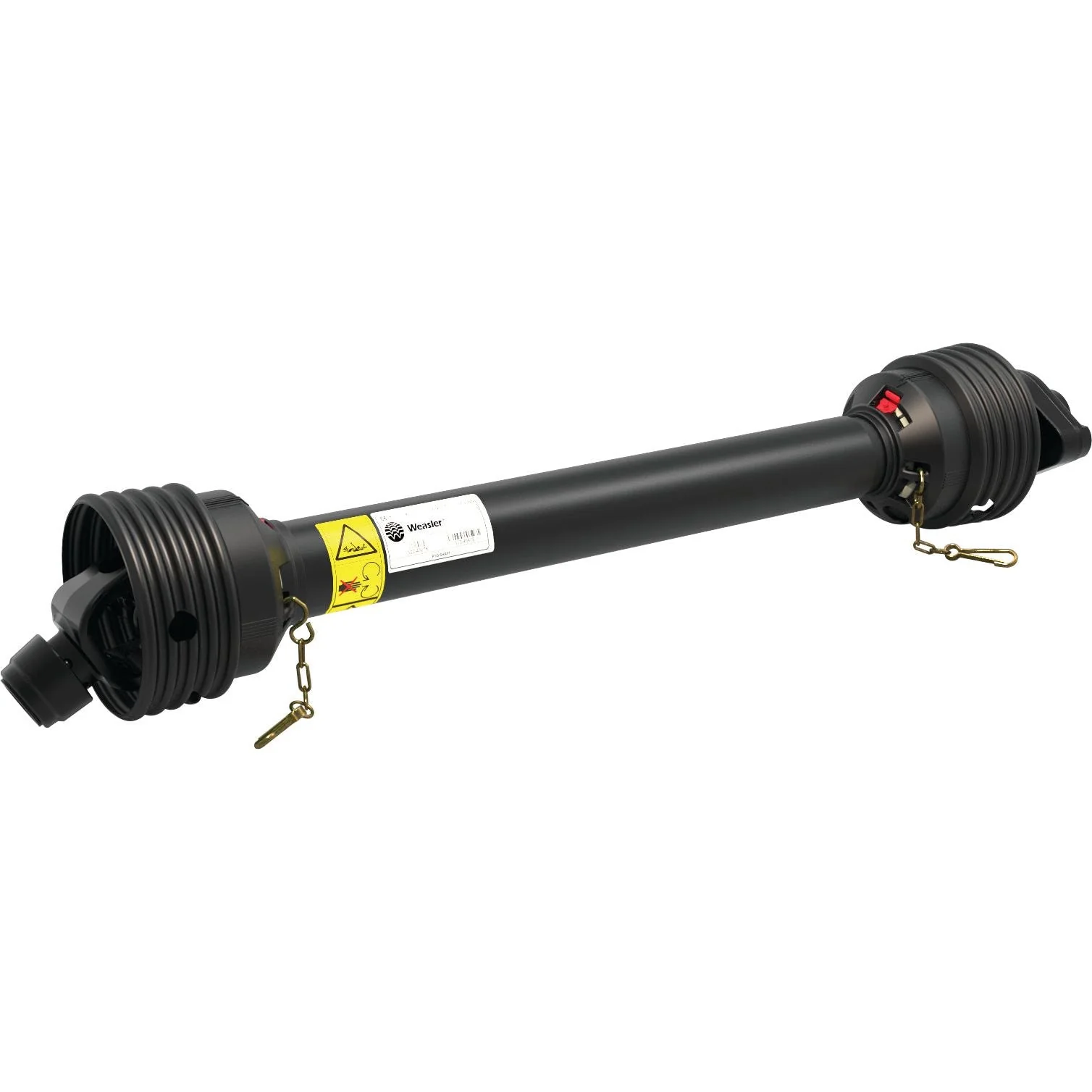

PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/4'' x 6 Spline Shear Bolt Limiter - S.143666

HP Rating @ 540RPM: 80HP
German Series: AW36/W2500

Product Specifications

• Alternative Brand: Weasler
• Clutch Setting: 3330 Nm
• Guard Type: Easylock
• HP Rating @ 540RPM: 80 HP
• HP Rating Range @ 540RPM: 55 to 119 HP
• Implement End: 1 3/4'' x 6 Spline Shear Bolt Limiter
• Kilowatt Power Rating @ 540RPM: 60 kW
• Lz Length: 1010 mm
• PTO Series: AW36/W2500
• Reference: 1600-7918-10123
• Related Products: 24820, 24821, 4820, 4821, 59613, 59632, 6737, 117878, 117879, 117897, 117914
• Shearbolt Clutch Bolt Diameter: 10 mm
• Shearbolt Clutch Radius: 64 mm
• Tariff Code: 8483908990
• Torque: 1864 Nm
• Torque Range: 1245 - 2250 Nm
• Total Closed Length: 1286 mm
• Tractor End: 1 3/8'' x 6 Spline Slide Lock
• Tube Profile: Star
• Tube Reference: S4/S5
• Universal Joint Dimensions: 36 x 89 mm

Suitable For Information

This product is not associated with any particular make or model.

Manufacture Information

This product is not associated with any particular OEM part number.
