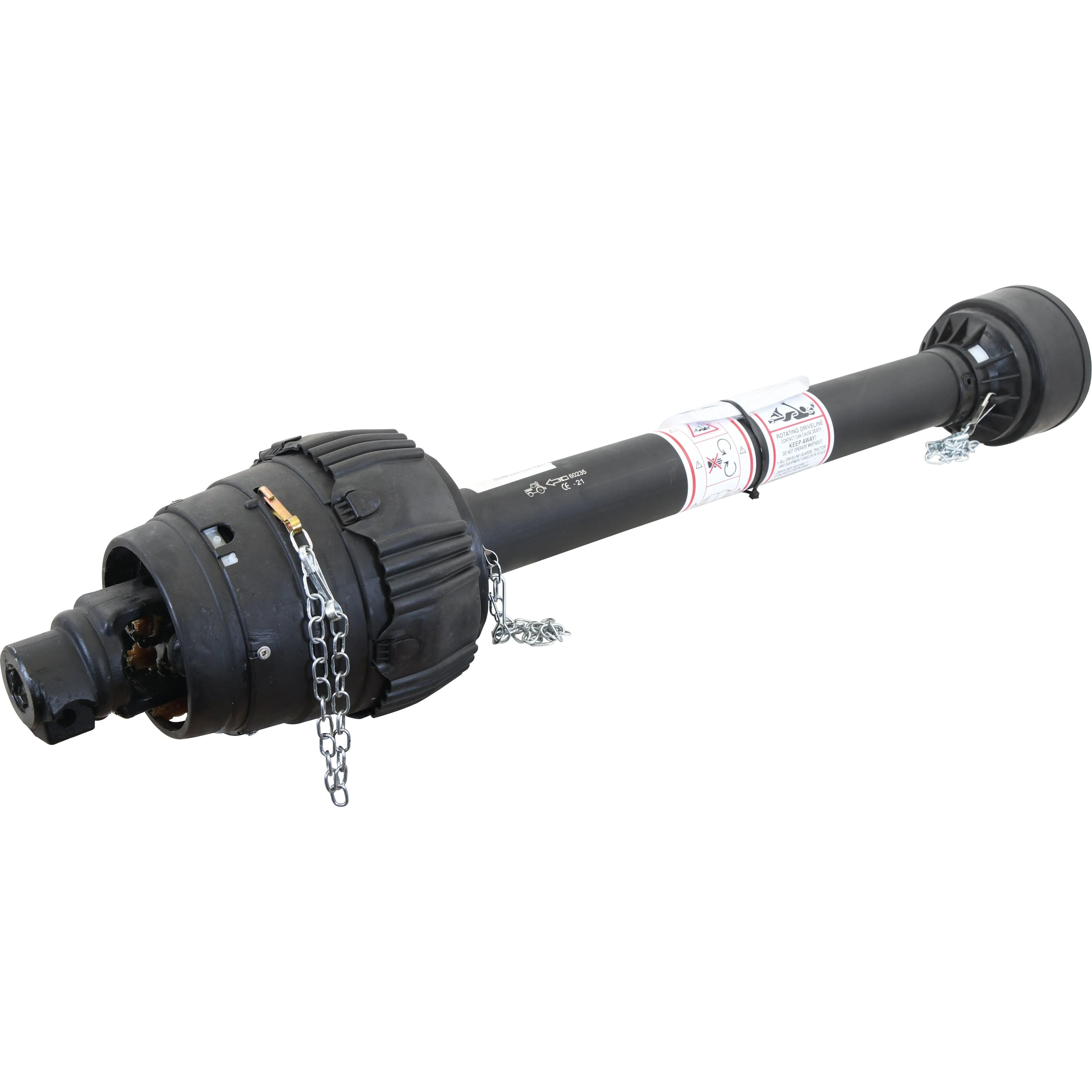

Sparex PTO Shaft - EUCV Wide Angle

Introducing the Sparex PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a robust HP rating of 53HP at 540RPM, making it an essential component for various agricultural applications. The shaft is part of the German Series AW35/W2480, ensuring compatibility and reliability.

Product Specifications

• Brand: Sparex
• German Series: AW35/W2480
• HP Rating @ 540RPM: 53
• HP Rating Range @ 540RPM: Up to 54
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Kilowatt Power Rating @ 540RPM: 39
• Lz Length (mm): 970
• PTO Series: AW35/W2480
• Related Products: 51153
• Tariff Code: 8483908990
• Torque (Nm): 695
• Torque Range: 335 - 1240Nm
• Total Closed Length (mm): 1200
• Tractor End: 1 3/8'' x 6 Spline 80° W.A.
• Tube Profile: Lemon
• Tube Ref: 1b/2a
• Universal Joint Dimensions: 32 x 76 & 27 x 94mm

Compatibility Information

This PTO shaft is designed for universal application and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring versatility across various machinery.

Product SKU: SP-29005
