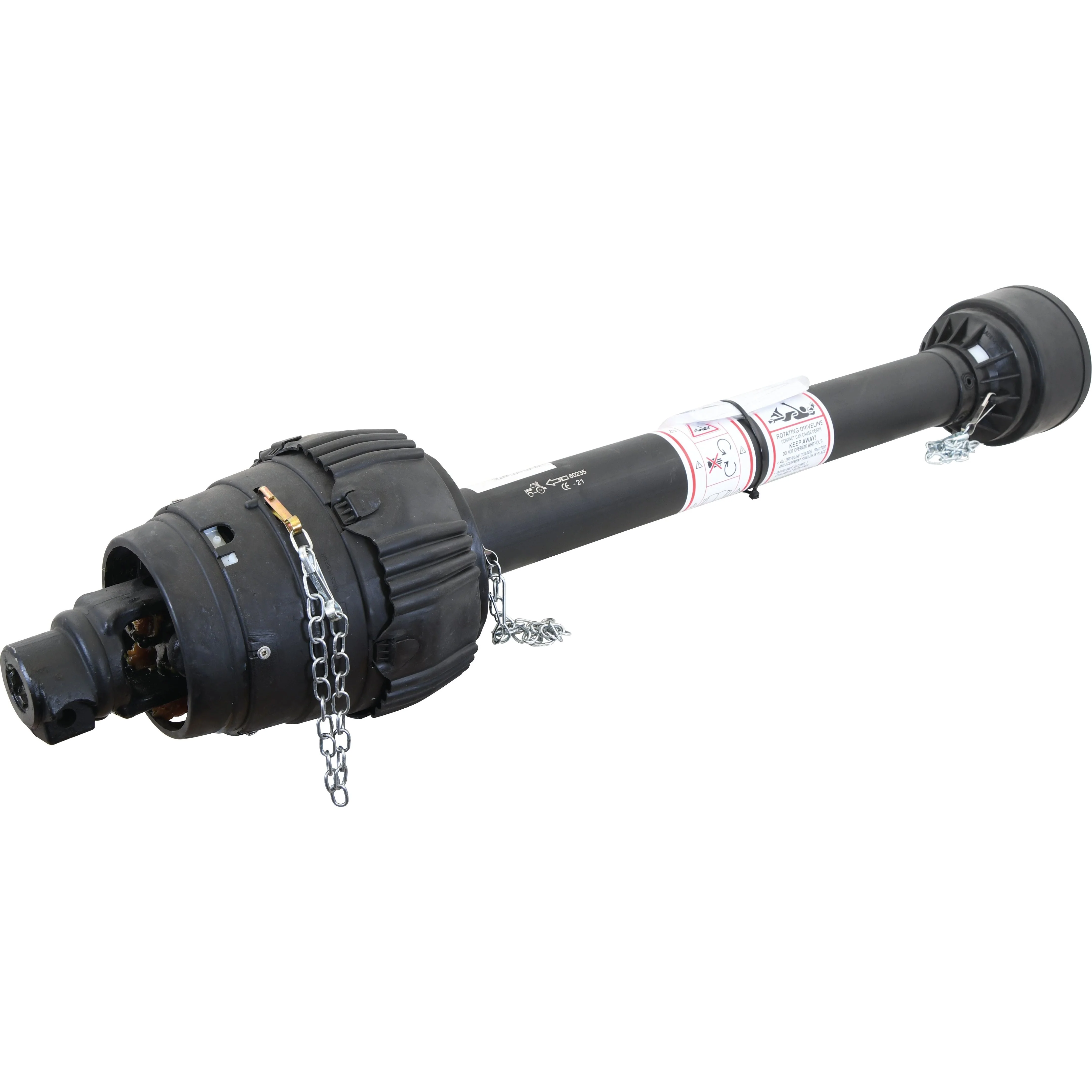

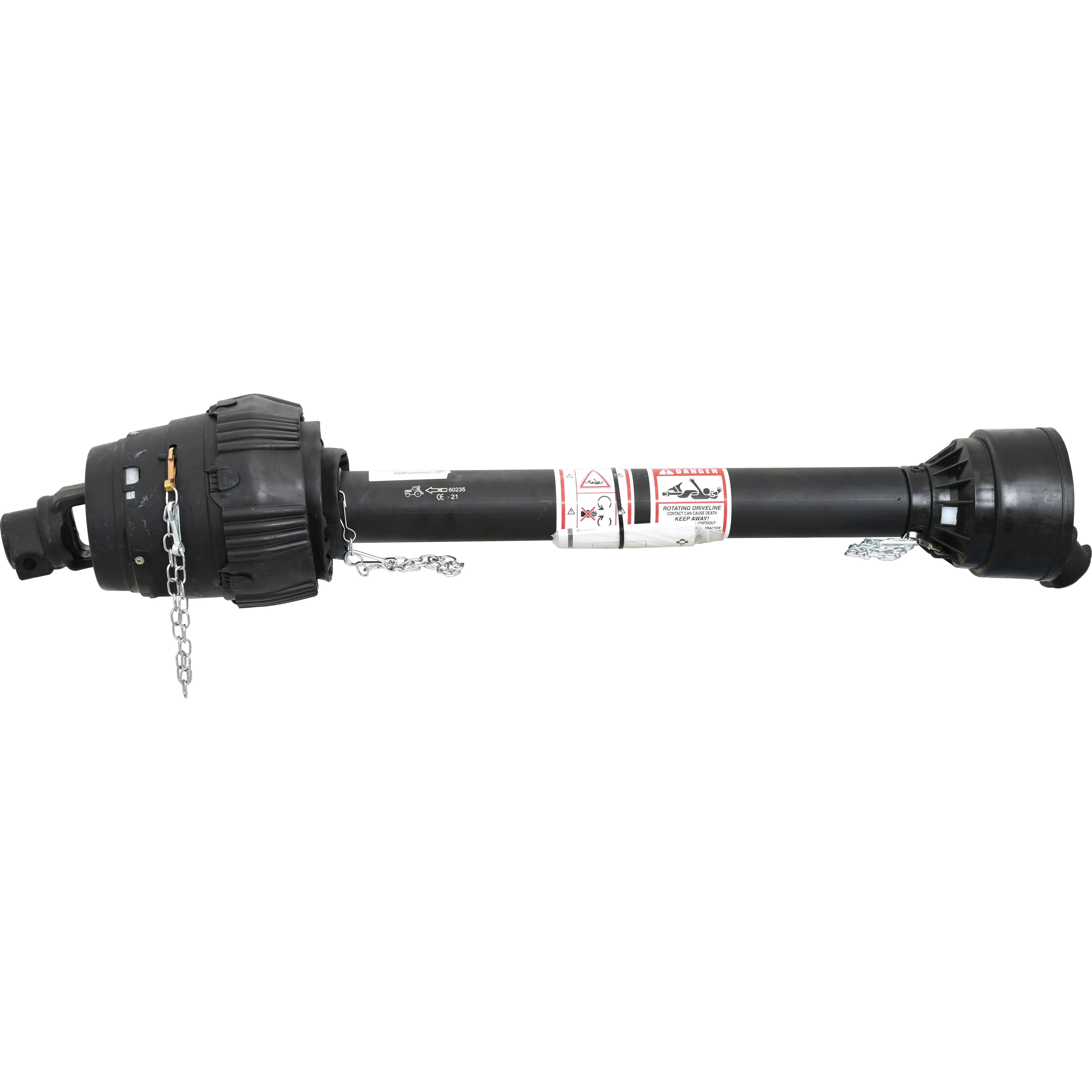

Sparex PTO Shaft - EUCV Wide Angle

Length: 893mm | Implement End: 1 3/8'' x 6 Spline Q.R. | Tractor End: 1 3/8'' x 6 Spline 80° W.A.

HP Rating @ 540RPM: 60HP | Series: AB6-80°/A6-80°

Product Specifications

• Brand: Sparex
• HP Rating @ 540RPM: 60
• HP Rating Range @ 540RPM: 55 to 119
• Kilowatt Power Rating @ 540RPM: 44
• Torque (Nm): 1450
• Torque Range: 1245 - 2250Nm
• Total Closed Length (mm): 1250
• Lz Length (mm): 893
• Tube Profile: Triangle
• Tube Ref: 24516/12517
• Universal Joint Dimensions: 32 x 76 & 27 x 94mm
• PTO Series: AB6-80°/A6-80°
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Tractor End: 1 3/8'' x 6 Spline 80° W.A.
• Tariff Code: 8483908990

Compatibility Information

This PTO shaft is designed for universal application and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number.
