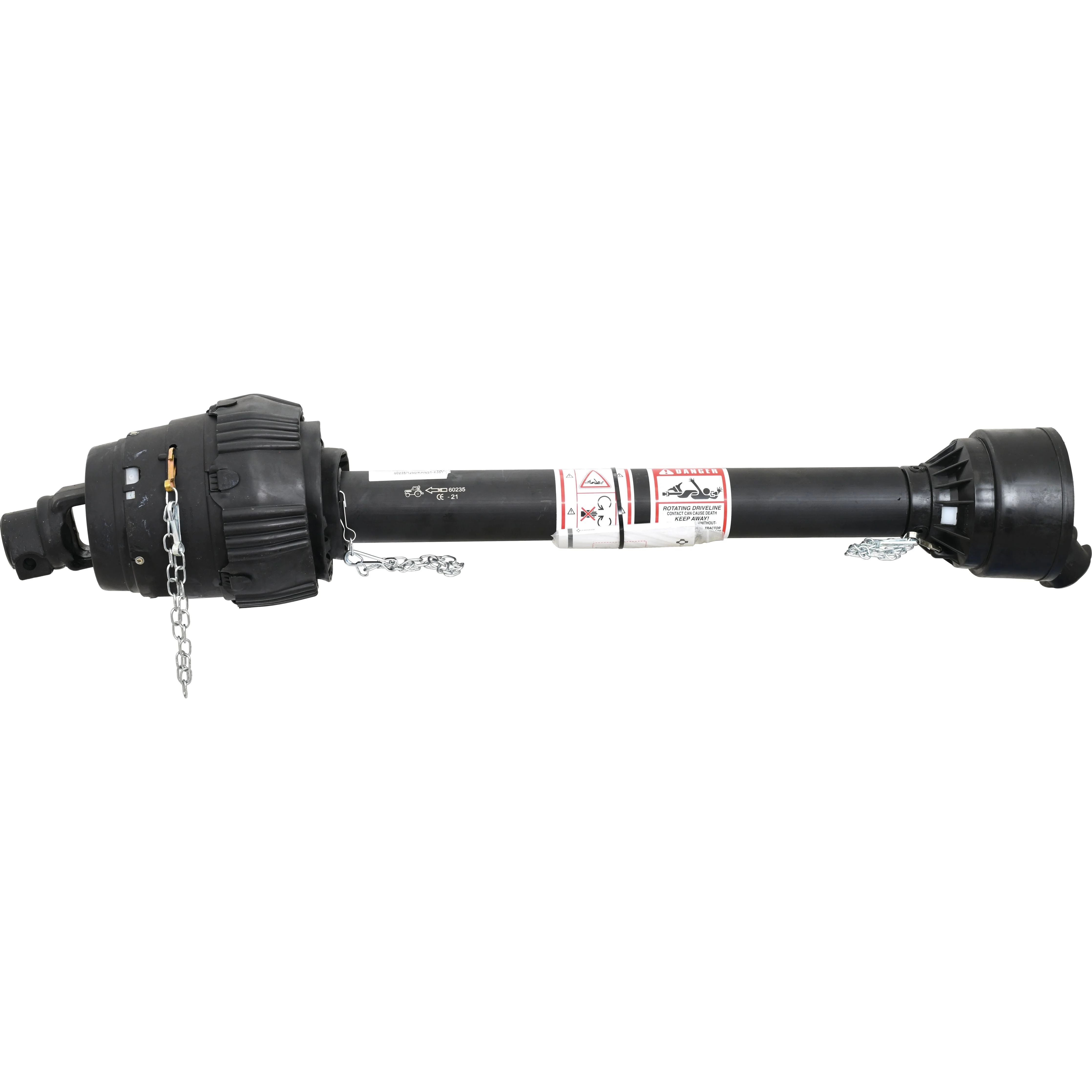

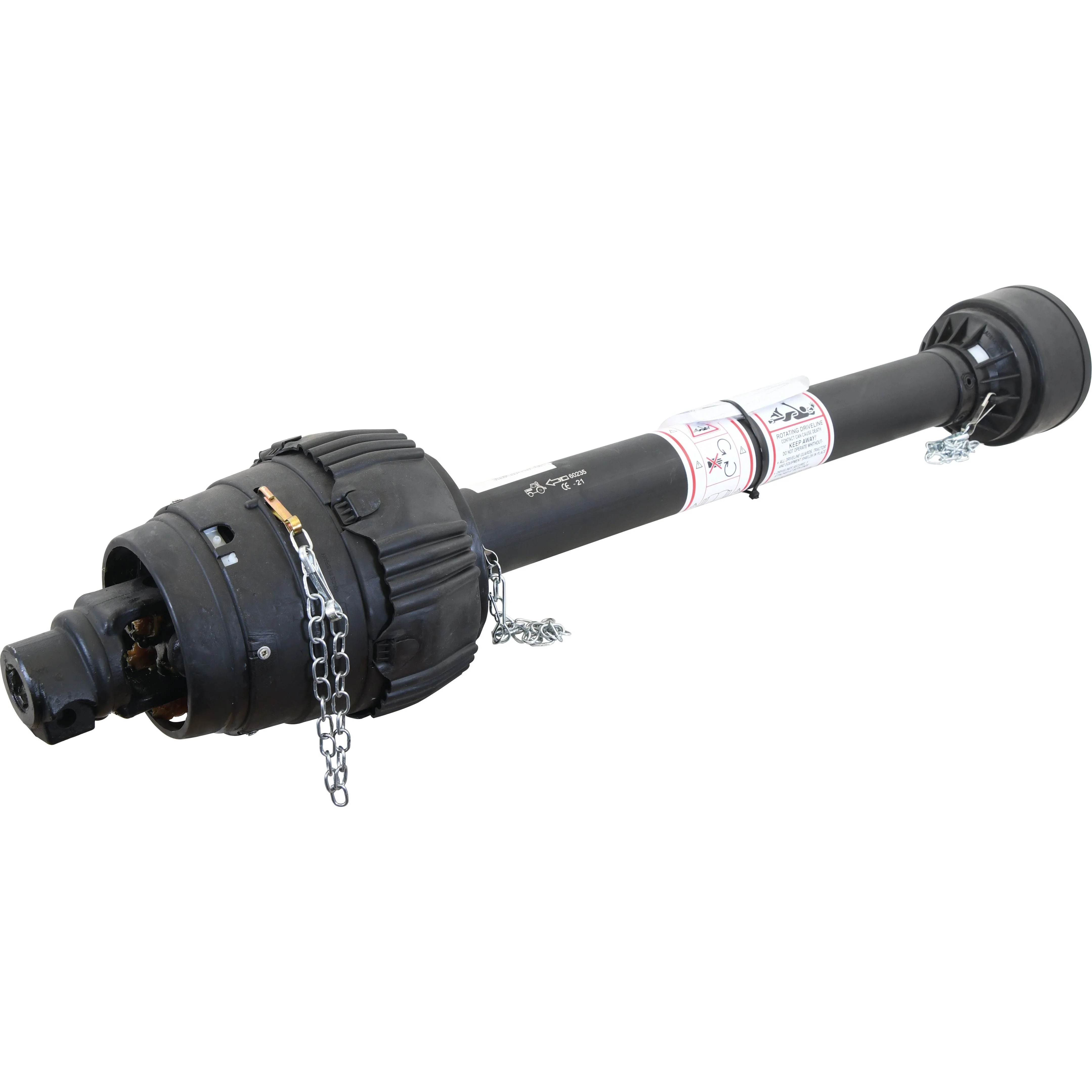

Sparex PTO Shaft - EUCV Wide Angle

Product Title: Sparex PTO Shaft - EUCV Wide Angle - One End, (Lz) Length: 843mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. | Sparex Part No. S.13590

Product Overview

The Sparex PTO Shaft is engineered for optimal performance with a horsepower rating of 60HP at 540RPM, making it an essential component for various agricultural applications. Designed with the Italian Series AB6-80°/A6-80°, this PTO shaft ensures reliability and efficiency in power transfer.

Product Specifications

• Brand: Sparex
• HP Rating @ 540RPM: 60
• HP Rating Range @ 540RPM: 55 to 119
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Italian Series: AB6-80°/A6-80°
• Kilowatt Power Rating @ 540RPM: 44
• Lz Length (mm): 843
• PTO Series: AB6-80°/A6-80°
• Related Products: 1237, 24817, 51153, 59628, 59629, 59632, 6078, 6450, 6648, 6665, 6669, 71522, 71525
• Tariff Code: 8483908990
• Torque (Nm): 1450
• Torque Range: 1245 - 2250Nm
• Total Closed Length (mm): 1200
• Tractor End: 1 3/8'' x 6 Spline 80° W.A.
• Tube Profile: Triangle
• Tube Reference: 24516/12517
• Universal Joint Dimensions: 32 x 76 & 27 x 94mm

Compatibility Information

This PTO shaft is designed for universal compatibility and is not associated with any specific make or model.

Manufacturer Information

This product is not linked to any particular OEM part number, ensuring versatility across various applications.
