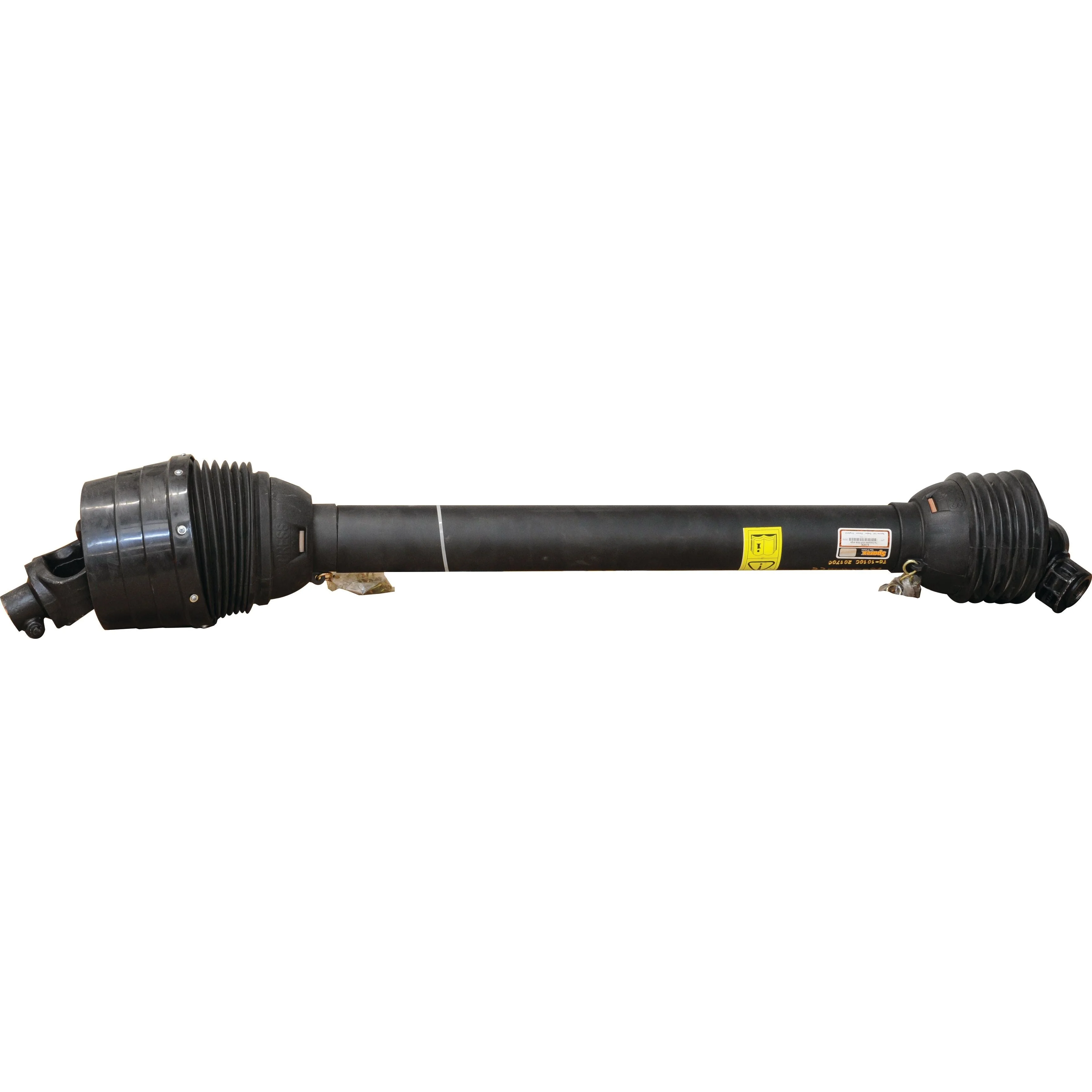

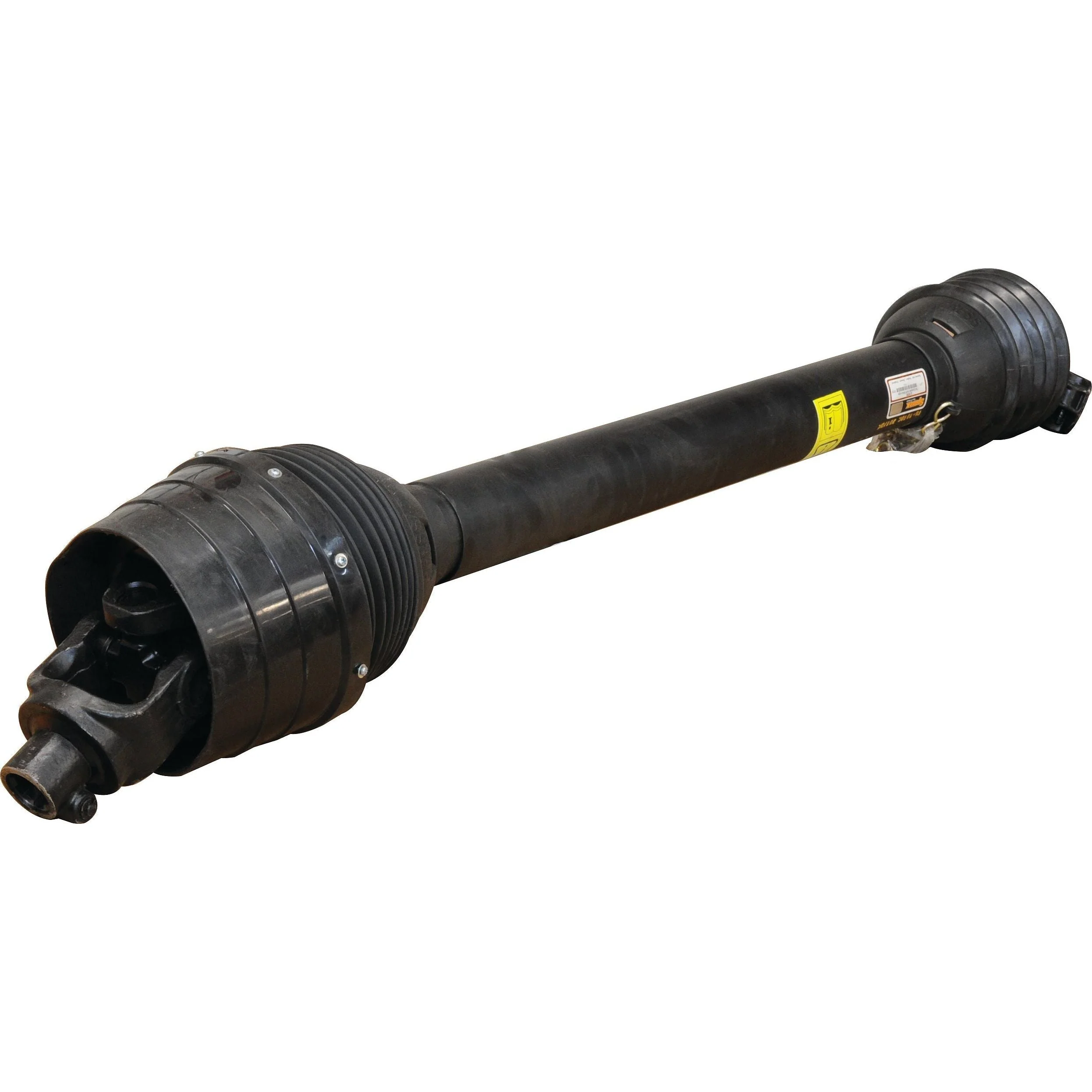

Sparex PTO Shaft - EUCV Wide Angle

Product Title: Sparex PTO Shaft - EUCV Wide Angle - One End, (Lz) Length: 1010mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. | Sparex Part No. S.119795

Product Overview

The Sparex PTO Shaft is engineered for optimal performance with a horsepower rating of 55HP at 540RPM, making it an essential component for various agricultural applications. This shaft is part of the Italian Series AB6-80°/A6-80°, designed to deliver reliable power transfer and durability.

Product Specifications

• Brand: Sparex
• HP Rating @ 540RPM: 55
• HP Rating Range @ 540RPM: 55 to 119
• Implement End: 1 3/8'' x 6 Spline Q.R.
• Italian Series: AB6-80°/A6-80°
• Kilowatt Power Rating @ 540RPM: 41

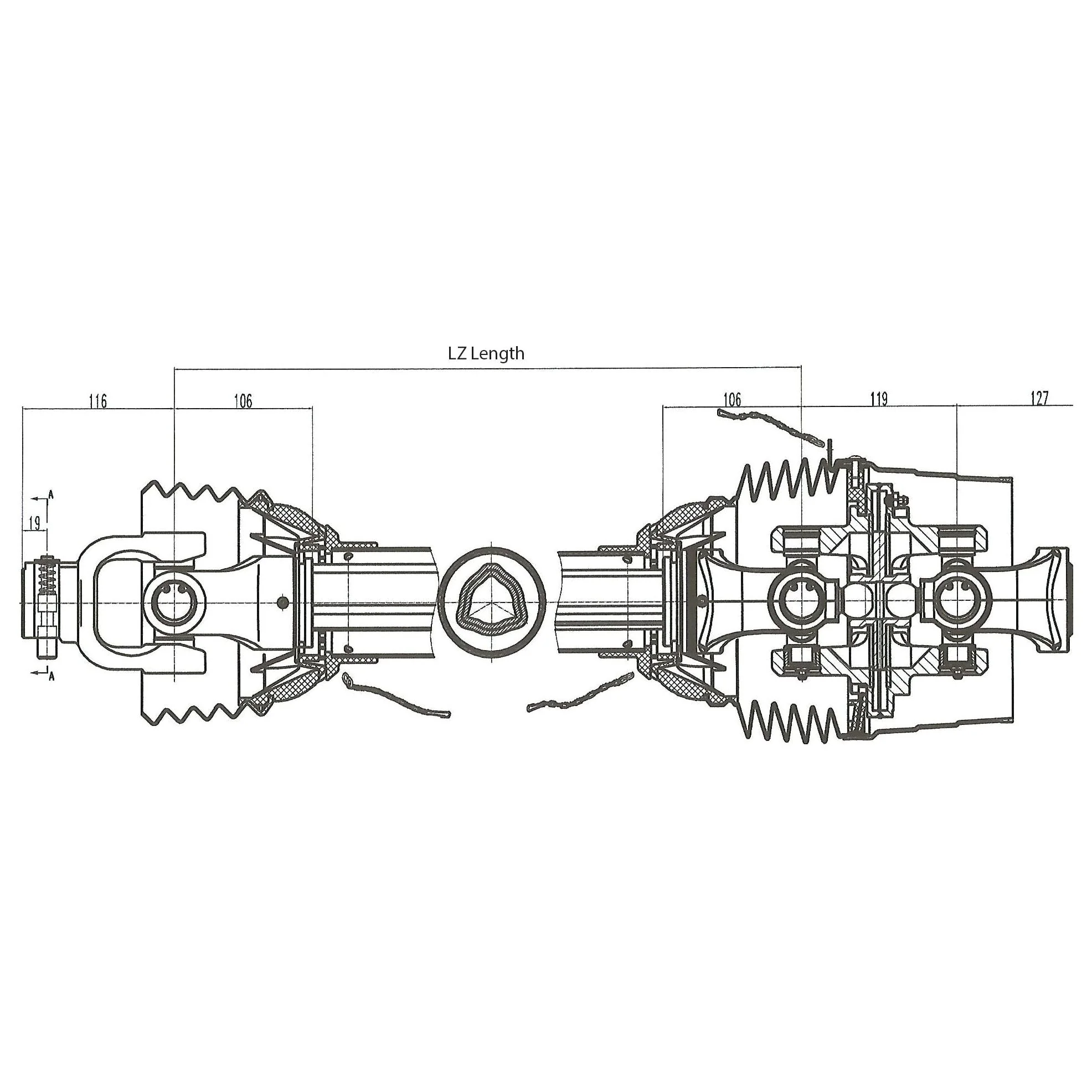

• Lz Length (mm): 1010
• Notes: No spare parts available
• PTO Series: AB6-80°/A6-80°
• Tariff Code: 8483908990
• Torque (Nm): 1450
• Torque Range: 1245 - 2250Nm
• Total Closed Length (mm): 1372
• Tractor End: 1 3/8'' x 6 Spline 80° W.A.
• Tube Profile: Triangle
• Tube Ref: 24516/12517
• Universal Joint Dimensions: 27 x 92 & 30.2 x 100mm

Compatibility Information

This PTO shaft is not associated with any specific make or model, providing versatility for various applications.

Manufacturer Information

This product does not correspond to any particular OEM part number, ensuring a broad range of compatibility.
