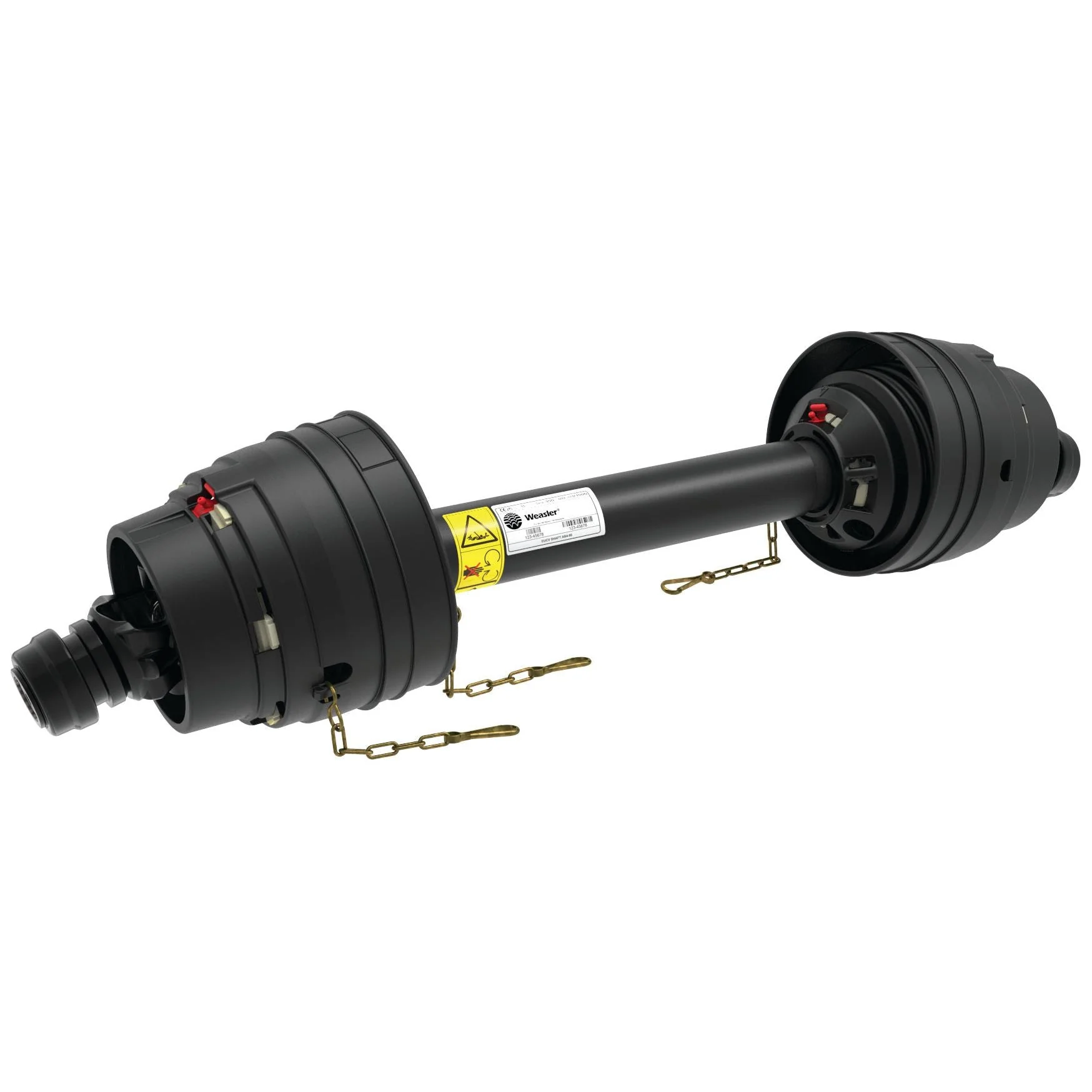

Weasler PTO Shaft - EUCV Wide Angle - Both Ends

Length: 1010mm | Implement End: 1 3/8'' x 6 Spline 80° W.A. | Tractor End: 1 3/8'' x 6 Spline 80° W.A.

Product Overview

The Weasler PTO Shaft, part of the AW35/W2480 series, is engineered for optimal performance with a horsepower rating of 52HP at 540RPM. This robust PTO shaft is designed to handle a power range of up to 54HP, making it an ideal choice for various agricultural applications.

Product Specifications

• Brand: Weasler
• German Series: AW35/W2480
• HP Rating @ 540RPM: 52
• HP Rating Range @ 540RPM: up to 54
• Kilowatt Power Rating @ 540RPM: 39

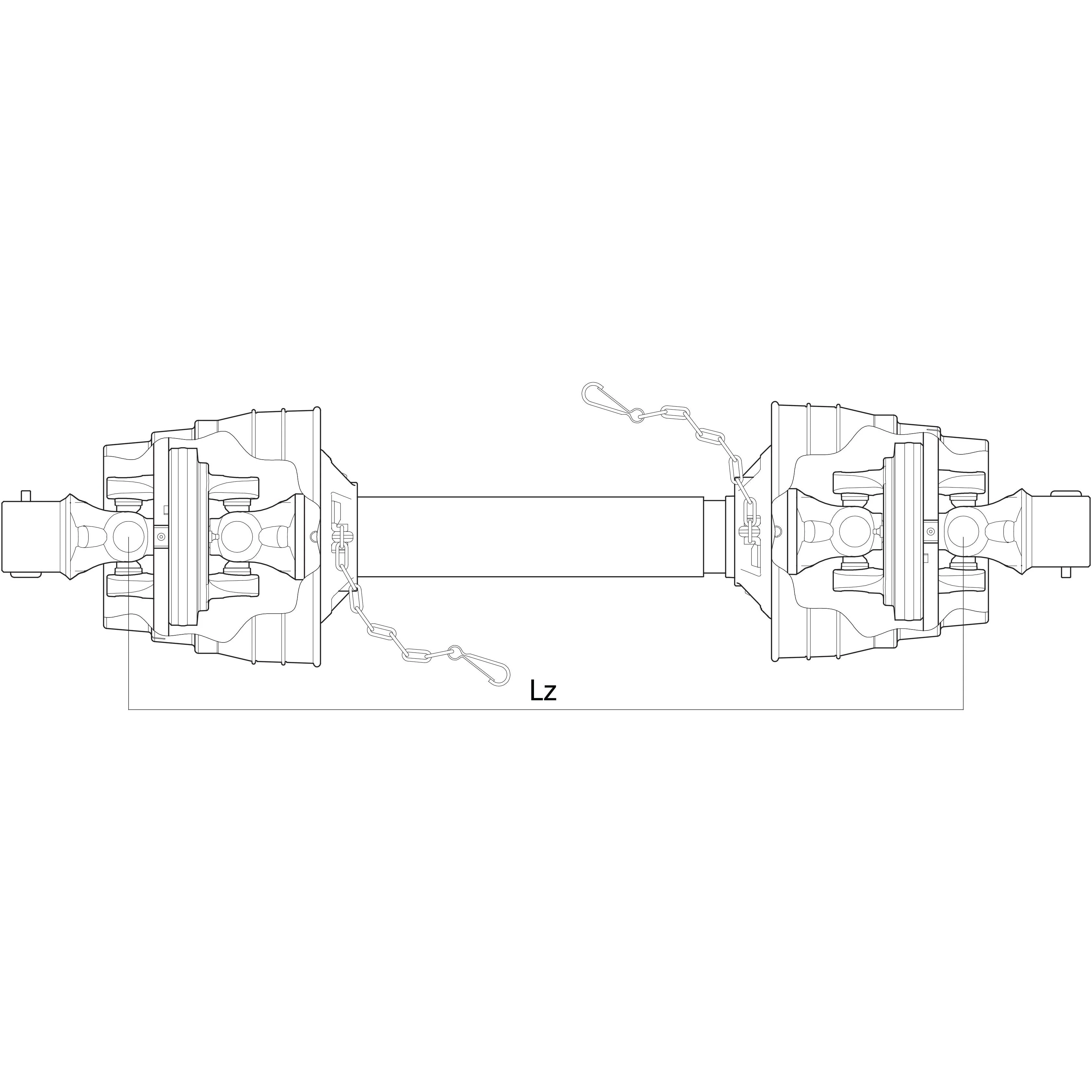

• Lz Length: 1010mm
• PTO Series: AW35/W2480
• Reference: 1855-7602-101
• Related Products: 50695, 50698, 51153, 56634, 117847, 117848, 117849, 117856
• Tariff Code: 8483908990
• Torque: 335 - 1240Nm
• Total Closed Length: 1210mm
• Tube Profile: Lemon
• Tube Ref: 1bGA/2aG
• Universal Joint Dimensions: 32 x 76 & 27 x 94mm

Compatibility Information

This PTO shaft is not associated with any specific make or model, providing versatility for various applications.

Manufacture Information

This product does not correspond to any particular OEM part number, ensuring a broad range of compatibility.

Supplier: Sparex | SKU: SP-39030
