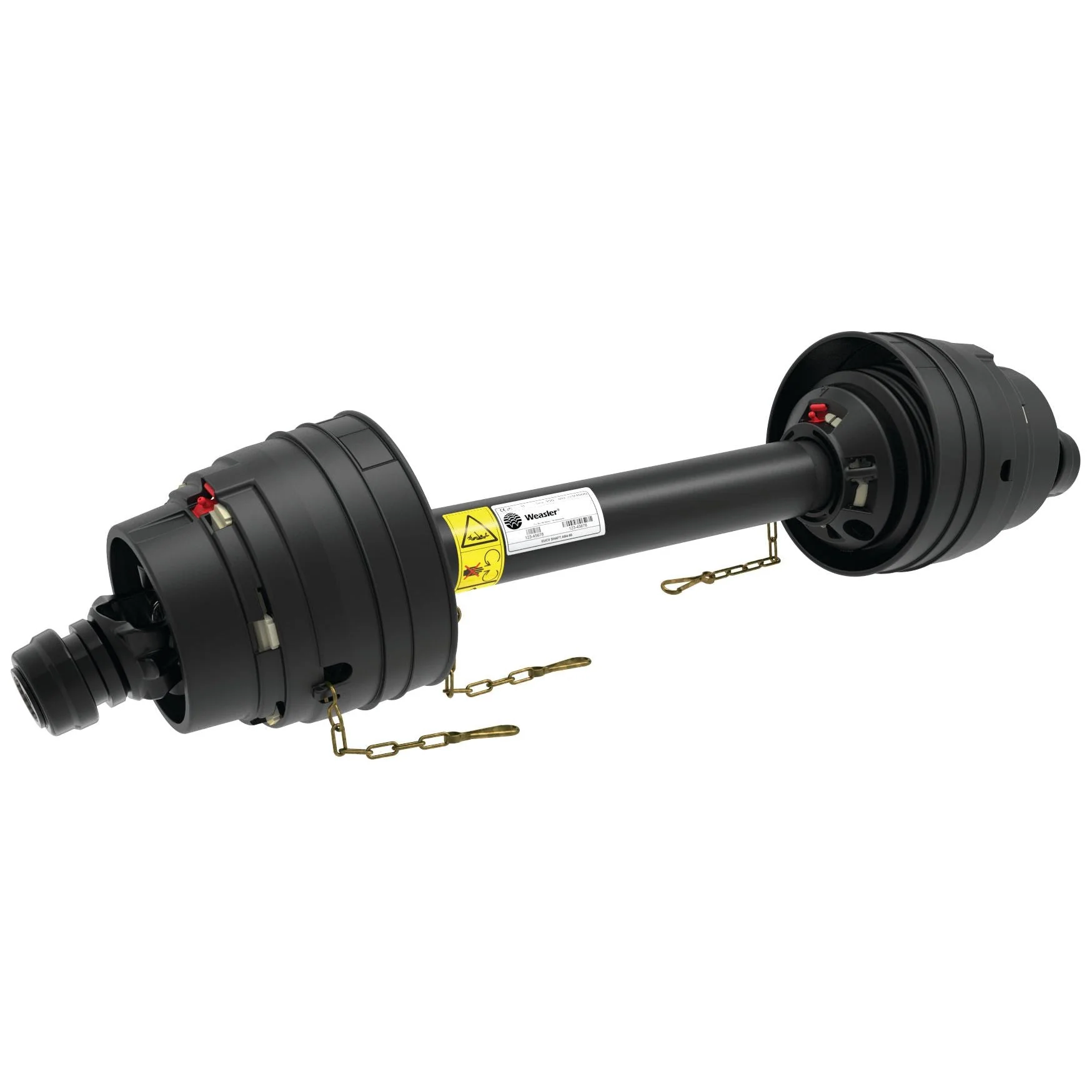

Weasler PTO Shaft - EUCV Wide Angle

Introducing the Weasler PTO Shaft, designed for optimal performance and durability. This high-quality PTO shaft features a robust HP rating of 36HP at 540RPM, making it an excellent choice for various agricultural applications. The shaft is part of the German Series AW21/W2380, ensuring reliability and efficiency.

Product Specifications

• Brand: Weasler
• German Series: AW21/W2380
• HP Rating @ 540RPM: 36
• HP Rating Range @ 540RPM: Up to 54
• Implement End: 1 3/8'' x 6 Spline 80° W.A.
• Kilowatt Power Rating @ 540RPM: 26

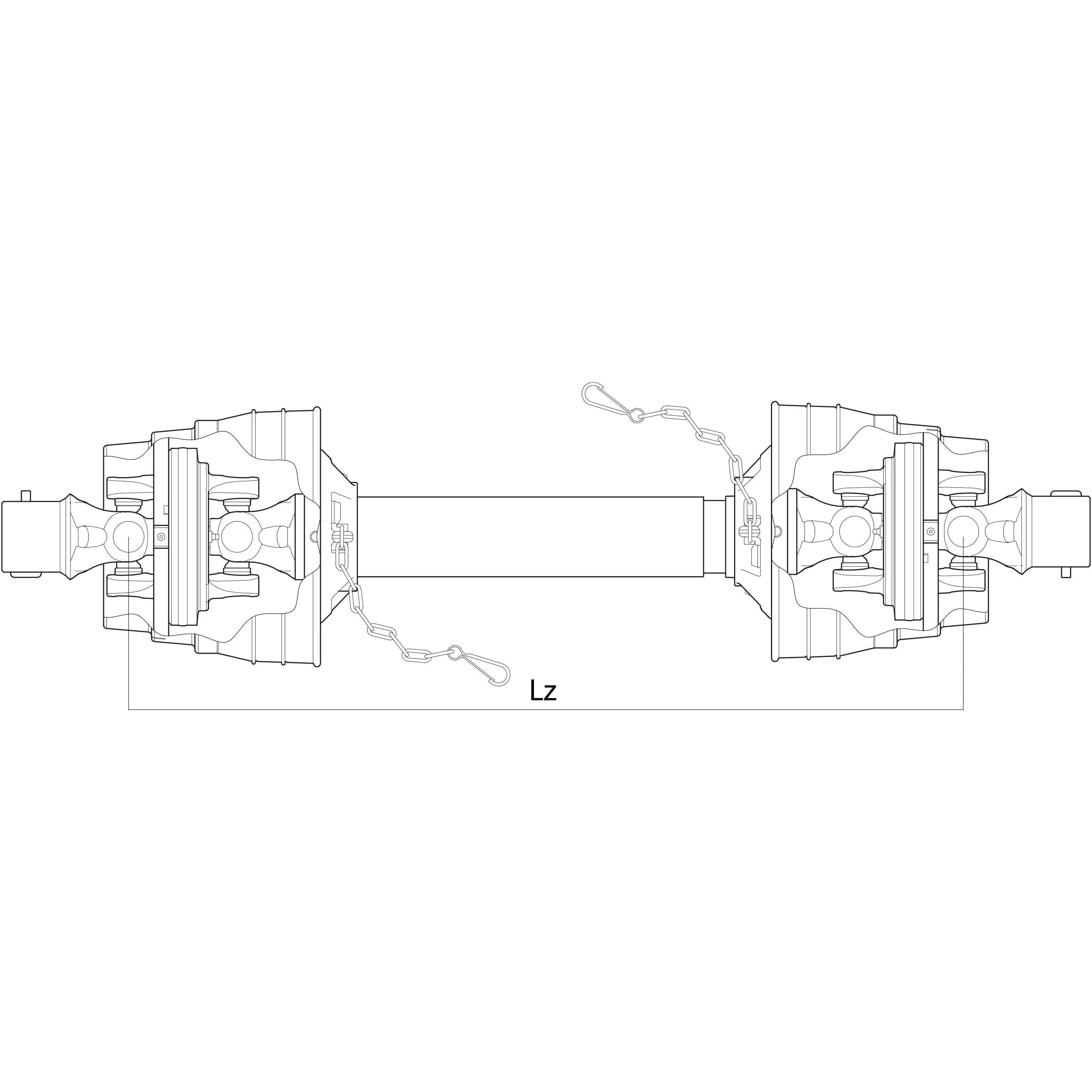

• Lz Length: 1010mm
• PTO Series: AW21/W2380
• Reference: 1855-7402-101
• Related Products: 39070, 50694, 50697, 51152, 53507, 59624, 59644, 6583, 6678, 115431, 115432, 115437, 115438, 115445
• Tariff Code: 8483908990
• Torque: 780 Nm (335 - 1240 Nm)
• Total Closed Length: 1210mm
• Tractor End: 1 3/8'' x 6 Spline 80° W.A.
• Tube Profile: Lemon
• Tube Reference: OvGA/1G
• Universal Joint Dimensions: 27 x 75 & 24 x 91mm

Compatibility Information

This PTO shaft is not associated with any specific make or model, providing versatility for various applications.

Manufacturer Information

This product does not correspond to any particular OEM part number, ensuring a broad range of compatibility.

Product Supplier: Sparex

Product Type: PTO Shaft

Product SKU: SP-39024
