Sparex PTO Shaft - EUCV Wide Angle - Both Ends

Length: 1010mm | Implement End: 1 3/8'' x 6 Spline 80° W.A. | Tractor End: 1 3/8'' x 6 Spline 80° W.A.

HP Rating @ 540RPM: 55HP | Series: AB6-80°/A6-80°

Product Specifications

• Brand: Sparex
• HP Rating @ 540RPM: 55
• HP Rating Range @ 540RPM: 55 to 119
• Kilowatt Power Rating @ 540RPM: 41
• Torque (Nm): 1450
• Torque Range: 1245 - 2250Nm
• Total Closed Length (mm): 1502

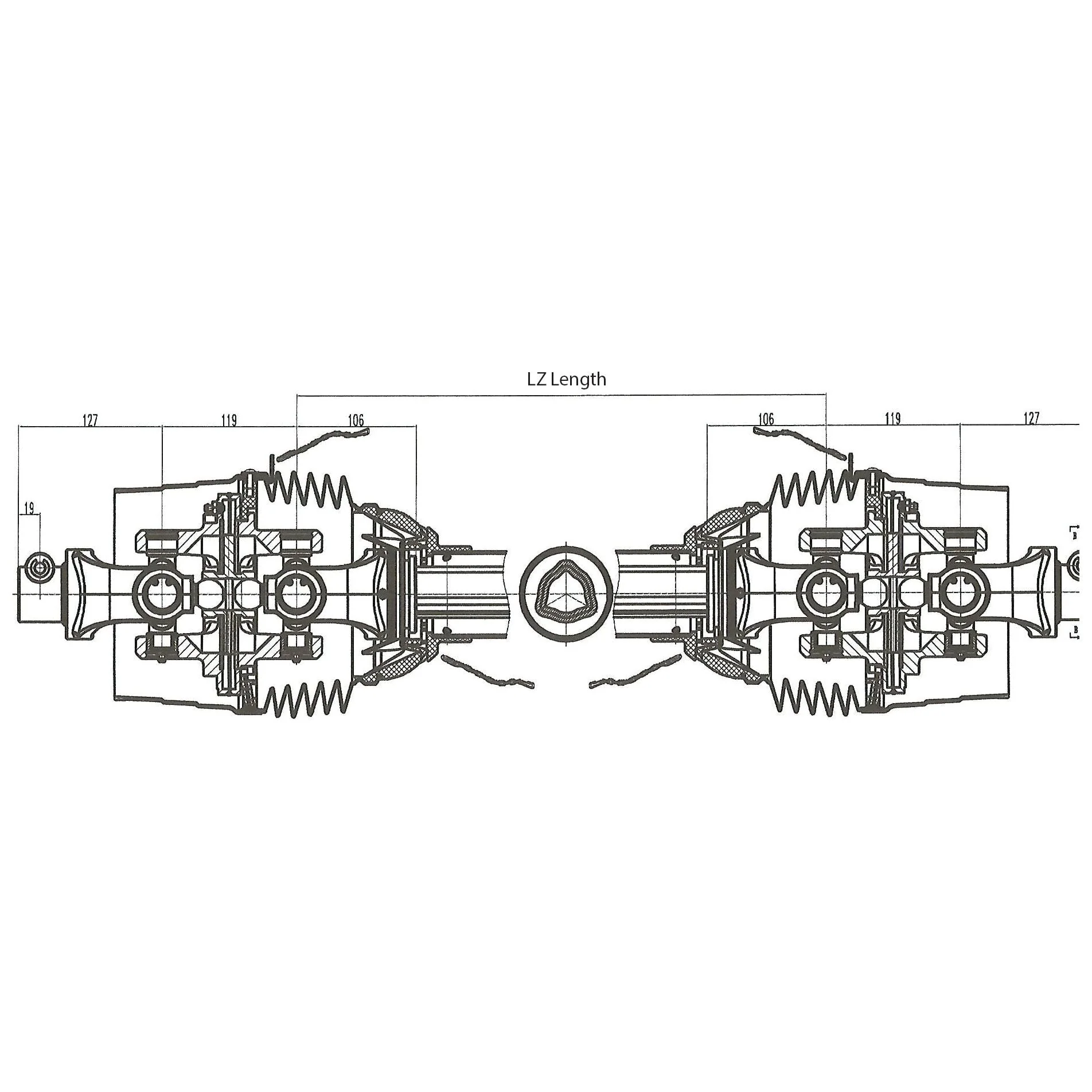

• Lz Length (mm): 1010
• Implement End: 1 3/8'' x 6 Spline 80° W.A.
• Tractor End: 1 3/8'' x 6 Spline 80° W.A.
• Tube Profile: Triangle
• Tube Ref: 24516/12517
• Universal Joint Dimensions: 27 x 92 & 30.2 x 100mm
• PTO Series: AB6-80°/A6-80°
• Tariff Code: 8483908990
• Notes: No spare parts available

Compatibility Information

This product is not associated with any particular make or model.

Manufacturer Information

This product is not associated with any particular OEM part number.
