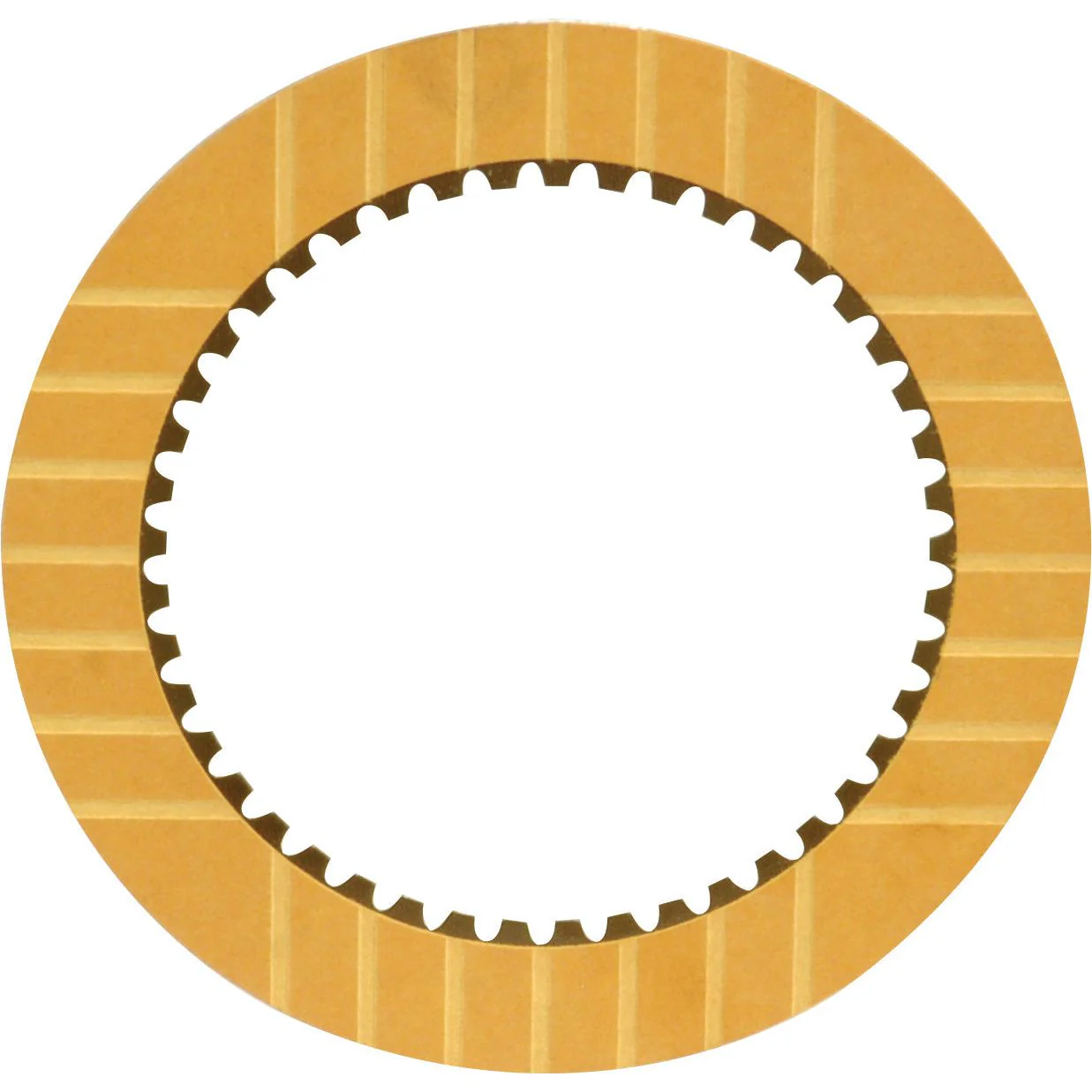

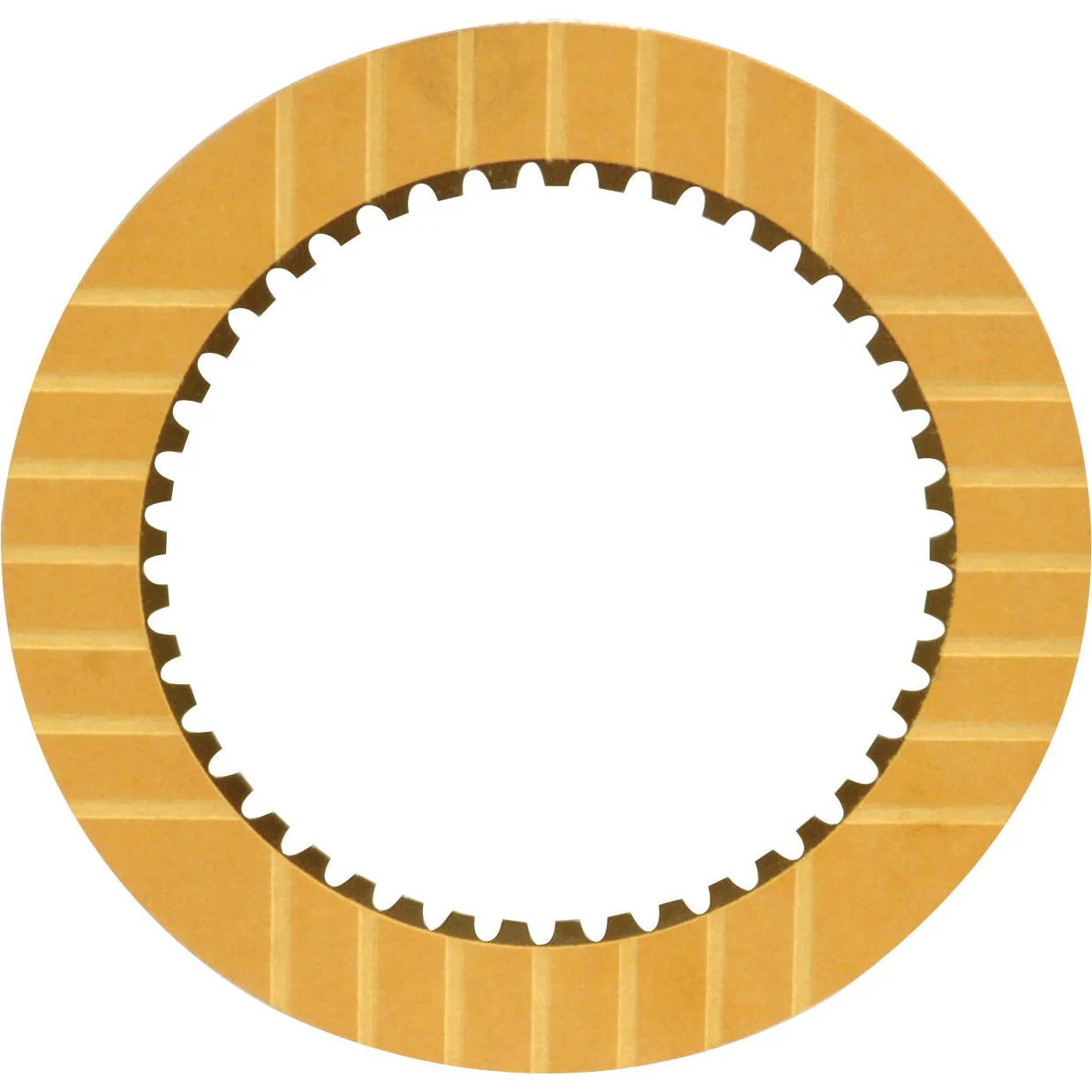

PTO Clutch Plate | Sparex Part No. S.72259

Product Specifications

• Brand: Sparex
• Material: Composite
• Outer Diameter (mm): 133.3
• Splines Inner Diameter (mm): 93
• Splines Outer Diameter (mm): 97.96
• Number of Splines: 45
• Tariff Code: 8483308090
• Thickness (mm): 1.59

Compatibility Information

This PTO Clutch Plate is compatible with a wide range of John Deere models, including:

1020, 1030, 1030OU, 1030VU, 1040, 1120, 1130, 1140, 1350, 1530, 1550, 1630, 1630OU, 1630VU, 1640, 1750, 1830, 1840, 1850, 2020, 2030, 2040, 2120, 2130, 2140, 2150, 2250, 2255, 2350, 2440, 2450, 2550, 2640, 2650, 2750, 3030, 3040, 3050, 3120, 3130, 3140, 3150, 3340, 3350, 3640, 3650, 4050, 4250, 4450, 820, 830, 840, 920, 930, 930VU, 940.

Manufacturer Information

This product is manufactured by John Deere and is identified by the following OEM part numbers:

AL69560, AL38240, AL38239, AT26632.

Product Type: Clutch Plate

Product SKU: SP-72259
