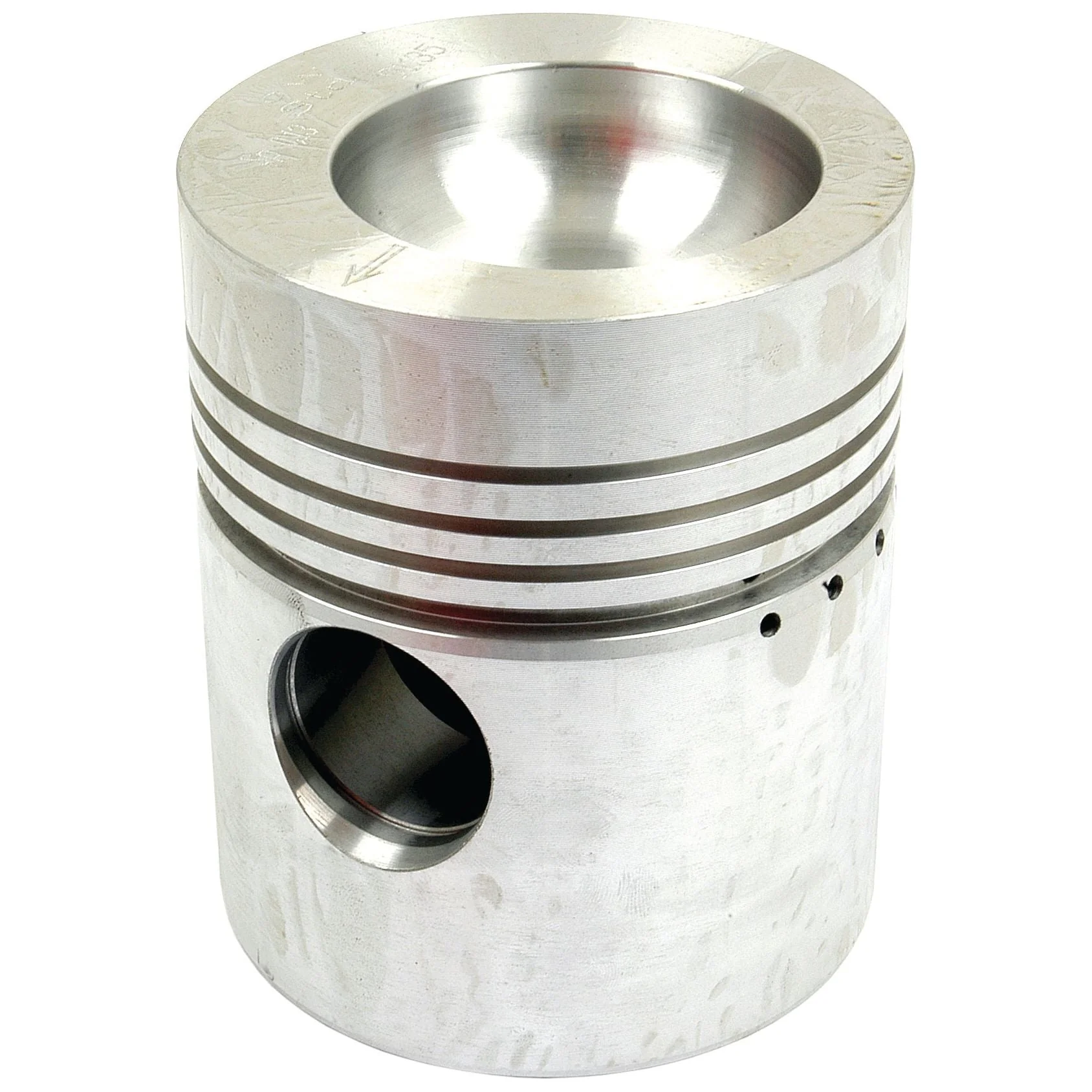

Piston (Standard) - S.40406

Upgrade your engine's performance with the Sparex Standard Piston. Designed for durability and efficiency, this piston is an essential component for various agricultural machinery.

Product Specifications

• Piston Length: 109.24 mm
• Compression Height: 61.57 mm
• Bore Diameter: 91.49 mm
• Chamber Depth: 18.97 mm
• Chamber Diameter: 59.82 mm
• Pin Diameter: 31.75 mm
• Number of Rings: 4
• Al Fin Ring Groove: No
• Crown Type: Dish Top
• Crown Diameter: 90.75 mm
• Height: 109.24 mm
• Size: Standard
• Type: Plain Bowl
• Tariff Code: 8409990090

Compatibility

This piston is compatible with a range of models from Perkins, Landini, and Massey Ferguson. Below is a list of specific models:

• Landini: 5500, 5530, 5560, 5830, 5840, 5860, 5870, ADVANTAGE 55, BLIZZARD 50, C5500, C5830, CF5030, CF5830, GLOBUS 50, REX 55, TREKKER 55
• Massey Ferguson: 135, 140, 148, 150, 152, 154, 154-4, 154C, 155, 158, 165, 165 US BUILT, 203, 20C, 20D, 2135, 2205, 230, 231, 233, 234, 235, 240, 244CF, 245, 250, 253, 254, 254-4, 254C, 255, 260, 30, 302, 304, 30B, 30D, 30E, 30H, 3165, 340, 342, 350, 353, 353LX, 354, 356CF, 360, 40B, 50, 550, 560, 65, 65 US BUILT, 765
• Perkins: AD3.152 (CE), AD4.203 (JE)

OEM Fitment Information

This piston is designed to fit OEM specifications for:

• Landini: 3638405M91, 742621M91, 89214, 189214, U5LP0034
• Massey Ferguson: 89214, 4224523Z91, 3638405M91, 742621M91, 4224523M91, U5LP0034
• Perkins: 89214
