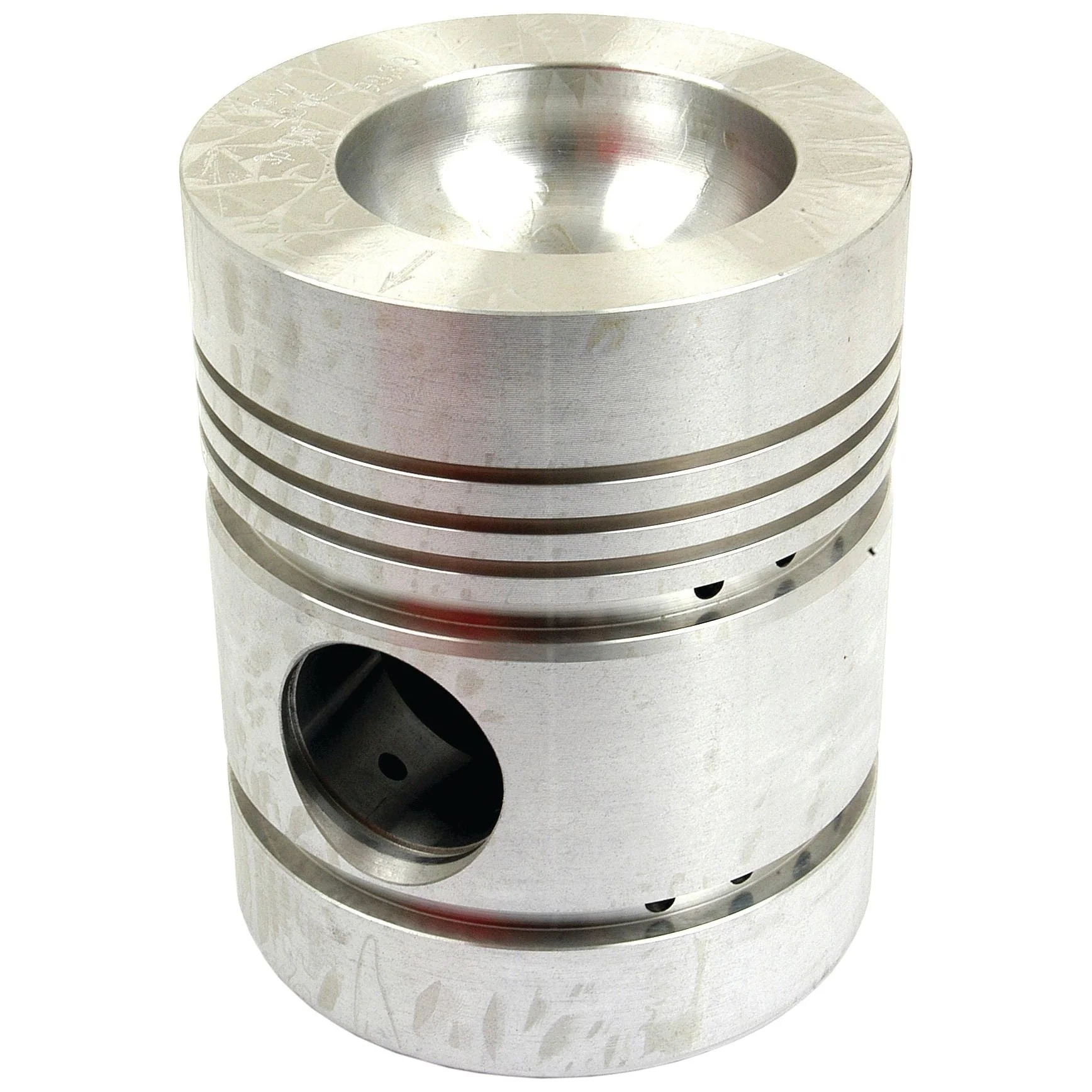

Piston (S.40410)

Upgrade your engine's performance with the high-quality Sparex Piston. Designed for durability and efficiency, this piston is an essential component for various agricultural machinery. Below are the detailed specifications:

Product Specifications

• Piston Length: 120.70 mm
• Compression Height: 70.35 mm
• Bore Diameter: 98.48 mm
• Chamber Depth: 20.47 mm
• Chamber Diameter: 60.40 mm
• Pin Diameter: 34.93 mm
• Number of Rings: 5
• Al Fin Ring Groove: No
• Crown Type: Dish Top
• Crown Diameter: 97.69 mm
• Height: 121.01 mm
• Type: Plain Bowl
• Tariff Code: 8409990090

Compatible Models

This piston is suitable for a wide range of models, including:

• Landini: 6500, 6530, 6550, 6560, 6830, 6840, 6860, 6870, 6880, 7500, 7530, 7550, 7560, 7830, 7860, 7870, 7880, ADVANTAGE 65, ADVANTAGE 75, BLIZZARD 65, BLIZZARD 75, C6500, C6830, CF6830, REX 65, REX 75, TREKKER 65, TREKKER 70, TREKKER 75
• Massey Ferguson: 10, 168, 174, 174C, 175, 175 US BUILT, 178, 184, 240, 255, 261, 265, 273, 274, 274SK, 275, 283, 284, 3050, 307, 30D, 330, 362, 365, 372, 373, 373LX, 374, 375, 375E BRAZILIAN, 377, 383, 384, 387, 50, 50B, 50C, 50D, 50E, 50EX, 50H, 50HX, 565, 575, 6000, 60H, 675
• Perkins: A4.236 (LD)
• Volvo: 2200, 2204, 2250, 2254, T500

OEM Fitment Information

This piston is compatible with the following OEM part numbers:

• Ford / New Holland: 505469
• JCB: 02100007
• Landini: 68301, U5LP0035, 743110M91, 168301, 3637516M91
• Massey Ferguson: U5LP0035, 68301, 743110Z91, 3637516M91, 743110V91, 743110M91
• Perkins: 68301
• Volvo: PE68301

Enhance your engine's efficiency and reliability with the Sparex Piston (S.40410). Order now to ensure optimal performance for your machinery!
