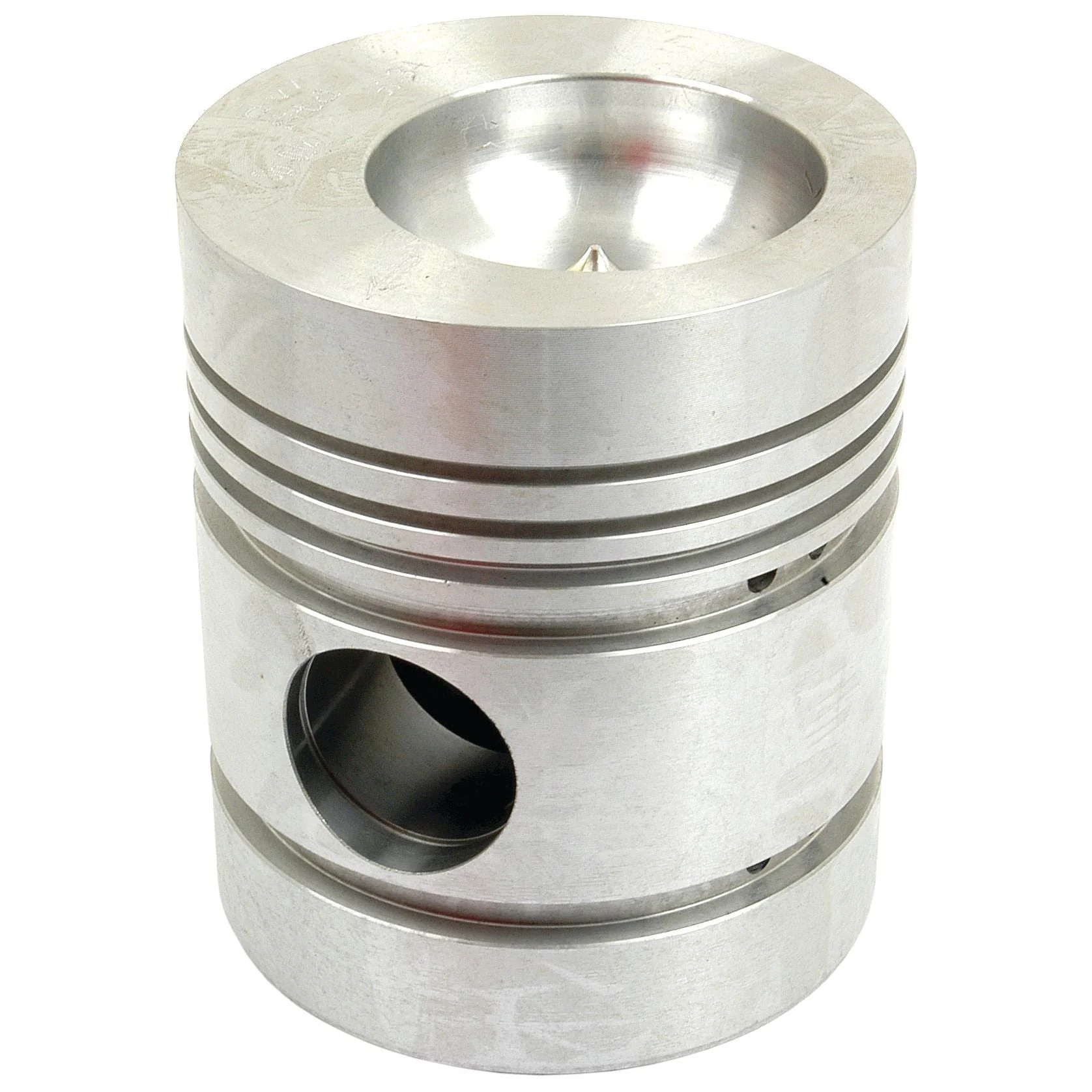

Piston (S.40405) - Sparex

Upgrade your engine's performance with the high-quality Sparex Piston, designed for durability and efficiency. This piston features precise dimensions to ensure optimal fit and function in various machinery.

Product Specifications

• Piston Length: 109.43 mm
• Compression Height: 61.74 mm
• Bore Diameter: 91.49 mm
• Chamber Depth: 18.26 mm
• Chamber Diameter: 55.88 mm
• Pin Diameter: 31.75 mm
• Number of Rings: 5
• Al Fin Ring Groove: No
• Crown Type: Dish Top
• Crown Diameter: 90.83 mm
• Type: Pimple Bowl
• Tariff Code: 8409990090
• Related Products: 40454, 40589, 40592, 40605, 40608, 40609

Compatible Machinery

This piston is suitable for a variety of models, including:

• Allis Chalmers: 160, 6040
• Landini: 4000, 4530, 5000, 5530, 5560, 5830, 5840, 5860, 6000, 7000, C4500, C4830, C5000, C6000, CF4830, GLOBUS 50
• Leyland: 245, 253
• Massey Ferguson: 134, 134C, 135, 135 US BUILT, 140, 145, 148, 150, 152, 154, 154-4, 155, 158, 165, 165 US BUILT, 20, 203, 205, 20B, 20C, 20E, 20F, 2135, 2200, 2203, 2205, 230, 230 US BUILT, 233, 234, 234C, 235, 240, 245, 250, 2500, 253, 254, 254-4, 255, 260, 30, 302, 304, 30B, 30D, 30E, 30H, 3165, 3303, 3305, 333, 334, 340, 342, 350, 354, 40, 40B, 50, 550, 560, 65, 65 US BUILT, 765
• Perkins: AD3.152 (CE), AD4.203 (JE)
• Volvo: 400, 430

Manufacturer Information

This piston is compatible with OEM part numbers from various manufacturers:

• Allis Chalmers: 743824M91, 72080104
• JCB: 02130017
• John Deere: AHM2188
• Landini: 82137, 59618, 41158059, 82112, 68332, 743824M91, 82906, 82111, 31084, 31083, 184957, 182111, 182906, 168332, 141158059
• Leyland: AHM2188
• Massey Ferguson: 734466M91, 734467M91, 745820M91, 743824M91, 4223940M91, 3639048M1, 4223940V91, 41158059, 59618, 780006, 82137, 82147, 82112, 82906, 743824V91, 743824Z91, 82111, 68332
• Perkins: 59618, 82137, 82147, 82112, 82111, 68332
• Volvo: PE68332
