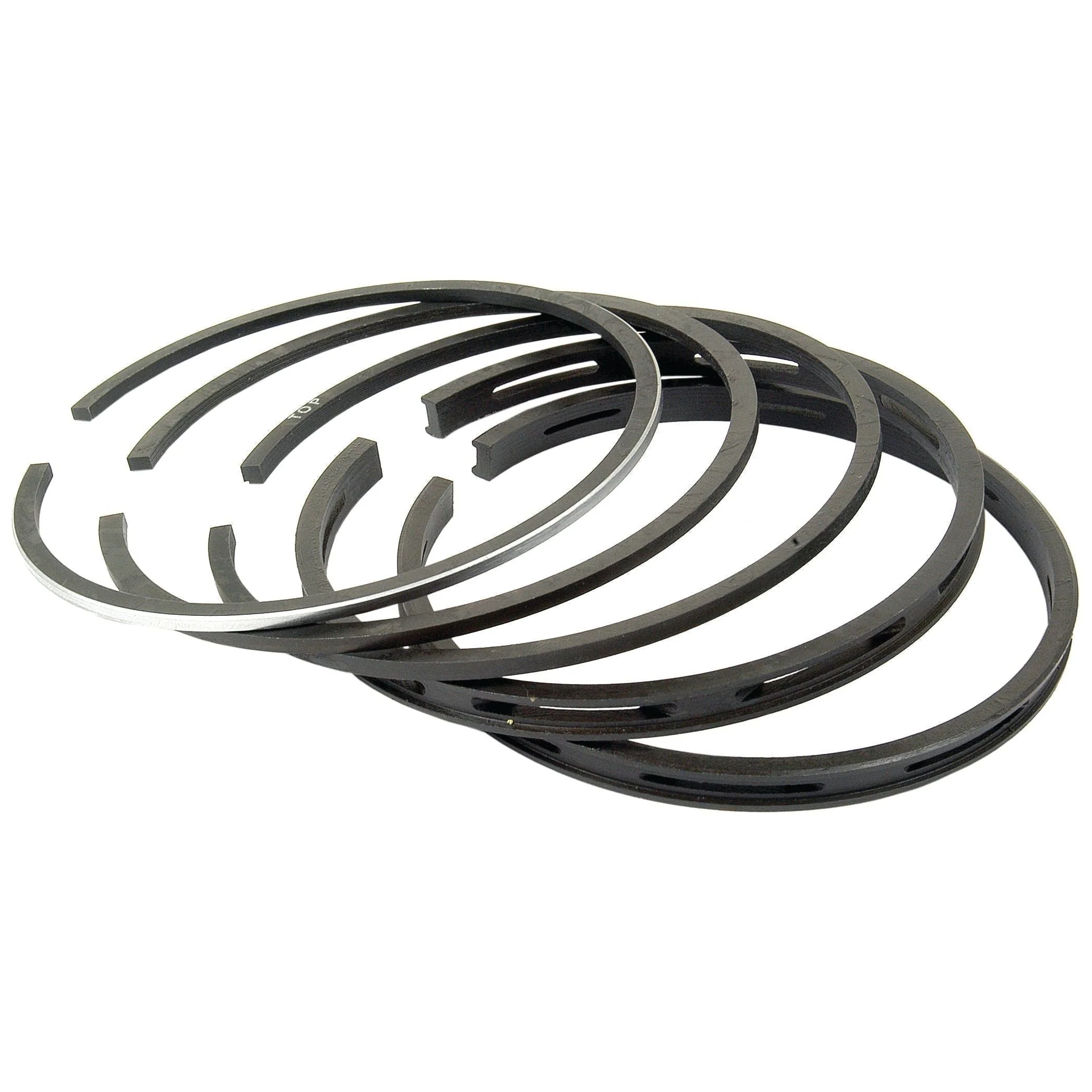

Piston Ring and Liner Kit | Sparex Part No. S.40430

Upgrade your engine's performance with the Piston Ring and Liner Kit from Sparex. This comprehensive ring set includes five high-quality rings designed to ensure optimal sealing and efficiency in your engine.

Product Specifications

• Alternative to: 40417, 4940430
• Brand: Sparex
• Number of Rings: 5
• Perkins Build List: View Full List: CE20166, CE08545, 08557, 20304, 20369, 20405, 20425, 20934, 21131, 21149, 21150, 21261, 21393, 21394, 21526, 21527, 21583, 21665, 21675, 21802, 21900, 21905, 22003 (>U67660H), 22009, 22103, 22183, 22236, 22488, 22490, 22493, 22495, 22521, 22522, 22526, 22528, 22545, 22576, 22609, 22652, 22657, 22697, 22717, 31029, 31075, 31106, 31115, 31116, 31121, 31133, 31161, 33512, 50066, 50126, 50127, 80184, 80236 (>U67640H), JD (Models with Cast Liners), JE21315*, 21586*, 21907*, 22046*, 22466*, 22472*, 22494*, 22499*, 22707*, 31053*, 33174*, 70033*, 80130* (*=>U589378L)
• Ring Types:
  • Top Ring: CP1 - Chrome Plated Parallel Faced (2.38mm)
  • 2nd Ring: P1 - Parallel Faced Plain (2.38mm)
  • 3rd Ring: LS - Laminated Steel Segments (3.17mm)
  • 4th Ring: DX - Duaflex with Chrome Plated Segments (6.35mm)
  • 5th Ring: SS - Standard Slotted (6.35mm)
• Tariff Code: 8409990090

Suitable For

This piston ring set is compatible with various models, including:

• Allis Chalmers: 160, 6040
• Ford / New Holland: SUPER DEXTA
• Landini: 5530, 5560, C4830
• Massey Ferguson: 134, 134C, 135, 135 US BUILT, 140, 145, 150, 154, 155, 158, 165, 165 US BUILT, 20, 203, 203X, 205, 205X, 20B, 20C, 20E, 20F, 2135, 2200, 230, 230 US BUILT, 234C, 235, 240, 245, 250, 2500, 255, 260, 30, 302, 304, 30E, 30H, 3165, 3303, 3305, 333, 334, 340, 35, 35 US BUILT, 354, 35X, 40, 40B, 50, 560, 65, 65 US BUILT, 765
• Perkins: A3.152 (CD), A4.203 (JD), AD3.152 (CE), AD4.203 (JE)
• Volvo: 320, 400, 430

Manufacturer Information

Compatible with OEM part numbers from various manufacturers:

• Allis Chalmers: 72080106, 72080584, 745818M91
• Case IH / International Harvester: E2044T9, 81817041
• Ford / New Holland: 81803918, 81817041, 960E6149A, E2044T9, 960E6149
• JCB: 02130019
• Landini: 84957, 736494M91, 141158057, 28323
• Massey Ferguson: 745818M91, 745 818M91, 736494M91, 41158057, 84957, 836325V91, 836325M91
• Perkins: 41158057, 84957
• Volvo: PH41158057
