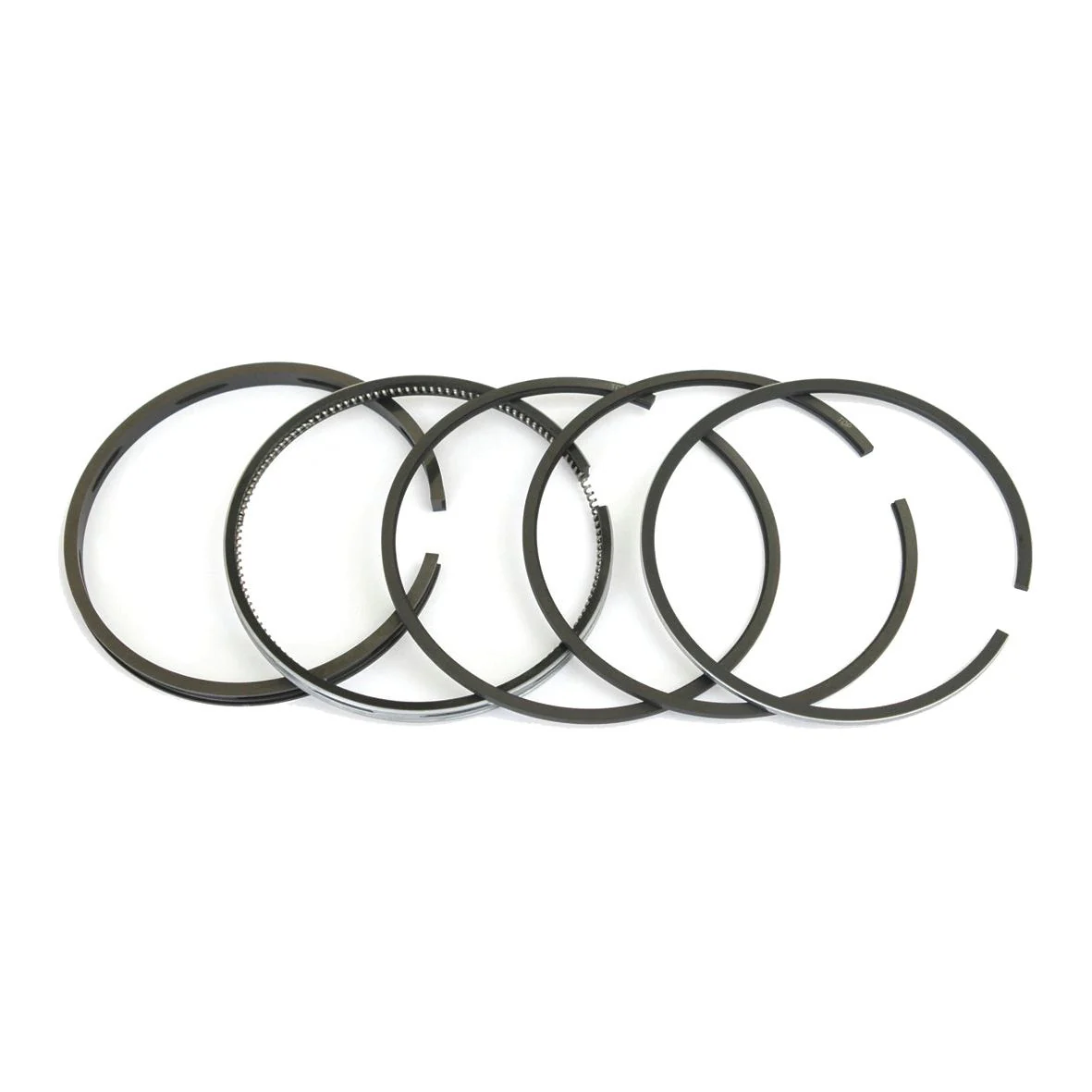

Piston Ring | Sparex Part No. S.40423

Enhance the performance of your machinery with the high-quality Piston Ring Set from Sparex. This comprehensive set includes five precision-engineered rings designed to ensure optimal sealing and efficiency in your engine.

Product Specifications

• Brand: Sparex
• Number of Rings: 5
• Compatible with Perkins Build List: View Full List: LD21691, 21731, 21908*, 22181, 22184, 22186, 22238, 22524, 22596, 22644, 22671, 22676, 22679, 22682, 22684, 22692, 22694, 22695, 22745, 22749, 22750, 22751, 22756, 22763, 22778, 22781, 22784, 22802, 22813, 22822, 22824, 22825, 31085, 31096, 31104, 31110, 31122, 31132, 31134, 33514, 50096, 50103, 50104, 50105, 50143, 50145, 50176, 50179, 50204, 70047, 80094, 80147 (*=U524721L>)
• Related Products: 40610
• Ring Types:
  • Top Ring: CP1 - Chrome Plated Parallel Faced (2.38mm)
  • 2nd Ring: P2 - Parallel Faced Internally Stepped Top (2.38mm)
  • 3rd Ring: P2 - Parallel Faced Internally Stepped Top (2.38mm)
  • 4th Ring: CBEH - Chrome Plated Bevelled Edge with Helical Coil Spring (6.35mm)
  • 5th Ring: SS - Standard Slotted (6.35mm)
• Tariff Code: 8409990090

Suitable For

This piston ring set is compatible with various models, including:

• Allis Chalmers: 170, 175
• Landini: 6500, 6530, 6550, 6560, 6830, 6840, 6860, 6870, 6880, 7500, 7530, 7550, 7560, 7830, 7860, 7870, 7880, 9500, ADVANTAGE 65, ADVANTAGE 75, BLIZZARD 65, BLIZZARD 75, C10500, C6500, C6830, C7830, CF6830, LARGE 10000, REX 65, REX 75, TREKKER 65, TREKKER 70, TREKKER 75
• Massey Ferguson: 10, 1014, 1100, 1104, 1130, 168, 174, 174C, 175, 175 US BUILT, 178, 184, 24, 240, 255, 261, 2620, 2625, 265, 273, 274, 274C, 274SK, 275, 283, 284, 3050, 307, 30D, 330, 362, 365, 372, 373, 373LX, 374, 375, 375E BRAZILIAN, 376C, 376CF, 376XCF, 377, 383, 383LX, 384, 387, 50, 50B, 50C, 50D, 50E, 50EX, 50H, 50HX, 565, 575, 6000, 60H, 675
• Perkins: A4.236 (LD)
• Volvo: 2200, 2204, 2250, 2254, T500
• White Oliver: 1850

Manufacturer Information

This piston ring set is manufactured to meet OEM specifications for various brands:

• Allis Chalmers: 70251345, 745760M91
• JCB: 02101438
• Landini: 141158041, 141158026, 41158026C, 41158041, 83388, 745760M91, 83388C
• Massey Ferguson: 745760Z91, 83388, 83388C, 41158004, 4224292M91, 4224292V91, 3640232M1, 745778M91, 745786M91, 745760V91, 41158041, 745760M91
• Perkins: 41158041, 83388
• Volvo: PH31358345
• White Oliver: 30-3083268, 745760M91, 163406AS
