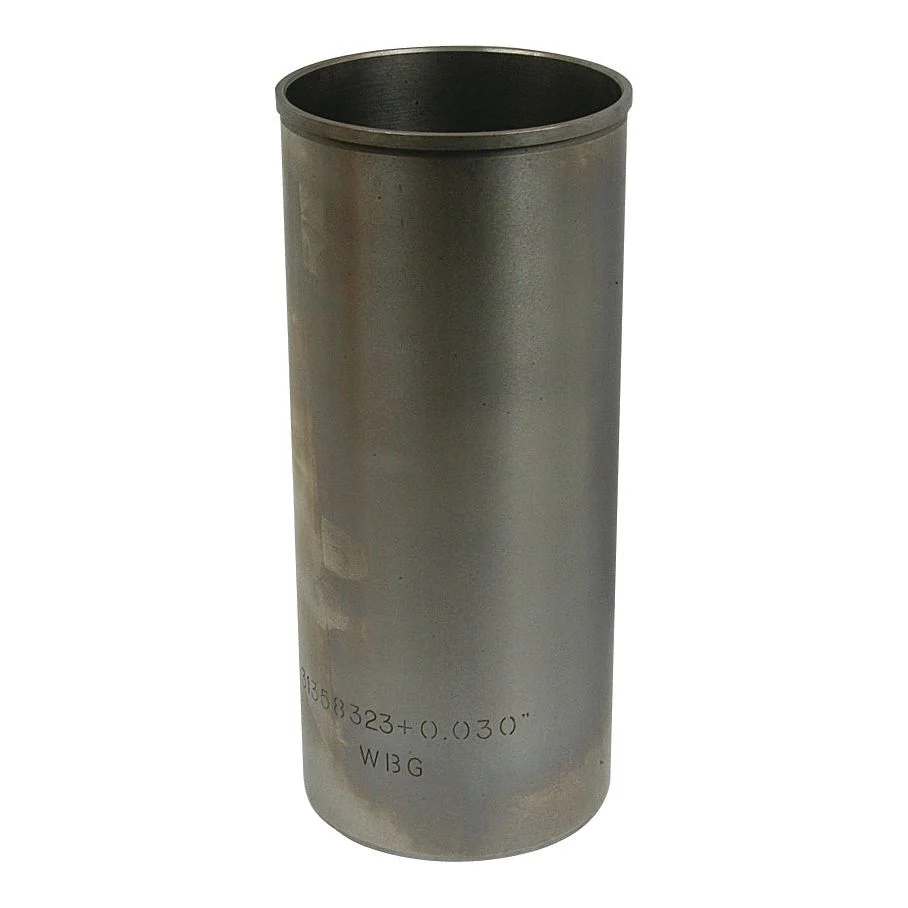

Piston Liner (Semi Finished) | Sparex Part No. S.43587

Upgrade your engine's performance with the Sparex Piston Liner, designed for durability and precision. These liners feature an oversized exterior, ensuring a perfect fit for various agricultural machinery.

Product Specifications

• Alternative to: 40432
• Bore Ø: 90.5 mm
• Brand: Sparex
• Finish: Semi Finished
• Flame Ring: No
• Flange Width: 3.7 mm
• Flange Ø: 96.63 mm
• Height: 215.8 mm
• Outer Ø: 94.4 mm
• Related Products: 40438
• Tariff Code: 8409990090
• Wet or Dry: Dry

Suitable For

This piston liner is compatible with a range of machinery, including:

• Allis Chalmers: 160, 6040
• Ford / New Holland: SUPER DEXTA
• Landini: 4000, 4500, 5500, 5530, 5560, 5830, 5840, 5860, 5870, 6000, 6030, 6040, 6060, 6070, 7000, BLIZZARD 50, BLIZZARD 60, C4500, C4830, C5830, C6000, CF5030, CF5830, CF6030, GLOBUS 50, REX 55, REX 60, TREKKER 60
• Massey Ferguson: 134, 134C, 135, 140, 145, 148, 152, 154, 154C, 155, 158, 164, 165, 20, 203, 203X, 205, 205X, 20B, 20C, 20D, 20E, 20F, 2135, 2203, 2205, 230, 231, 233, 234, 234C, 235, 240, 244CF, 245, 250, 253, 254, 254C, 255, 260, 263, 264, 264C, 30E, 30H, 3165, 3303, 3305, 333, 334, 340, 342, 35, 350, 352, 353, 353LX, 354, 35X, 363, 40, 550, 560, 65, 765
• Perkins: A3.152 (CD), A4.203 (JD), AD3.152 (CE), AD4.203 (JE), T3.152.4 (CN)

Manufacturer Information

OEM fitment for:

• Landini: 3637494M1, 131358357
• Massey Ferguson: 3637494M1
• Perkins: 31358357

Enhance your engine's efficiency with the Sparex Piston Liner, a reliable choice for various agricultural applications.
