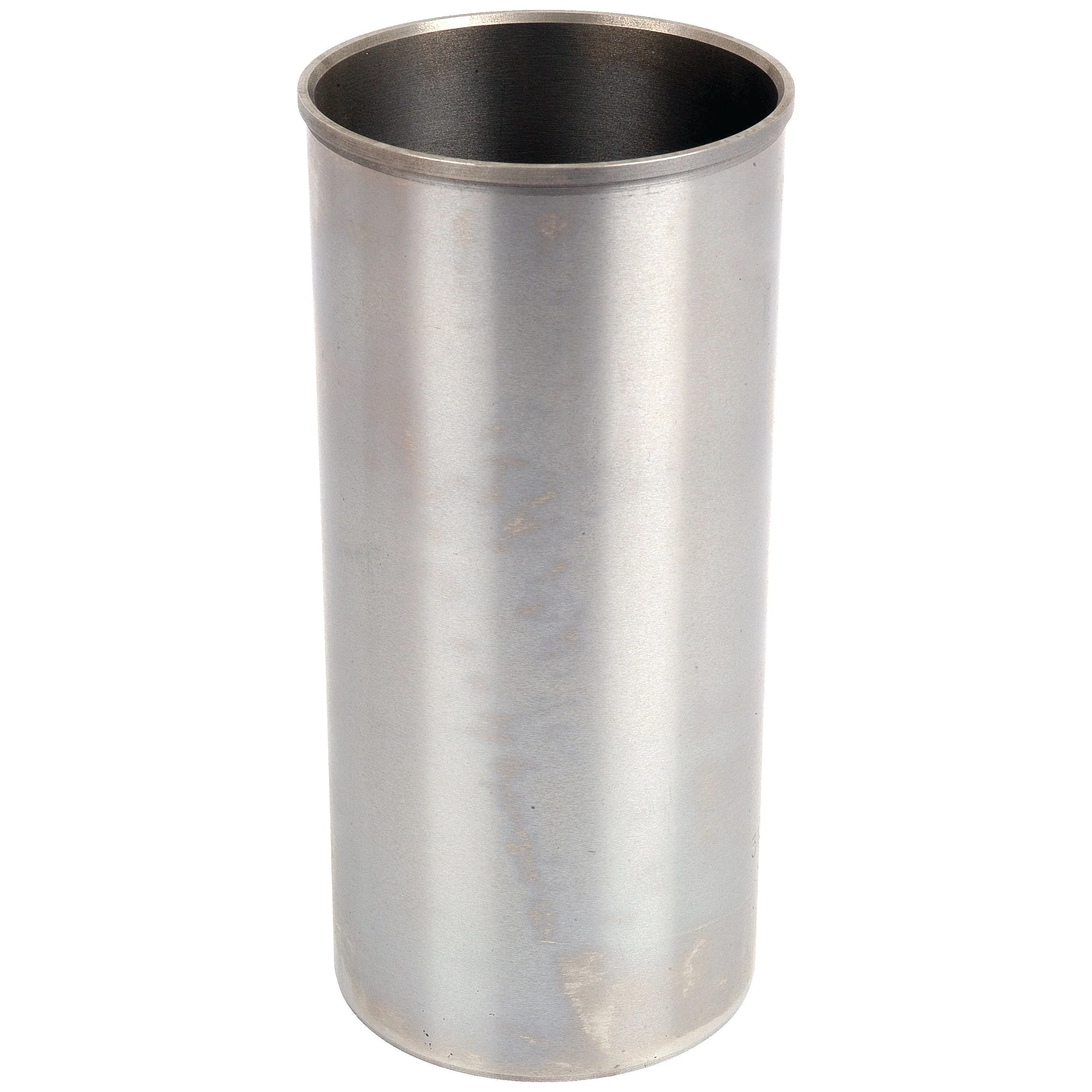

Piston Liner (Semi Finished) | Sparex Part No. S.41374

Introducing the Piston Liner - Un-Finished, Flanged, designed for optimal performance in various agricultural machinery. This high-quality component is manufactured by Sparex and is an excellent choice for those seeking reliability and durability in engine parts.

Product Specifications

• Alternative to: 41375
• Bore Ø: 100.12 mm
• Brand: Sparex
• Finish: Semi Finished
• Flame Ring: No
• Flange Width: 3.81 mm
• Flange Ø: 107.34 mm
• Height: 226.51 mm
• Outer Ø: 104.20 mm min - 104.23 mm max
• Perkins Build List: 21415, 21577, 21596, 21597, 21617, 21622, 21780, 21824, 22269, 22312, 22313, 22471, 22473, 22477, 22478, 22486, 22503, 22575, 22595, 22663, 22683, 22704, 22762, 22790, 22801, 31086, 31091, 31105, 31109, 31130, 50098, 80057, 80172, 80240 (U08337N)
• Related Products: 41594
• Tariff Code: 8409990090
• Wet or Dry: Dry

Suitable For

This piston liner is compatible with a range of models from Landini, including:

• 7830, 7860, 8000, 8500, 8530, 8550, 8560, 8830, 8860, 8870, 8880
• ADVANTAGE 85, ATLAS 75, ATLAS 85, BLIZZARD 85, C7800, C7830, C8860, CF7830, REX 85, TREKKER 85

It is also suitable for various Massey Ferguson models:

• 175, 178, 194, 24, 275 BRAZILIAN, 283 BRAZILIAN, 285 (FR), 285 US BUILT, 290 BRAZILIAN, 290 US BUILT, 292 BRAZILIAN, 293, 294, 294-4, 294C, 3060, 375E BRAZILIAN, 382, 390, 390E BRAZILIAN, 393, 393LX, 394, 394C, 396, 396C, 396CF, 397, 435 BRAZILIAN, 440 BRAZILIAN, 445 BRAZILIAN, 460 BRAZILIAN, 50E, 50EX, 50H, 50HX, 5340 BRAZILIAN, 5355 BRAZILIAN, 5360 BRAZILIAN, 590, 60H, 60HX, 6110, 6120, 690, 698

Additionally, it fits several Perkins models:

• 4.41 (LM), A4.236 (LD), A4.248 (LF), T4.236 (LJ)

Manufacture Information

For reference, the following OEM part numbers are associated with this product:

• Landini: 3135X033, 3637333M1, 4181A019, 3637033M91
• Massey Ferguson: 3637333V1, 3637333m1, 3637033M1, 3637 333M1, 3637033M91, 3135X033, 70530022
• Perkins: 3135X033

Upgrade your engine's performance with the Piston Liner (Semi Finished) from Sparex, ensuring compatibility and quality for your agricultural machinery.
