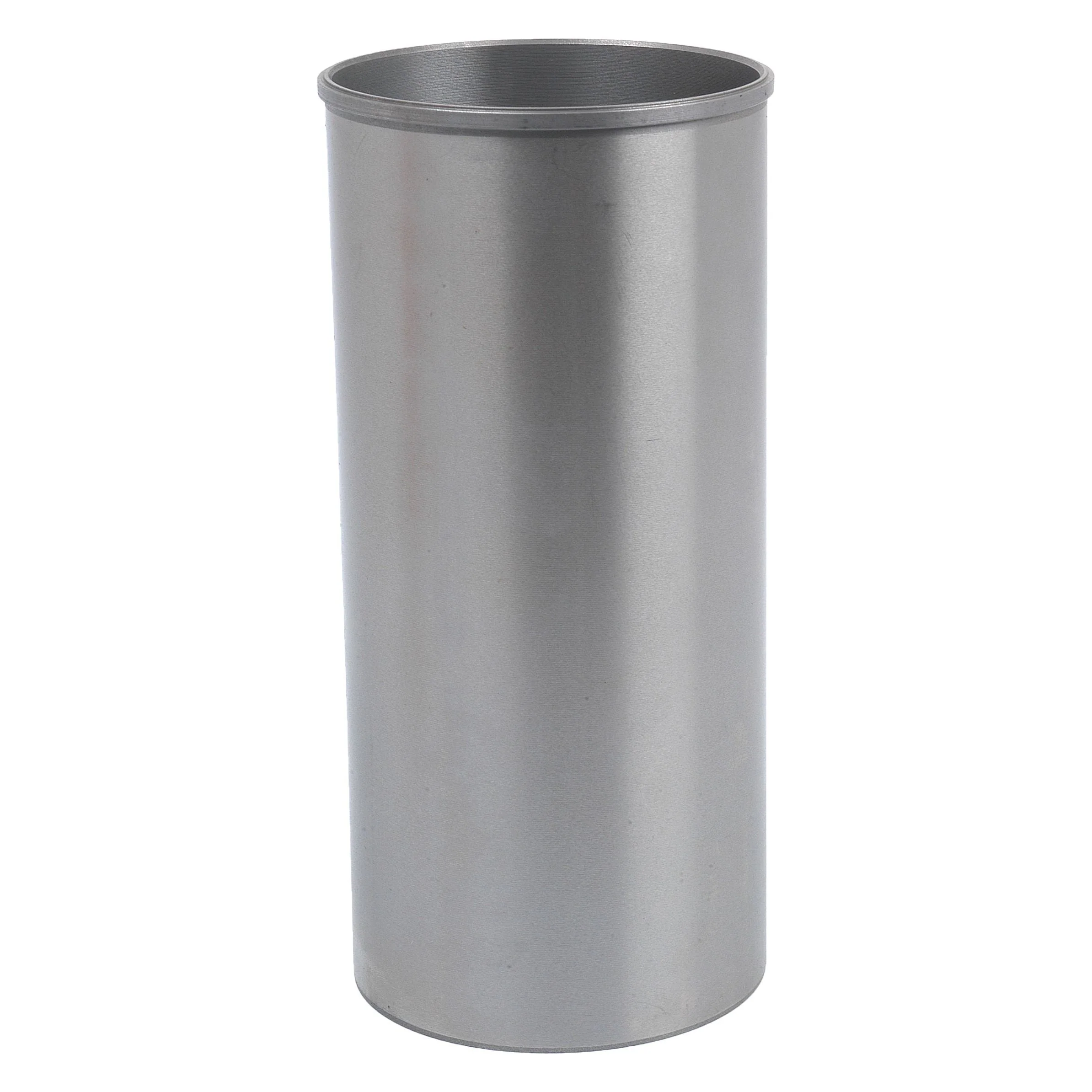

Piston Liner (Semi Finished) | Sparex Part No. S.40442

Introducing the Piston Liner - a high-quality, semi-finished component designed for optimal performance in various agricultural machinery. This un-finished, flanged liner features a flame ring, ensuring durability and reliability in demanding conditions.

Product Specifications

• Alternative to: 40437
• Bore Diameter: 100.22 mm
• Brand: Sparex
• Finish: Semi Finished
• Flame Ring: Yes
• Flange Width: 3.86 mm
• Flange Diameter: 107.36 mm
• Height: 227.25 mm
• Outer Diameter: 104.26 mm
• Tariff Code: 8409990090
• Wet or Dry: Dry

Compatible Machinery

This piston liner is suitable for a range of models, including:

• Landini: 8000, 8500, 8530, 8550, 8560, 8830, 8860, 8870, 8880, ADVANTAGE 85, BLIZZARD 85, C7800, C7830, C8860, TREKKER 85
• Massey Ferguson: 175, 178, 185, 188, 194, 194C, 275, 285 (FR), 285 US BUILT, 290, 290 US BUILT, 293, 294, 294-4, 390, 390E BRAZILIAN, 50H, 50HX, 590, 60H, 690, 750
• Perkins: A4.248 (LF), A6.372.4 (TV), AT6.354.4 (TU)

Manufacturer Information

OEM fitment for:

• Landini: 740571M1, 31358346, 131358346
• Massey Ferguson: 740571Z1, 740571M1, 31358346
• Perkins: 31358346

Upgrade your engine's performance with the Sparex Piston Liner, designed for reliability and efficiency in your agricultural equipment.
