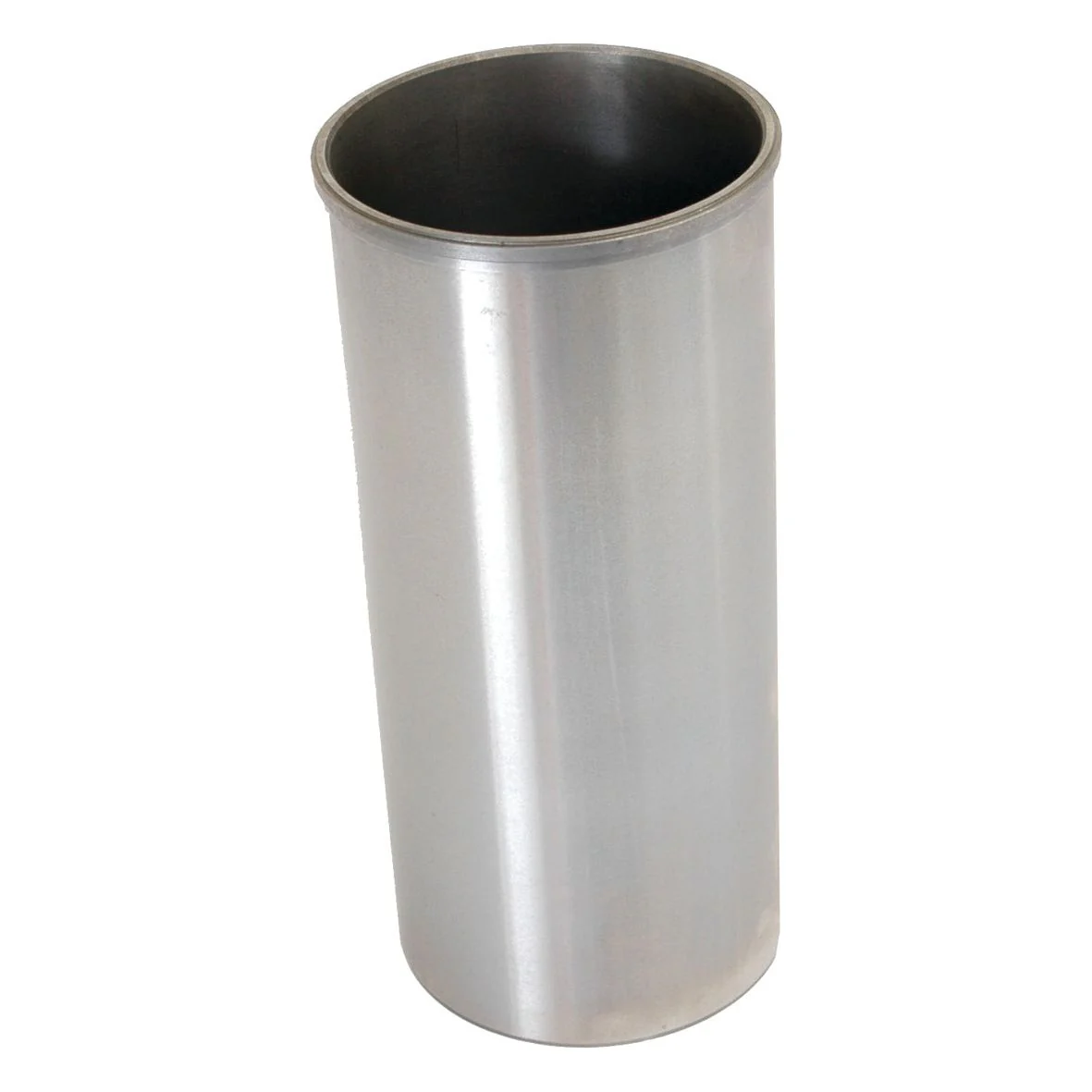

Piston Liner (Semi Finished) | Sparex Part No. S.40440

Introducing the Piston Liner - Un-Finished, Flanged with Flame Ring, designed for optimal performance in various agricultural machinery. This high-quality liner is a reliable choice for those seeking durability and efficiency in engine parts.

Product Specifications

• Alternative to: 40434
• Bore Ø: 98.19 mm
• Brand: Sparex
• Finish: Semi Finished
• Flame Ring: Yes
• Flange Width: 3.81 mm
• Flange Ø: 106.37 mm
• Height: 227.36 mm
• Outer Ø: 103.25 mm
• Tariff Code: 8409990090
• Wet or Dry: Dry

Compatible Perkins Builds

Check the Perkins Build List for compatibility with models such as LA21194*, 21243*, 21245*, 21246*, 21248*, and many more. This liner is suitable for engines fitted with Flame Ring Liners and Standard Pistons.

Suitable For Information

• Allis Chalmers: 170, 175
• Case IH / International Harvester: 475
• Landini: 6500, 6530, 6550, 6560, 6830, 6840, 6870, 6880, 7000, 7500, 7530, 7550, 7560, 7830, 7870, 7880, 9500, ADVANTAGE 65, ADVANTAGE 75, and more.
• Massey Ferguson: 10, 1004T, 1014, 1024, 1100, 1104, 1105, 1114, 1130, 1134, 1135, 1200, 1250, and many others.
• Massey Harris: 820
• Perkins: A4.212 (LA), A4.236 (LD), A6.354 (TC), and more.
• White Oliver: 2-105, 2-110, 2-85

Manufacturer Information

• Allis Chalmers: 70251001, 734644M1
• Case IH / International Harvester: 706227R1
• JCB: 02100103
• Landini: 744131M1, 31358349, 31358323, 31358393, 131358393
• Massey Ferguson: 734644V1, 734644M1, 744 131M1, 744131M1, 741131M1, 31358361, 31358393, 31358349
• Perkins: 31358349, 31358393, 31358361
