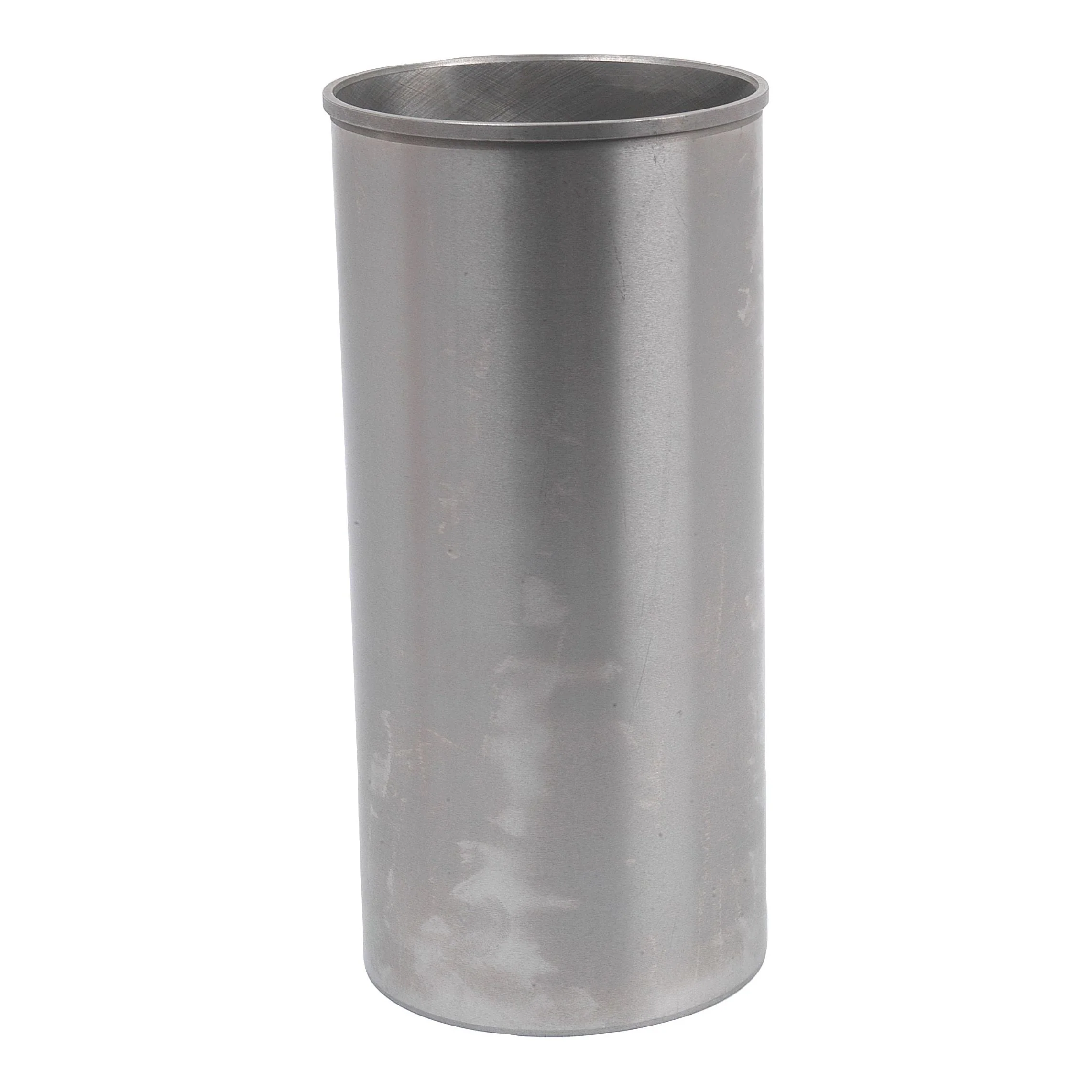

Piston Liner (Finished) | Sparex Part No. S.41375

Upgrade your engine's performance with the Piston Liner (Finished, Flanged) from Sparex. Designed for durability and precision, this liner is an essential component for various agricultural machinery.

Product Specifications

• Alternative to: 41374
• Bore Diameter: 101.12 mm
• Brand: Sparex
• Finish: Finished
• Flame Ring: No
• Flange Width: 3.83 mm
• Flange Diameter: 107.36 mm
• Height: 226.57 mm
• Outer Diameter: 104.22 mm
• Tariff Code: 8409990090
• Wet or Dry: Dry

Compatible Perkins Models

This piston liner is compatible with the following Perkins models: 21415, 21577, 21596, 21597, 21617, 21622, 21780, 21824, 22269, 22312, 22313, 22471, 22473, 22477, 22478, 22486, 22503, 22575, 22595, 22663, 22683, 22704, 22762, 22790, 22801, 31086, 31091, 31105, 31109, 31130, 50098, 80057, 80172, 80240 (U08337N).

Suitable For Information

This liner is suitable for various models from Landini and Massey Ferguson:

• Landini: 7860, 7870, 7880, 8000, 8500, 8530, 8550, 8560, 8830, 8860, 8870, 8880, ADVANTAGE 85, ATLAS 75, ATLAS 85, BLIZZARD 85, C7800, C7830, C8860, CF7830, REX 85, TREKKER 85
• Massey Ferguson: 175, 178, 185, 188, 194, 275, 285 (FR), 285 US BUILT, 290, 290 BRAZILIAN, 290 US BUILT, 293, 294, 294-4, 294C, 3060, 382, 383, 387, 390, 390E BRAZILIAN, 393, 393LX, 394, 394C, 396C, 396CF, 397, 50E, 50EX, 50H, 50HX, 590, 60H, 60HX, 6110, 6120, 690, 698
• Perkins: 4.41 (LM), A4.236 (LD), A4.248 (LF), T4.236 (LJ)

Manufacturer Information

OEM fitment information includes:

• Landini: 3637034M1, 3637334M1, 3135X034
• Massey Ferguson: 740571M1, 3135X034, 3637334M1, 3637034M1, 3637334V1
• Perkins: 3135X034

Ensure optimal engine performance with the Piston Liner (Finished) from Sparex. Order now to keep your machinery running smoothly!
