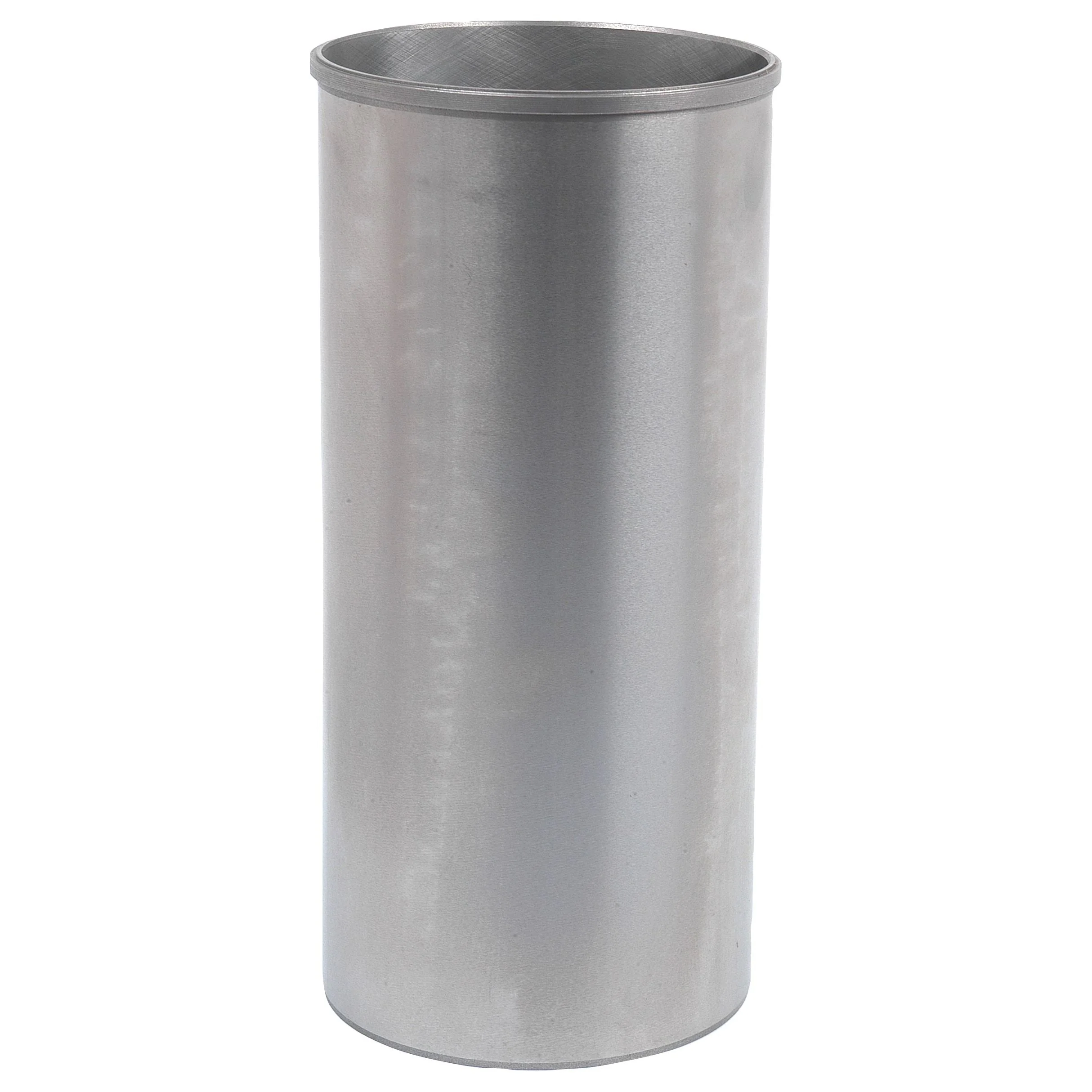

Piston Liner (Finished) | Sparex Part No. S.40437

Upgrade your engine's performance with the Finished Flanged Piston Liner featuring a flame ring. Designed for durability and efficiency, this liner is an essential component for various agricultural machinery.

Product Specifications

• Alternative to: 40442
• Bore Diameter (mm): 101.09
• Brand: Sparex
• Finish: Finished
• Flame Ring: Yes
• Flange Width (mm): 3.81
• Flange Diameter (mm): 107.32
• Height (mm): 227.28
• Outer Diameter (mm): 104.2
• Perkins Build List: LF21274, 21415, 21596, 21597, 21617, 21622, 21780, 22269, 22503, 22801, 31086, 31109, 50098, 80057, 80172, 80240 (>U08336N), TV
• Related Products: 40452, 40610
• Tariff Code: 8409990090
• Wet or Dry: Dry

Suitable For

This piston liner is compatible with a range of models from Landini and Massey Ferguson, including:

• Landini: 7860, 7870, 7880, 8000, 8500, 8530, 8550, 8560, 8830, 8860, 8870, 8880, ADVANTAGE 85, BLIZZARD 85, C7800, C7830, C8860, TREKKER 85
• Massey Ferguson: 175, 178, 185, 188, 194, 194C, 275, 285 (FR), 285 US BUILT, 290, 290 US BUILT, 293, 294, 294-4, 3060, 382, 383, 387, 390, 390E BRAZILIAN, 393, 394, 397, 50H, 50HX, 590, 60H, 690, 750
• Perkins: A4.248 (LF), A6.372.4 (TV)

Manufacturer Information

OEM fitment includes:

• Landini: 31358352
• Massey Ferguson: 740571M1, 742 466M1, 742466M1, 742466V1, 31358352, 31358346, 742466Z1, 740 571M1, 4224049V91, 4224049M91
• Perkins: 31358352
