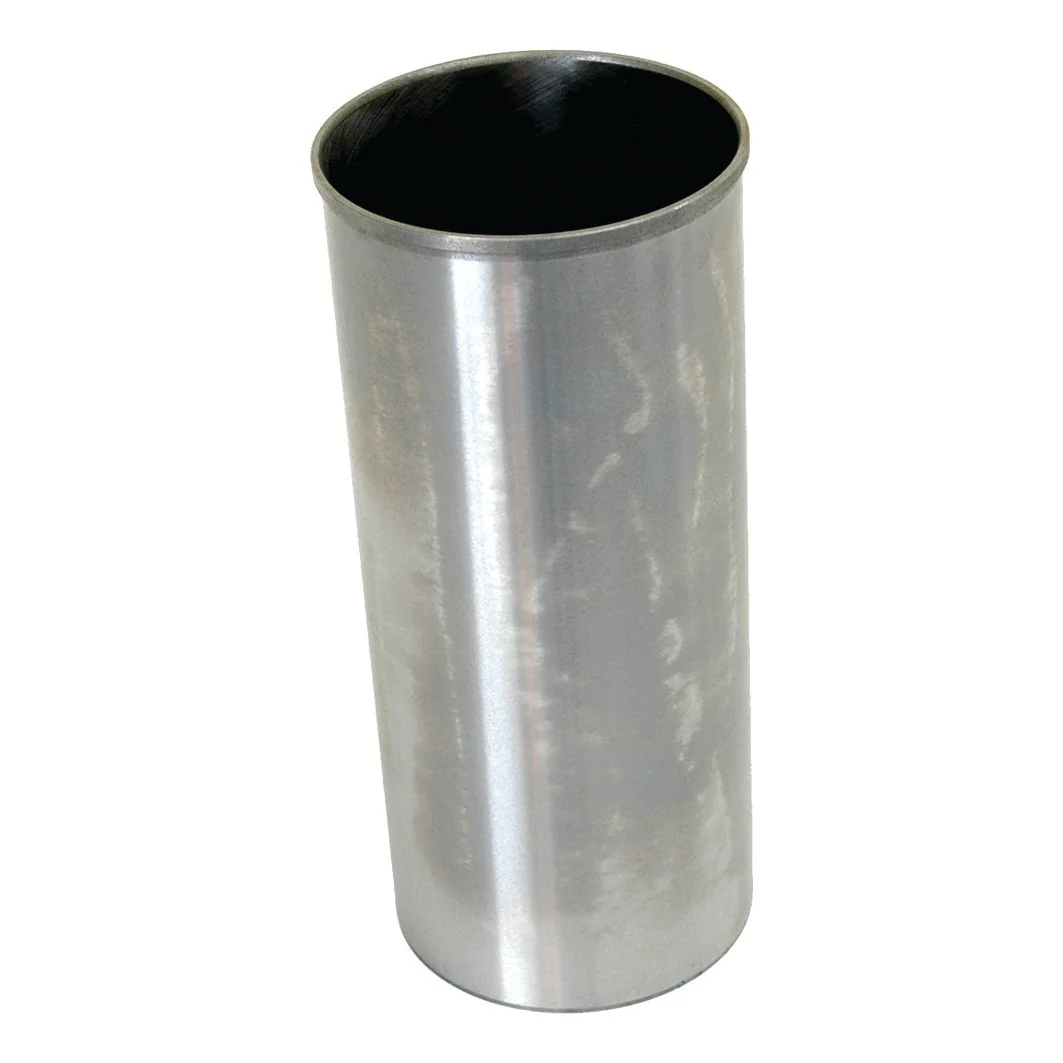

Piston Liner (Finished) | Sparex Part No. S.40432

Upgrade your engine's performance with the Piston Liner from Sparex. This finished, cast, flanged liner is designed for durability and efficiency, making it an essential component for various agricultural machinery.

Product Specifications

• Alternative to: 40438, 43587
• Bore Diameter (mm): 91.49
• Brand: Sparex
• Finish: Finished
• Flame Ring: No
• Flange Width (mm): 3.78
• Flange Diameter (mm): 96.72
• Height (mm): 215.77
• Outer Diameter (mm): 93.73
• Perkins Build List: CE20166, CE08545, 08557, 20304, 20369, 20405, 20425, 20934, 21131, 21149, 21150, 21261, 21393, 21394, 21526, 21527, 21583, 21665, 21675, 21802, 21900, 21905, 22003 (>U67660H), 22009, 22103, 22183, 22236, 22488, 22490, 22493, 22495, 22521, 22522, 22526, 22528, 22545, 22576, 22609, 22652, 22657, 22697, 22717, 31029, 31075, 31106, 31115, 31116, 31121, 31133, 31161, 33512, 50066, 50126, 50127, 80184, 80236 (>U67640H), CE21489, 21690, 21899, 21906, 22003 (U676641H), 22309, 22310, 22311, 22372, 22438, 22463, 22464, 22465, 22467, 22651, 22665, 22680, 22706, 31089, 80079, 80141, 80236 (U676641H), JD (Models with Cast Liners), JE21315*, 21586*, 21907*, 22046, 22466*, 22472*, 22494*, 22499*, 22670, 22707*, 31053*, 33174*, 70033*, 80130* (*=U589378L)
• Related Products: 40445, 40447, 40454, 40588, 40589, 40591, 40592, 40604, 40605, 40607, 40608, 40609
• Tariff Code: 8409990090
• Wet or Dry: Dry

Suitable For

• Allis Chalmers: 160, 6040
• Ford / New Holland: SUPER DEXTA
• Landini: 4000, 4500, 4530, 5000, 5500, 5530, 5560, 5830, 5840, 5860, 5870, 6000, 6030, 6040, 6060, 6070, 7000, ADVANTAGE 55, BLIZZARD 50, BLIZZARD 60, C4500, C4830, C5000, C5500, C5830, C6000, CF4830, CF5030, CF5830, CF6030, GLOBUS 50, REX 55, REX 60, TREKKER 60
• Leyland: 245, 253
• Massey Ferguson: 134, 134C, 135, 135 US BUILT, 140, 145, 148, 150, 152, 154, 154-4, 154C, 155, 158, 164, 165, 165 US BUILT, 20, 203, 203X, 205, 205X, 20B, 20C, 20E, 20F, 2135, 2200, 2203, 2205, 230, 230 US BUILT, 231, 233, 234, 234C, 235, 240, 244CF, 245, 250, 2500, 253, 254, 254-4, 254C, 255, 260, 263, 264, 264C, 30, 302, 304, 30B, 30D, 30E, 30H, 3165, 3303, 3305, 333, 334, 340, 342, 35, 35 US BUILT, 350, 352, 353, 353LX, 354, 35X, 360, 40, 40B, 50, 550, 560, 65, 65 US BUILT, 765
• Perkins: A3.152 (CD), AD3.152 (CE), AD4.203 (JE), T3.152.4 (CN)
• Renault: SUPER 7
• Volvo: 320, 400, 430

Manufacturer Information

• Allis Chalmers: 739043M1, 72080003
• Ford / New Holland: 8N-7996, 8N - 7996
• JCB: 02130002
• John Deere: AHM2186
• Landini: 739043M1, 31358322, 31358345, 28057, 131358345
• Leyland: AHM2186
• Massey Ferguson: 1434175M1, 734175M1, 31358322, 31358345, 739043M1
• Perkins: 31358322, 31358345
• Volvo: PH31358345
