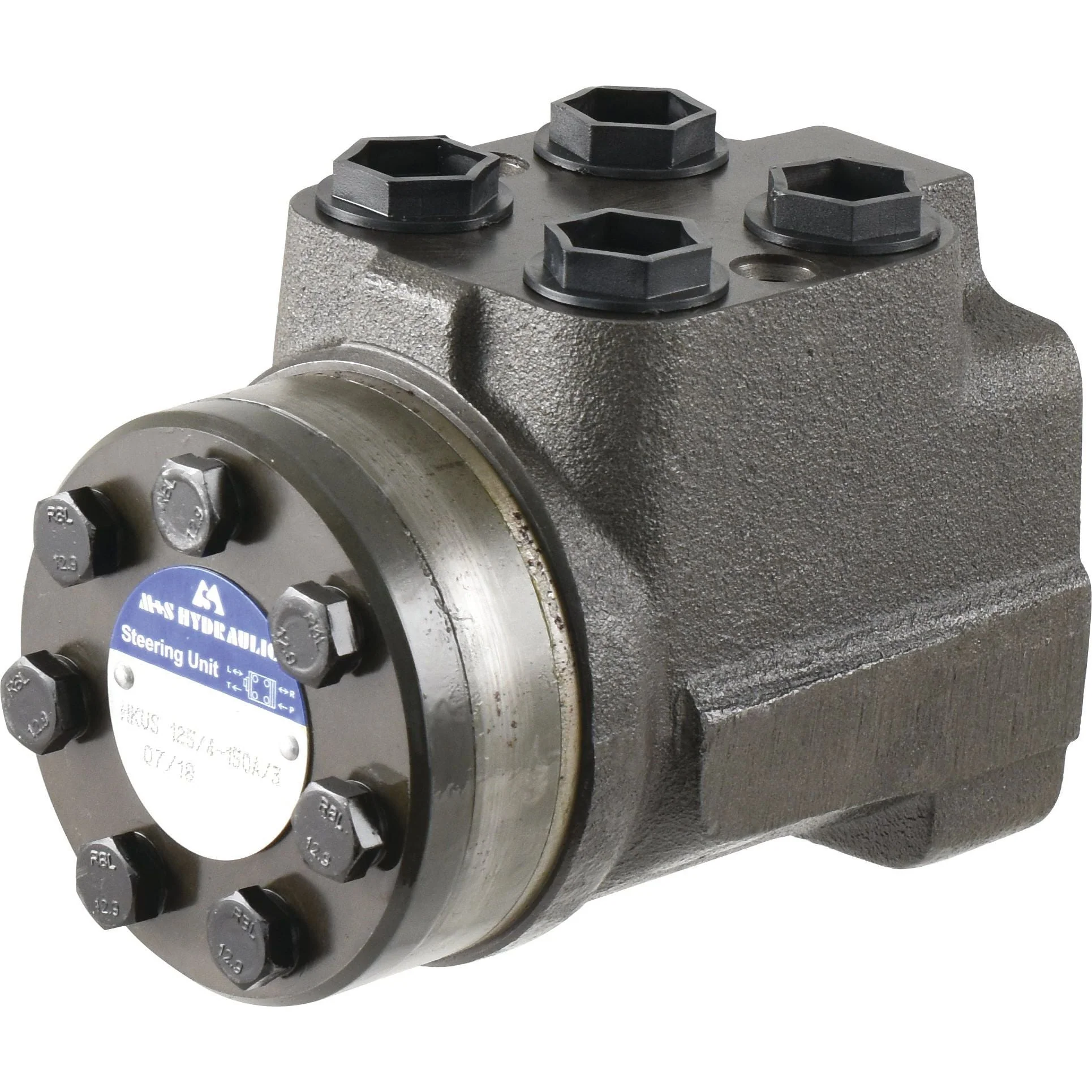

Orbital Steering Unit | Sparex Part No. S.56851

Enhance your vehicle's steering performance with the Orbital Steering Unit designed for 4WD applications. This high-quality unit, featuring a 125cc capacity and 3/4'' JIC thread, is an essential component for optimal maneuverability.

Product Specifications

• Alternative to: 42755
• Brand: Sparex
• Diagram Specifications: A: 60mm, B: 60mm, C: 12, D: 3/4''x16 UNF, E: 154mm, F: 3/4'' x 16 UNF, G: 50mm
• Hole Spacing (mm): 50
• Inner Max. GPM: 3.43
• Inner Max. LPM: 13
• Length (mm): 154
• Number of Teeth: 12
• Related Products: 43547
• Relief Valve: Yes
• Side Hole Spacing: 60
• Tariff Code: 8481201090
• Thread Size: 3/4''x16
• Thread Type: UNF
• Top Hole Spacing: 60
• Top Port Thread Size: 3/4'' x 16 UNF

Suitable For

This steering unit is compatible with a variety of models, including:

• Case IH / International Harvester: 1194, 1294, 1394, 1494, 1594, 1694
• David Brown: 1194, 1210, 1212, 1294, 1394, 1494, 1594, 1694, 880, 885
• Massey Ferguson: 240, 253, 261, 265, 275, 290, 298, 340, 342, 350, 352, 355, 360, 362, 365, 372, 375, 375E BRAZILIAN, 382, 383, 390, 390E BRAZILIAN, 390T, 393, 396, 398, 399, 4215, 4220, 4225, 4235, 4260, 4265, 4270

Manufacturer Information

This product is manufactured to fit the following OEM specifications:

• Case IH / International Harvester: K207419, K206396
• David Brown: K207419
• Massey Ferguson: 1695445M91

Upgrade your steering system with the reliable and efficient Orbital Steering Unit from Sparex, ensuring smooth operation and enhanced control for your agricultural machinery.
