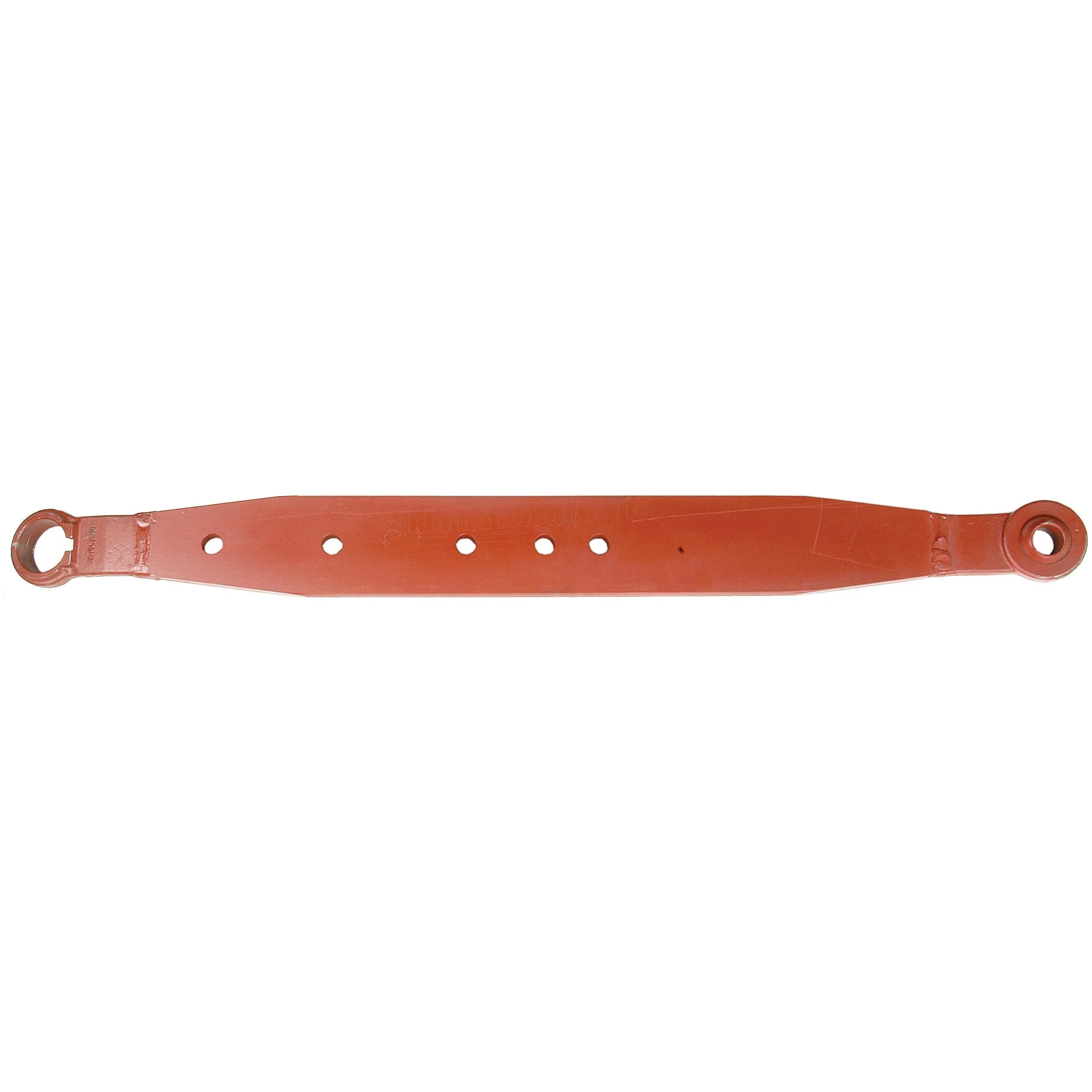

Lower Link Lift Arm - Ball Ø 28mm - Open Socket - RH & LH | Sparex Part No. S.42050

Enhance your agricultural machinery with the Lower Link Lift Arm, designed for optimal performance and durability. This lift arm features a length of 970mm, a thickness of 20mm, and a width of 100mm. It includes 5 holes with a hole diameter of 20mm, and the hole centers are positioned at 114mm, 127mm, 75mm, and 52mm.

Product Specifications

• Alternative to: 15182
• Ball Bore Ø: 1 1/8 ins (28mm)
• Brand: Spenco
• Category: 2/2
• Colour: Red Oxide
• End Fittings A: Ball Ø 28mm
• End Fittings B: Open Socket
• Finish: Matt
• Fitting: RH & LH
• Hole Centres (mm): 114, 127, 75, 52
• Hole Centres (ins): 4 31/64, 5, 2 61/64, 2 3/64
• Hole Ø: 25/32 ins (20mm)
• Length: 38 3/16 ins (970mm)
• Notes: Link Arm Assembly use: 1 x S.42050, 1 x S.1728, 1 x S.1730. For (Cat 2) Link Arm Assembly use: 1 x S.42050, 1 x S.1729, 1 x S.1730.
• Number of Holes: 5
• Related Products: 1729, 1730
• Tariff Code: 7319909000
• Thickness: 25/32 ins (20mm)
• Type: Open Socket
• Width: 3 15/16 ins (100mm)

Suitable For

This lift arm is compatible with various Massey Ferguson models including: 165, 168, 185, 188, 260, 261, 265, 275, 282, 282 US BUILT, 285 (FR), 360, 362, 365, 372, 375, 375E BRAZILIAN, 390, 390T, 575, and 675.

Manufacture Information

OEM fitment information includes:

• Landini: 1863435M94, 1863435M95
• Massey Ferguson: 1863435M95, 1863435M94, 1863 435M94
