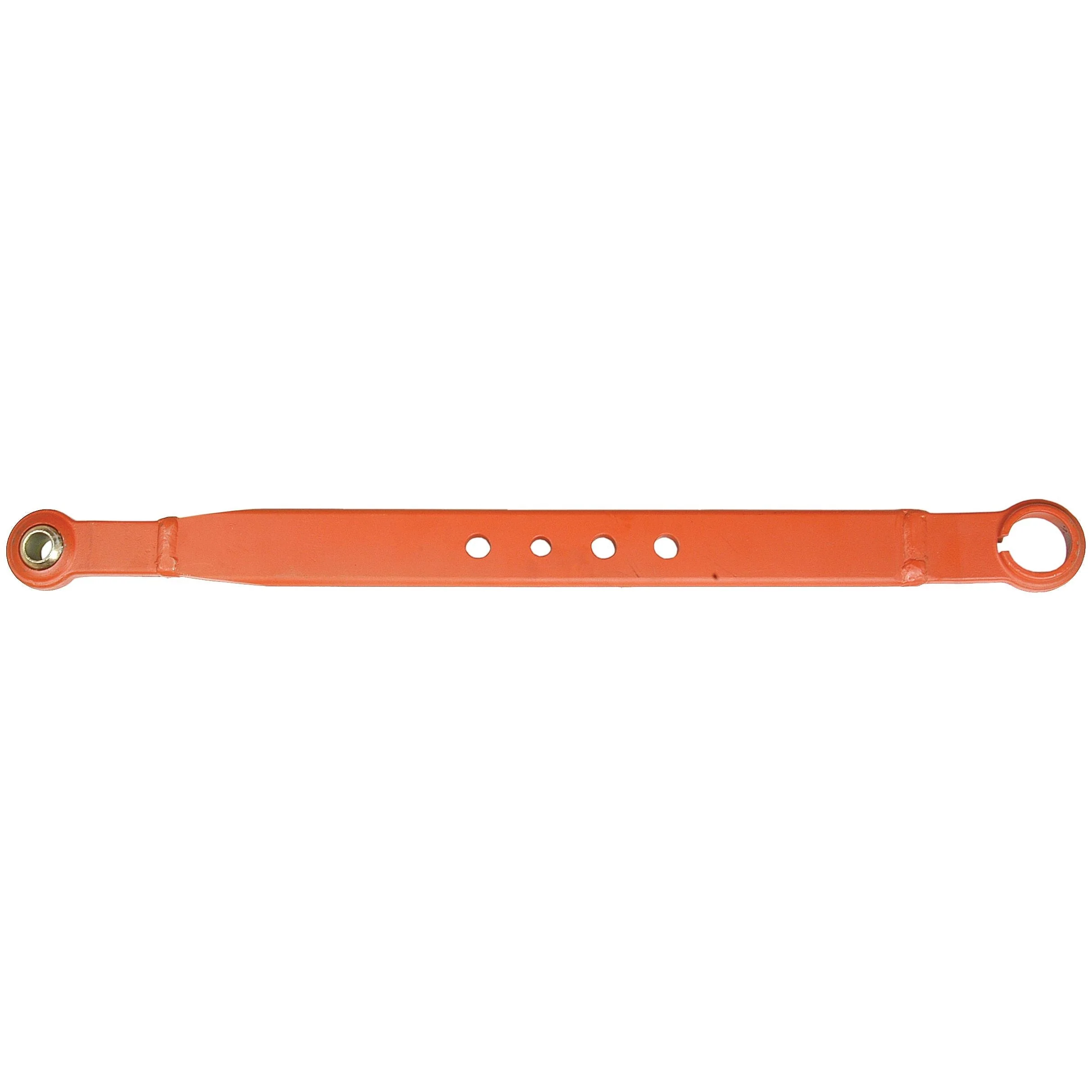

Lower Link Lift Arm - Ball Ø 22mm - Open Socket - RH & LH | Sparex Part No.S.15177

This high-quality Lower Link Lift Arm is a Sparex part, designed for use with a variety of agricultural machinery. It features a ball diameter of 22mm, an open socket design, and is suitable for both right-hand and left-hand applications. This arm is made from durable materials and is built to last.

Product Specifications

• Ball Bore Ø (ins): 7/8
• Ball Bore Ø (mm): 22
• Brand: Spenco
• Category: 1/1
• Colour: Red Oxide
• End Fittings A: Ball Ø 22mm
• End Fittings B: Open Socket
• erp_hazardous: No
• Finish: Matt
• Fitting: RH & LH
• Hole centres (mm): 51
• Hole Centres Ins: 2
• Hole Ø (ins): 3x25/32 & 11/16
• Hole Ø (mm): 3x20 & 17
• Length (ins): 31 29/32
• Length (mm): 810
• Notes: Link Arm Assembly use: 1 x S.15177, 1 x S.1728, 1 x S.1730, For (Cat 2) Link Arm Assembly use, 1 x S.15177, 1 x S.1729, 1 x S.1730
• Number of holes: 4
• Related products: 1728, 1729, 1730
• Tariff Code:7319909000
• Thickness (ins): 5/8
• Thickness (mm): 16
• Type: Open Socket
• Width (ins): 2 17/32
• Width (mm): 64

Suitable For

This lift arm is compatible with the following models:

Ford / New Holland

• DEXTA
• SUPER DEXTA

Massey Ferguson

• 133
• 135
• 135 GAS / 135 PETROL
• 140
• 148
• 152
• 35
• 35 GAS / 35 PETROL
• 35X
• FE35

Manufacture Information

Ford / New Holland

• 960E555
• 957E555
• 81717217

Landini

• 1884725M91
• 1869219M1
• 1884724M91
• 1869218M1
• 886428M1
• 886431M91
• 886433M92
• 890105M92
• 886430M91
• 886431M92
• 882697M91
• 882698M91
• 882698M92

Massey Ferguson

• 182632M91
• 882697M91
• 882698M91
• 882698M92
• 886 431M92
• 886431V92
• 886432M92
• 886433M92
• 882696M91
• 890091M92
• 886430M92
• 886431M92
• 886430M91
• 886431M91
• 890105M92
• 1884724M91
• 1869218M1
• 1884725M91
• 191114M91
• 191114V91

Order your Lower Link Lift Arm today and keep your agricultural machinery running smoothly!
