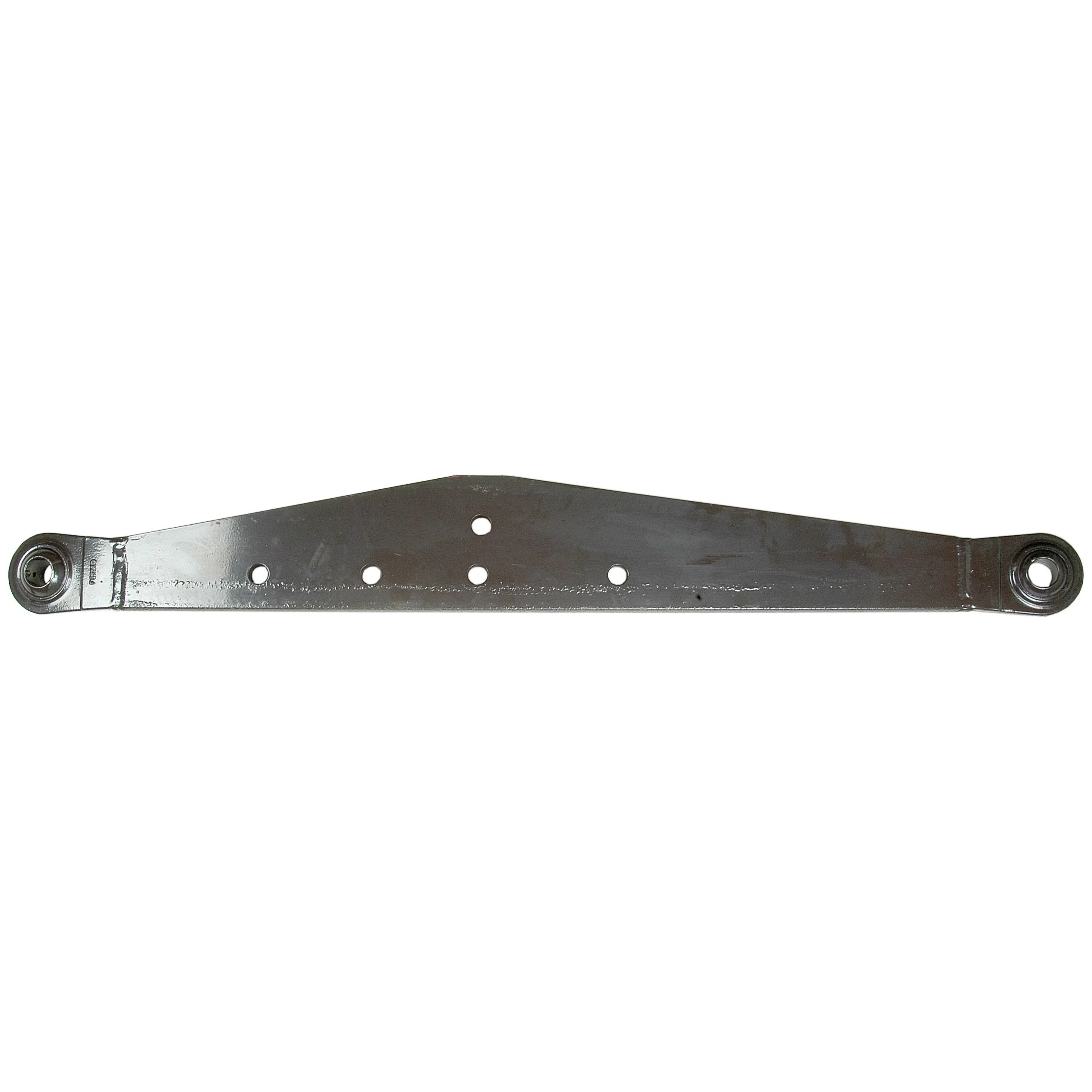

Lower Link Lift Arm - Ball Ø 28mm - RH | Sparex Part No. S.41005

Upgrade your agricultural machinery with the Lower Link Lift Arm from Sparex. Designed for durability and performance, this lift arm features a robust construction with the following specifications:

Product Specifications

• Length: 1020 mm (40 5/32 in)
• Thickness: 20 mm (25/32 in)
• Width: 140 mm (5 17/32 in)
• Number of Holes: 3
• Hole Diameter: 19 mm (3/4 in)
• Hole Centres: 141 mm, 108 mm, 114 mm, 39 mm (5 35/64 in, 4 1/4 in, 4 31/64 in, 1 17/32 in)
• Ball Bore Diameter: 28 mm (1 1/8 in)
• End Fittings: Ball Ø 28 mm (both ends)
• Fitting Type: Right Hand (RH)
• Colour: Black
• Tariff Code: 7319909000

Compatibility Information

This lift arm is compatible with a range of models, including:

• Massey Ferguson: 265, 275, 285 (FR), 290, 298, 362, 365, 372, 375, 375E BRAZILIAN, 382, 390, 390E BRAZILIAN, 390T, 398, 399, 575, 590, 675, 690, 698, 698T, 699
• TAFE: 8504

Manufacturer Information

OEM fitment for:

• Landini: 1660265M93, 1660262M92
• Massey Ferguson: 1660262M93, 1660262M91, 1660262V93, 1660262M92

Enhance the efficiency of your farming equipment with the reliable and high-quality Lower Link Lift Arm from Sparex. Order yours today!
